Delivery Date:
06/16/2020
Department Name:
Highland Heights Fire Department
Department City / State:
Highland Heights, OH

WHEELBASE: 226”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 35’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

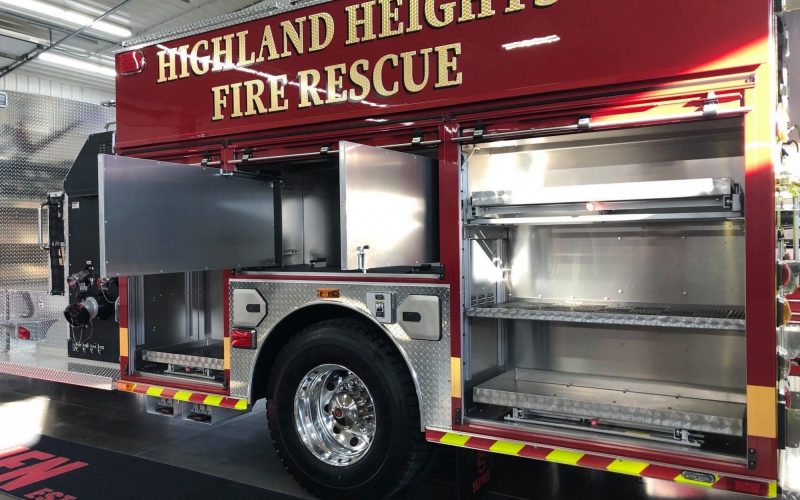

  • AMDOR Roll-Up Compartment Doors
  • 349 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof)
  • Enclosed ladder chute
  • Body: S6 – Alum 43/53

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • Brigade Camera System
  • SmartPower 10KW Generator
  • FR Spectra LED Brow Light
  • Whelen Freedom 72” LED Lightbar
  • Whelen M9 LED Scene Lights
  • Whelen M9 LED Red Lights
  • Whelen 600 LED Red Lights
  • FR Spectra 240V LED Telelights
