Delivery Date:
06/29/2020
Department Name:
Redford Township Fire Rescue
Department City / State:
Redford, MI
Truck Type:

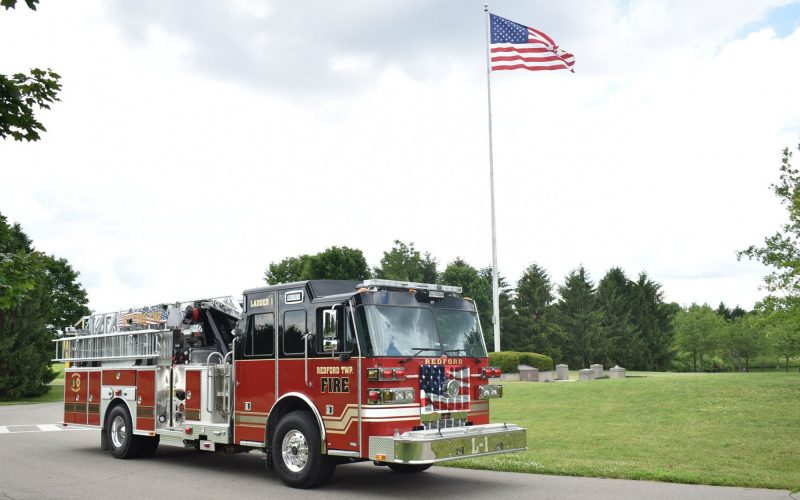

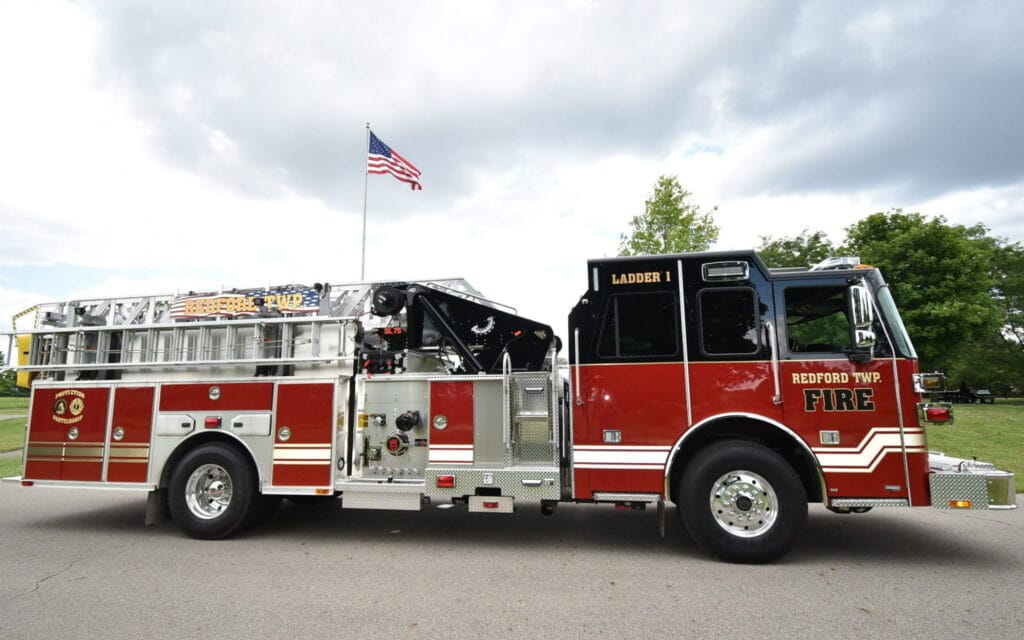

Sutphen Corporation – HS #6674

Dealer – Apollo Fire Equipment Company

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – ½”

TRAVEL LENGTH: 41’ – 0½”

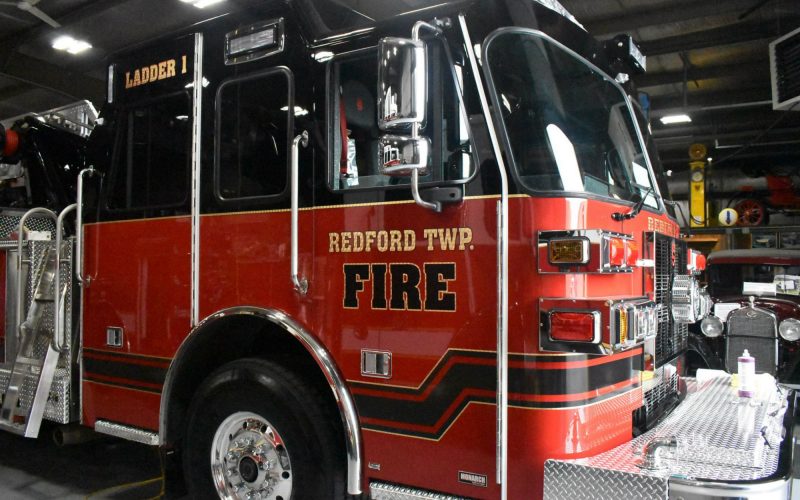

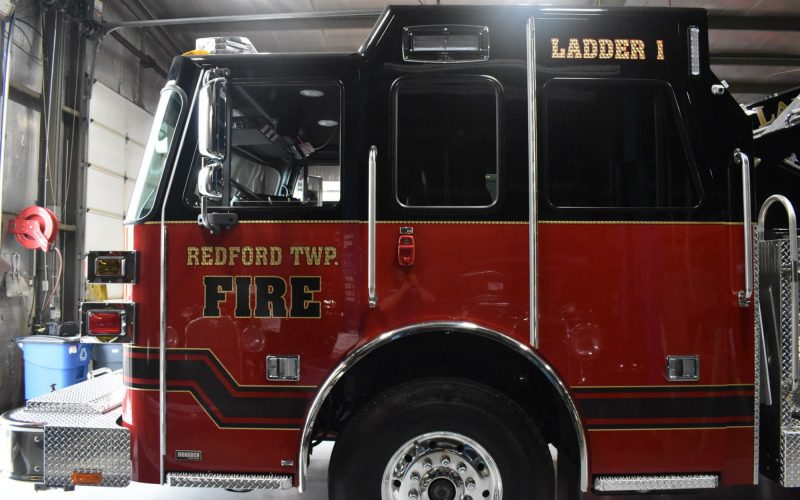

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left, (1) 1 ½” Front Bumper,
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank

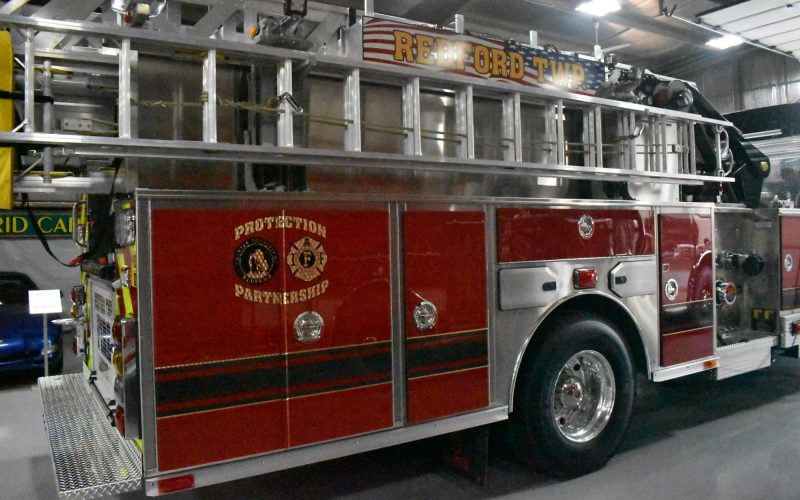

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Slam Doors & AMDOR Roll-Up Compartment Doors
  • 192.75 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 35’ 3-Section & 16’ Roof & 10’ Folding)
  • Body: SAA – 4; Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • 7 Bottle Compartments
  • Brigade, Backeye 360 Camera System
  • SmartPower 6KW Generator
  • Whelen PFH2 12v LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen M9 LED Scene Lights
  • Whelen MCFLED LED Beacons
  • Whelen PFH2 LED Scene Lights
  • Firetech LED Work Lights
