Delivery Date:
01/12/2022
Department Name:
Hardin County ESD #2
Department City / State:
Lumberton, TX

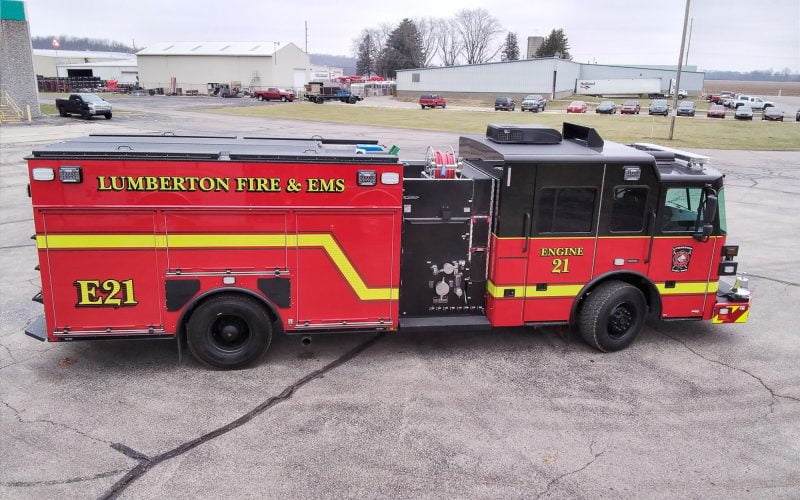

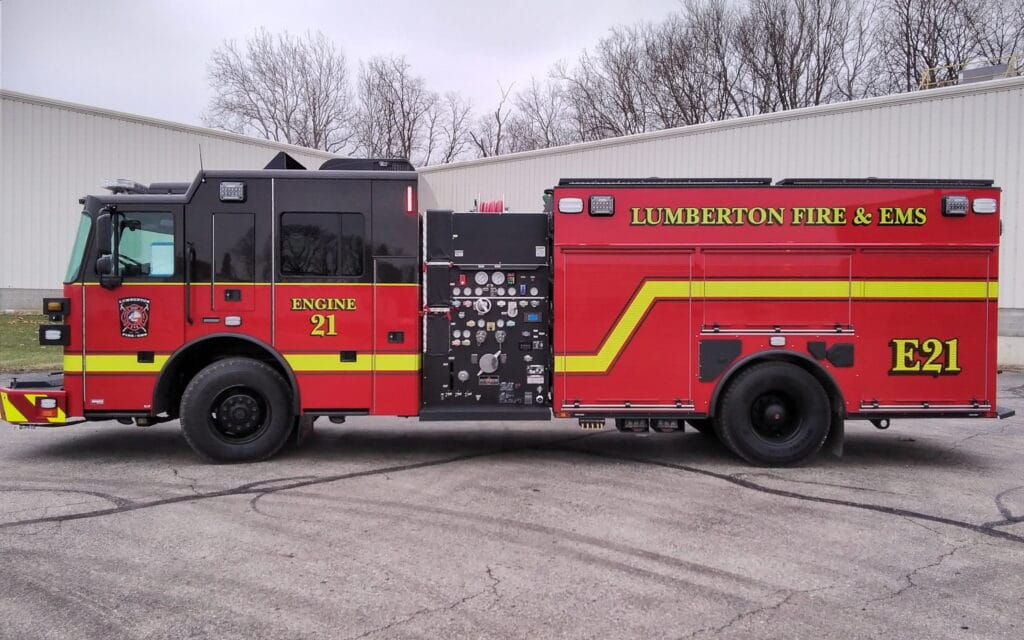

Sutphen Corporation – HS #6966

Dealer – Texas Fire Apparatus

WHEELBASE: 215”

TRAVEL HEIGHT: 10’ – 8”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • XS QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½”
  • Speedlays: (2) 2” w/ Swivels & Poly Lift-Out Trays
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale SmartFoam 2.1A

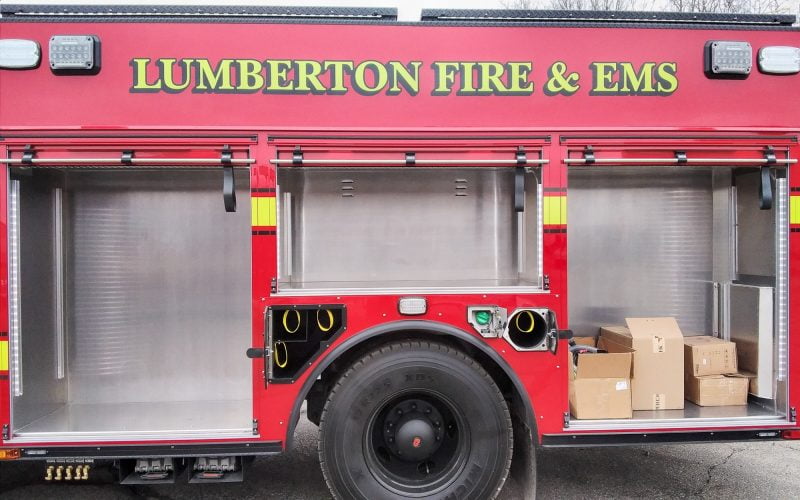

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Compartment Doors, Satin Finish
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Ladder Chute w/ Suction Hose Storage
  • Body: G9 – Aluminum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Intercom System: Wireless, SetCom Liberatormax, Single Radio, 4 Position
  • Camera System: Safety Vision 5 Camera 360, Camera System w/ DVR Recorder
  • Whelen Freedom LED Lightbar
  • HiViz 72” Brow Light
  • LED Roto Ray
  • FireTech Guardian Elite
