Delivery Date:
04/12/2019
Department Name:
Follansbee V.F.D
Department City / State:
Follansbee, WV

WHEEL BASE: 201”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 33’ – 5”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS4000

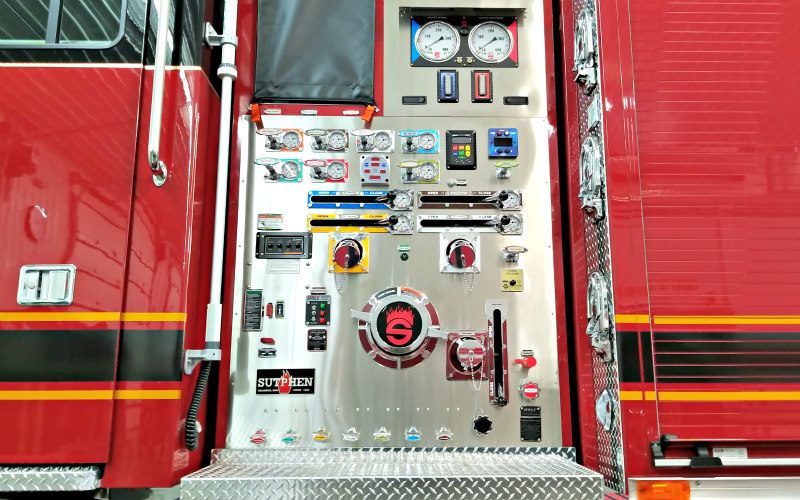

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 250-Gallon Foam Tank
  • Foam Pro Model 3012
  • Monitor: Akron Model #3340 Deck Master Electric Monitor

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • 307” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • Rear Vision Camera System
  • Federal Q2B Siren, Flush Grille Mount
  • Whelen Freedom (12) LED Lightbar
  • FRC Focus 750W Tele Lights
  • Hannay Electric Cord Reel, 150’ (2)
  • Command Light KL 475 Light Tower
  • Traffic Advisor, Whelen LED TAL65 36”
  • 10KW Smart Power Generator
  • 24” Polished Stainless Steel Bumper Extension
