Delivery Date:
03/02/2022
Department Name:
Findlay Fire Department
Department City / State:
Findlay, Ohio
Truck Type:
Sutphen Corporation – HS #6939
Dealer – Herb Fire Equipment
WHEELBASE: 209 ½”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34′ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

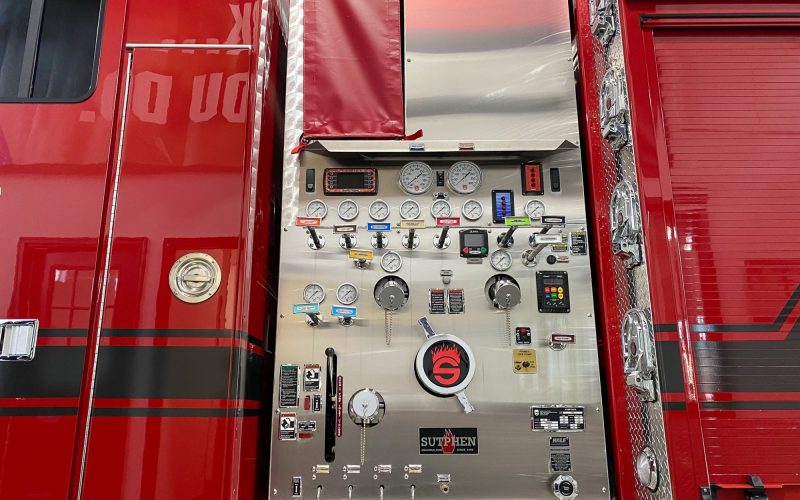

PUMP: Hale
- QMAX 2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 1 ½” Crosslay & (1) 2 ½” Crosslay with Swivels
- 750-Gallon Water Tank
- 30-Gallon Foam Tank

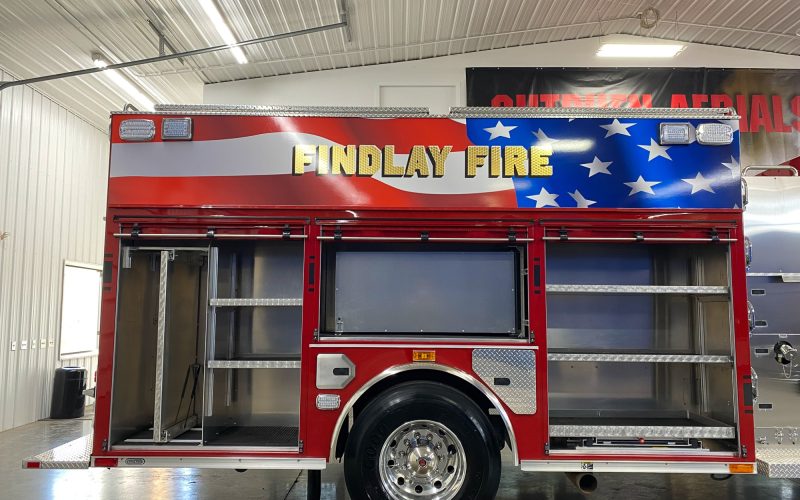

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Painted Roll-Up Compartment Doors

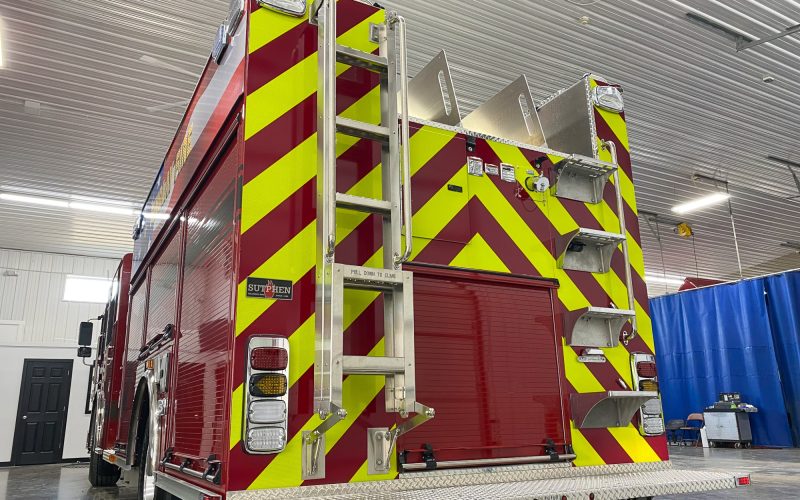

- Alco-Lite Ladder Compliment: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Over 400 cu. ft. Total Compartment Space
- Body: S8 – Alum 56/53 LAD Thru Tank & DBL Hatch
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade Two Camera (Wired)
- Whelen Freedom IV 72” Led Lightbar
- FRC Spectra LED 12V Brow Light
- FRC Spectra 12V Scene Lights
- FRC Spectra 12V LED Scene Lights
- Whelen M9V2 Rear Warning Lights
