Delivery Date:
03/05/2022
Department Name:
Cocoa Beach Fire Department
Department City / State:
Cocoa Beach, FL

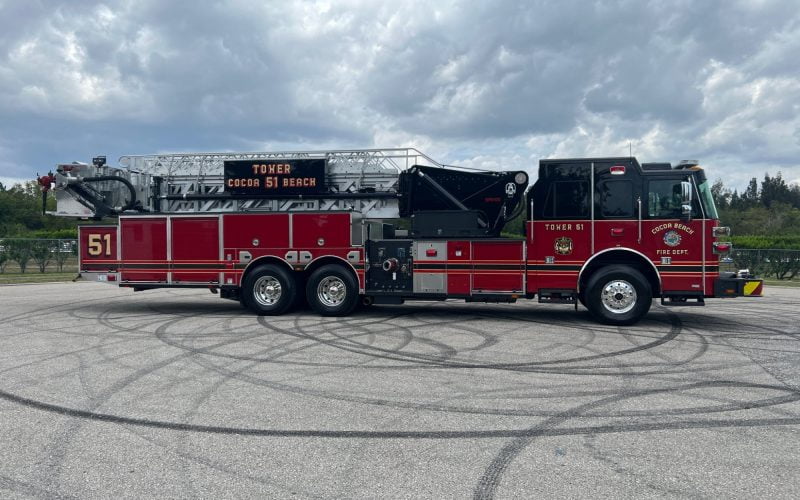

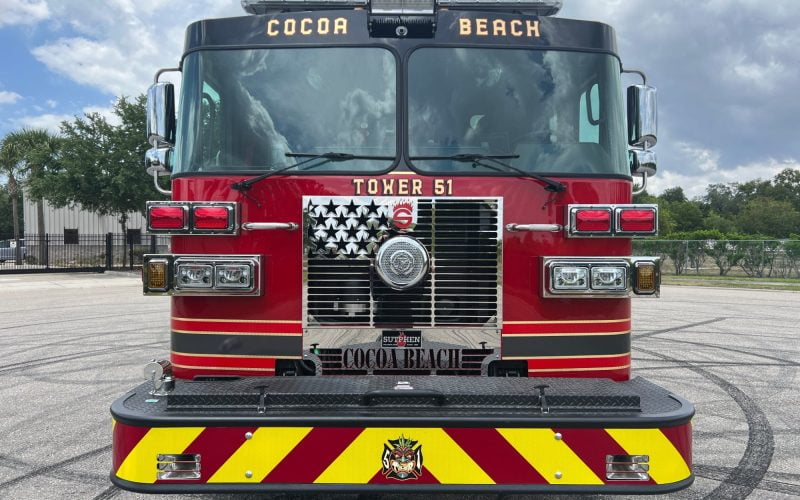

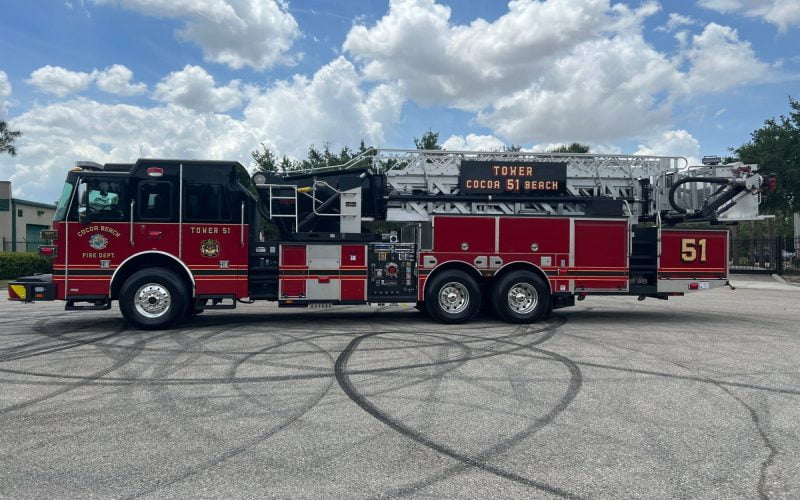

Truck Type:
Sutphen Corporation – HS #6911
Dealer – South Florida Emergency Vehicles
WHEELBASE: 236”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 47’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX – 2000 6” Suction, Single Stage Pump

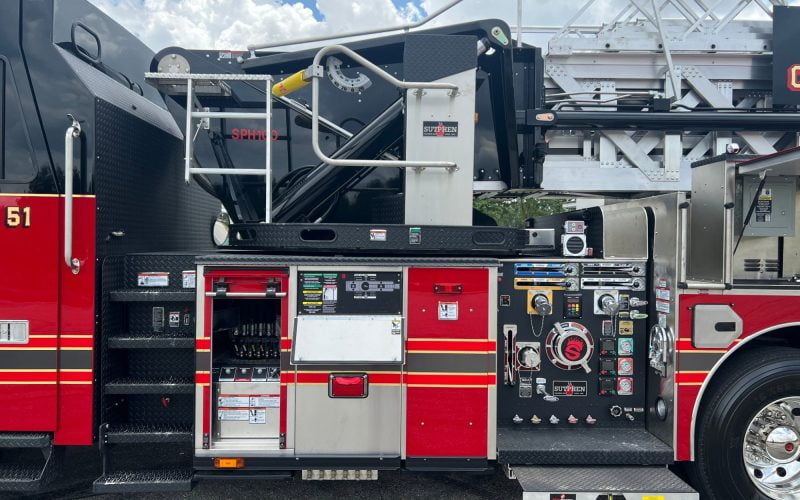

- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, 1) 2 ½” Front Bumper
- Crosslays: (1) 2 ½” Crosslay, (1) 2 ½” Swivel, (1) 2” Crosslays w/ 1 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- Huckbolted #304 Stainless Steel
- SPH Mixed Roll-Up and Hinged Compartment Doors
- Over 283 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: (1) 14’, (2) 16’, 24’ 2-section, 35’ 2-section & 10’ Folding
- Body: SPH-3, Left 56” H / Right 56” H
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade 360
- Intercom System” FRC ACT 3-Station
- Hannay Electric Cord Reel, 150’ (1)
- Whelen Freedom IV 72” LED Lightbar
- 12V Pioneer Brow Light
- 12V FireTech Scene Light
- 120V Pioneer Tele Lights
