Delivery Date:
02/15/2019
Department Name:
Ellington Fire Department
Department City / State:
Ellington, CT

WHEEL BASE: 198”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 33’-1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

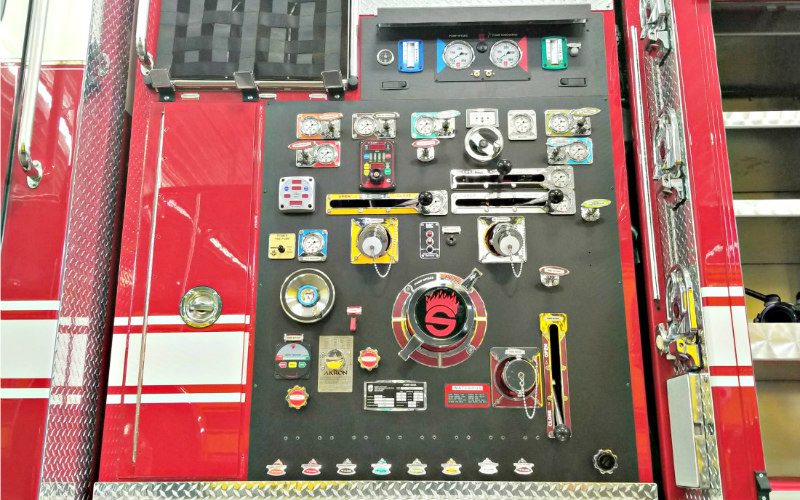

PUMP:                 Waterous

  • CSU-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Mixed ROM Roll-Up and Slam Doors
  • Over 257 cu. ft. Total Compartment Space
  • Duo-Safety (28’ 2-Section & 16’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Whelen LED, TAL65 36” Traffic Advisor
  • Safety Vision SV-CLCD0-70, Camera System
  • 24” Bumper
  • Federal Q2B Siren
  • Whelen PFP2, 12V LED Brow
  • Whelen Freedom IV LED Lightbar
  • GoLight 20204
  • Firetech 72” 12V LED Scene
