Delivery Date:
04/20/2021
Department Name:
Ellington Fire Department
Department City / State:
Ellington, CT
Truck Type:
Sutphen Corporation – HS #6582
Dealer – Shipman’s Fire Equipment
WHEELBASE: 196”
TRAVEL HEIGHT: 10’ – 2”
TRAVEL LENGTH: 32’ – 9”

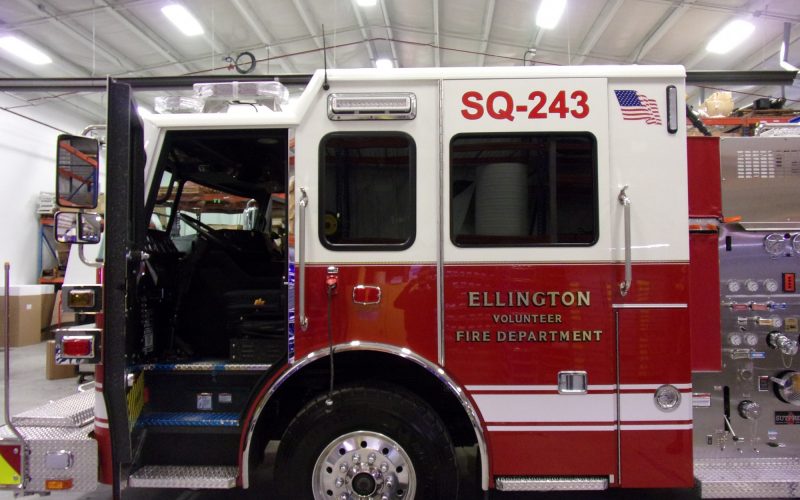

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof
- Four-Door, Six-Person Cab
- 10” Double Rails, Single Axle (50K PSI)
- Front Suspension 20,000 lbs.
- Rear suspension 27,000lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- XS QMAX-1500 Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ Swivel and Poly Lift-Out Trays
- Crosslay: (1) 2 ½”
- 1000-Gallon Water Tank
- 30 Gallon Foam Tank
- Foam System: Akron 125 GPM 3126 By-Pass w/ Flush

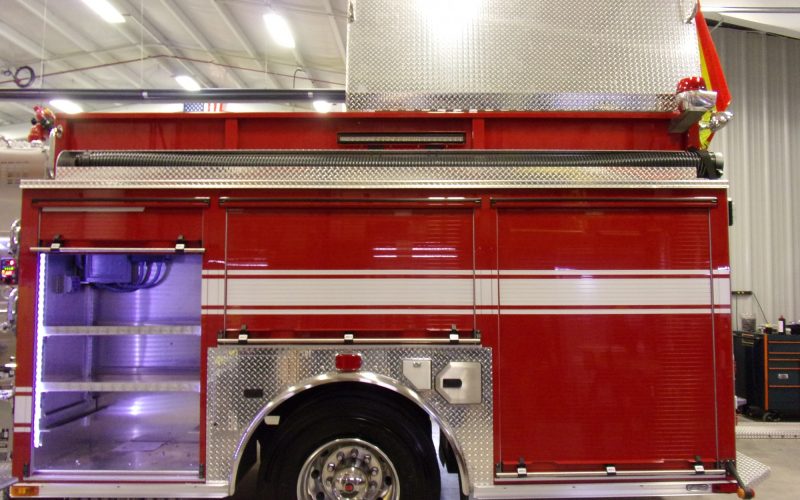

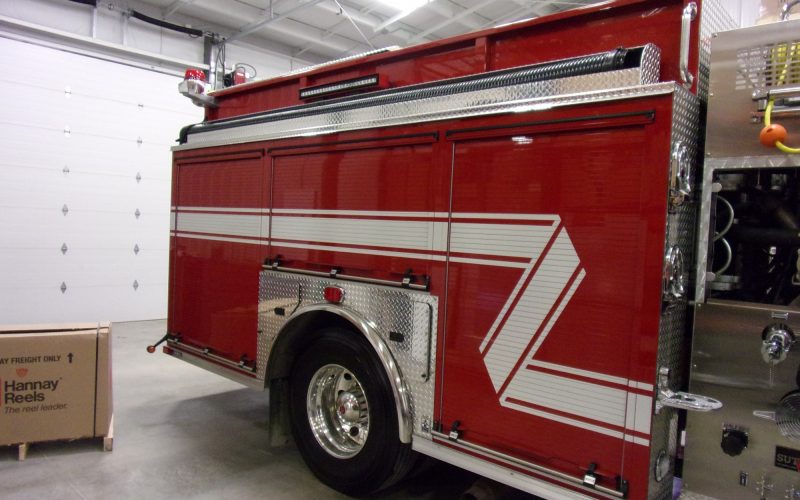

BODY: Sutphen
- 3/16 Extruded Aluminum
- ROM Roll-Up Compartment Doors Painted
- Over 220 cu. ft. Total Compartment Space
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:

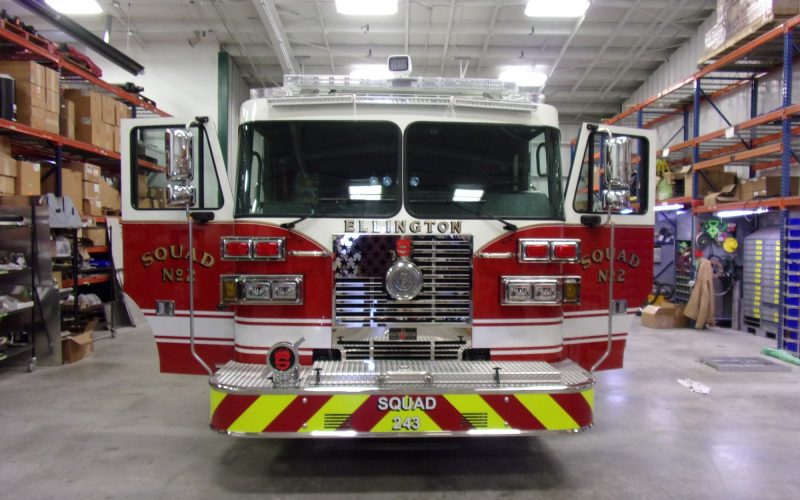

- 24” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power, 6KW
- Firetech 3-Piece 72” LED Brow Light
- Whelen Freedom LED Lightbar W/ (2) 21” Mini Freedom
- Remote Control Go-Light
- Hi-Viz Minis 31” Scene
- FireTech 12V LED Scene Light
