Delivery Date:
04/21/2021
Department Name:
City of Davenport
Department City / State:
Davenport, IA

Sutphen Corporation – HS #6918

Dealer – Jim Bartholomew

WHEELBASE: 192”

TRAVEL HEIGHT: 9’ – 9 ¾”

TRAVEL LENGTH: 31’-7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear suspension 24,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Waterous

  • CSU-1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe to Left Rear, (1) 2 ½” Valve 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
  • Speedlay: (2) 1 ½” w/ Lift out tray
  • 500-Gallon Water Tank

BODY:                   Sutphen

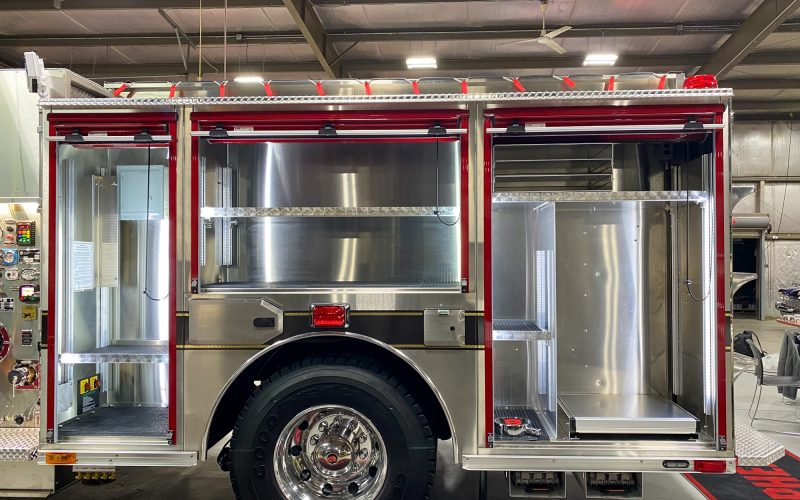

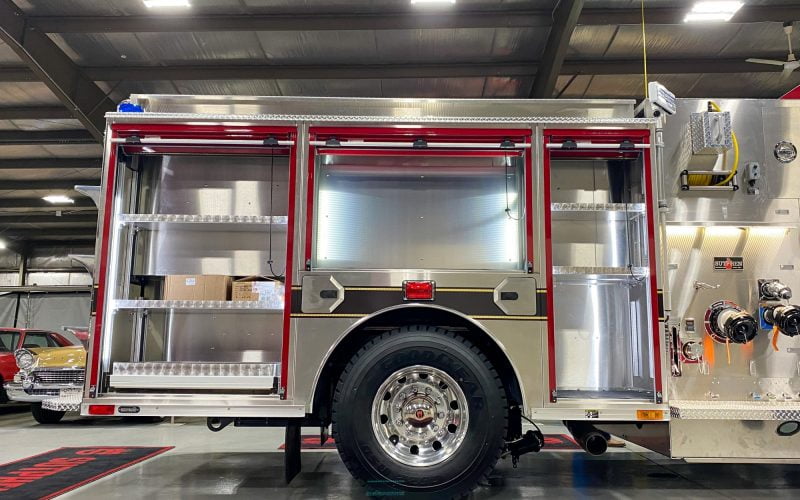

  • ROM Roll-up painted compartment doors
  • 6 cu. ft. Total Compartment Space
  • Body: Custom Pumper PS-02

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom 4 Lightbar
  • HIVIZ 3-Piece 12V LED Brow Light
  • FRC Spectra 12V LED Telescoping Scene Light
  • Hannay Cord Reel
  • Whelen TAL65 Traffic Advisor
