Delivery Date:
12/02/2020
Department Name:
City of Morenci Fire Department
Department City / State:
Morenci, MI

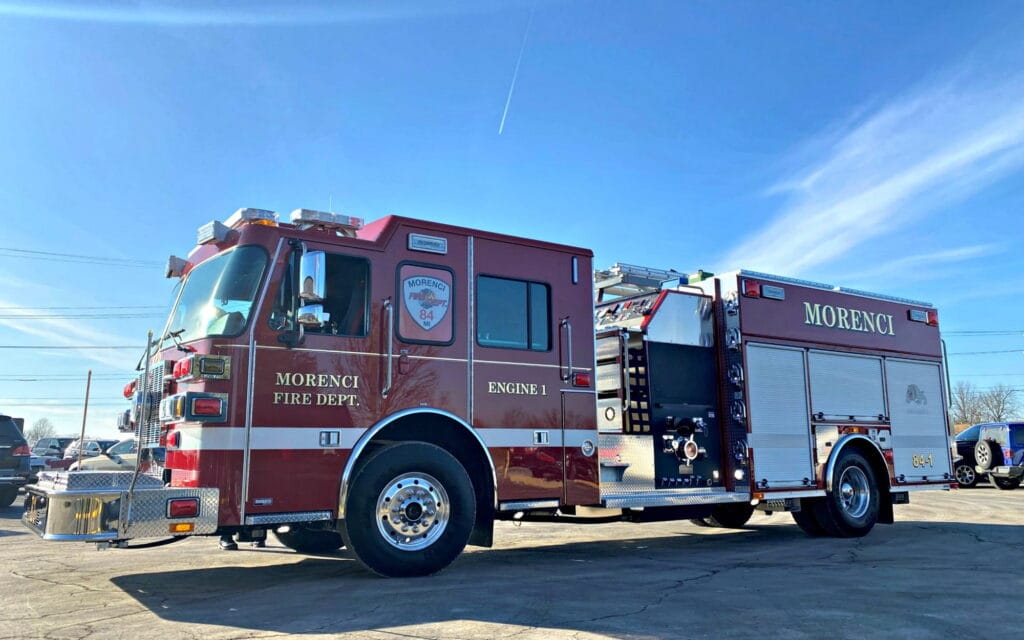

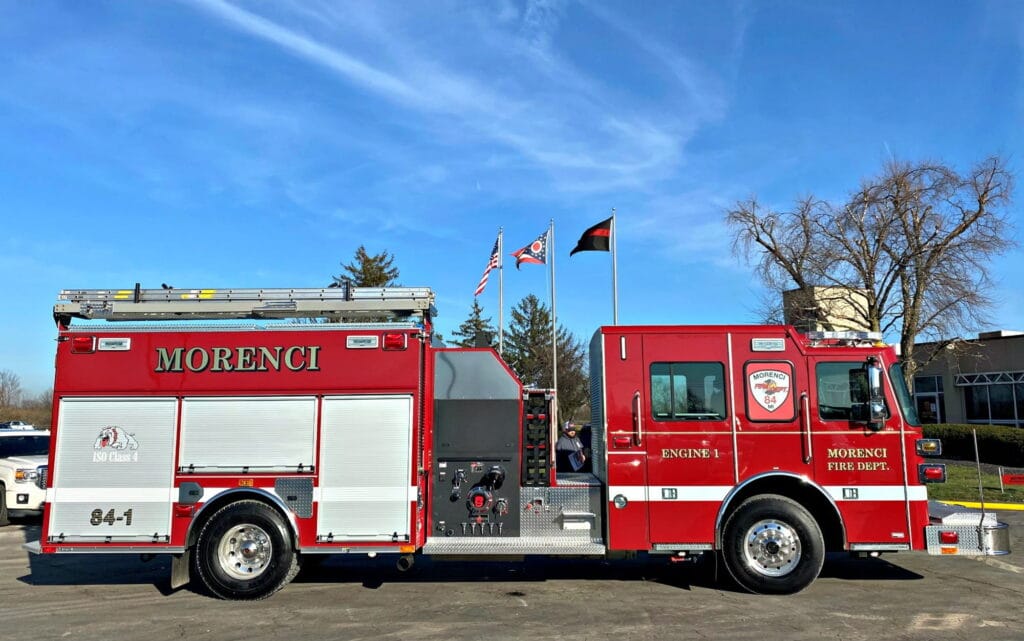

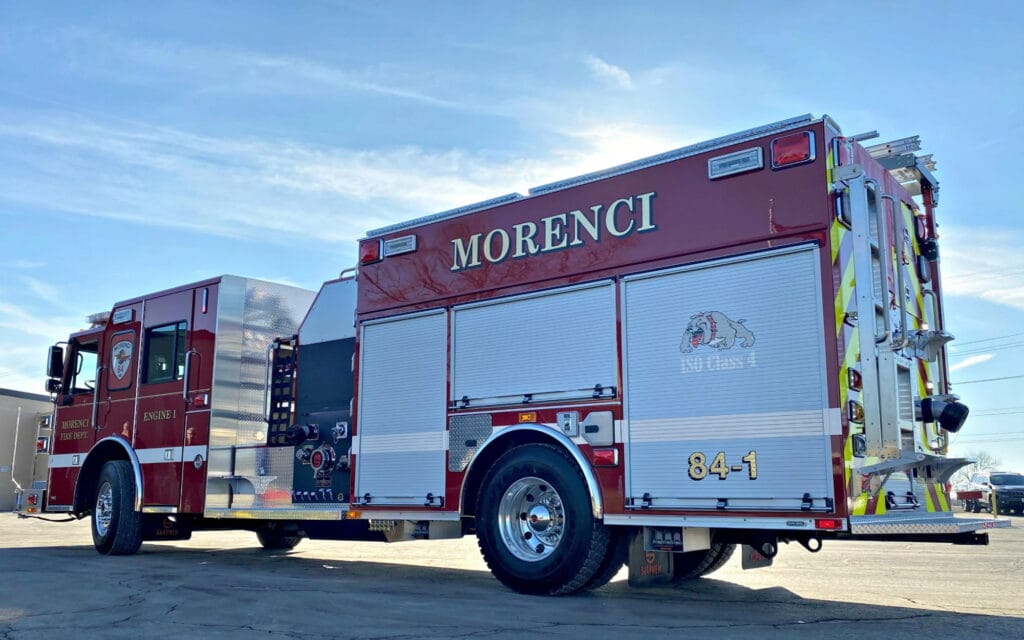

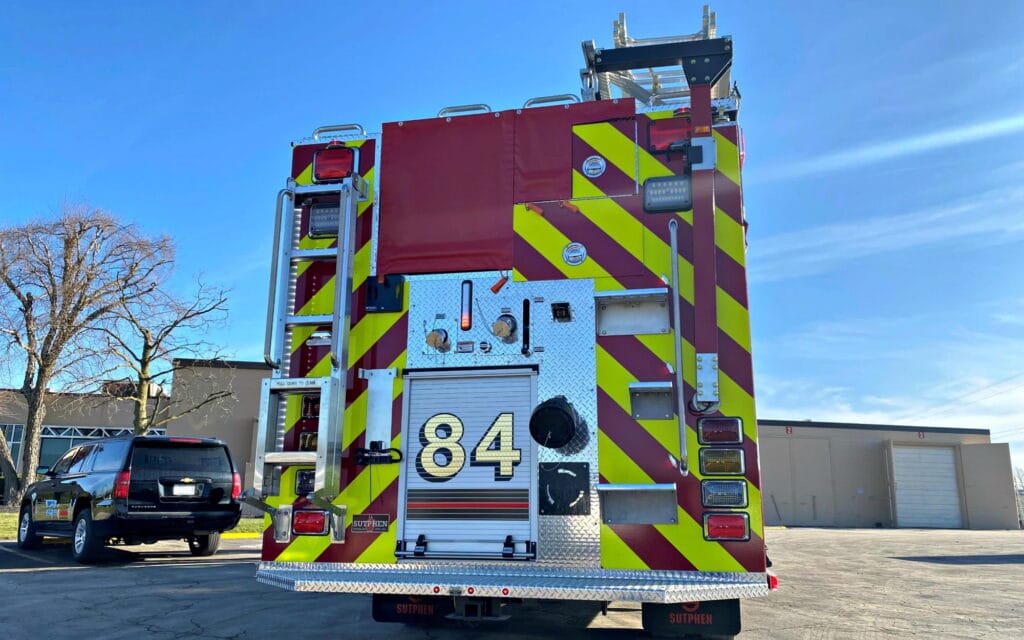

Sutphen Corporation – HS #6613

Dealer – Apollo Fire Equipment

WHEELBASE: 229”

TRAVEL HEIGHT: 11’ – 2”

TRAVEL LENGTH: 36’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

  • Four-Door, Eight-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

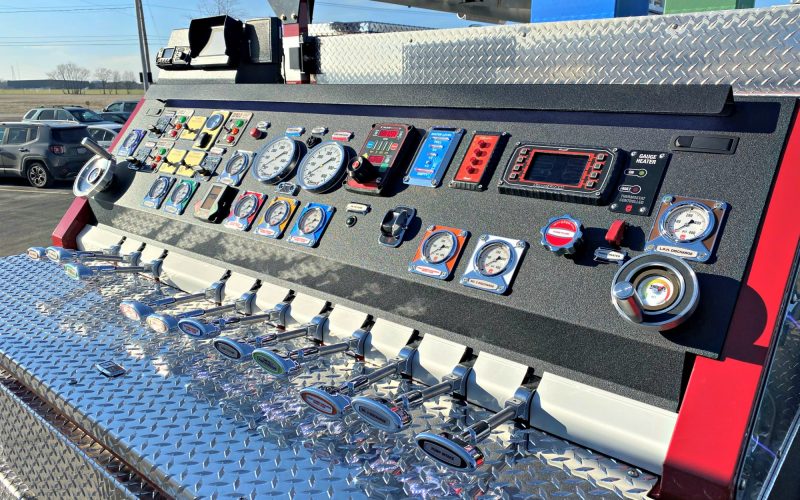

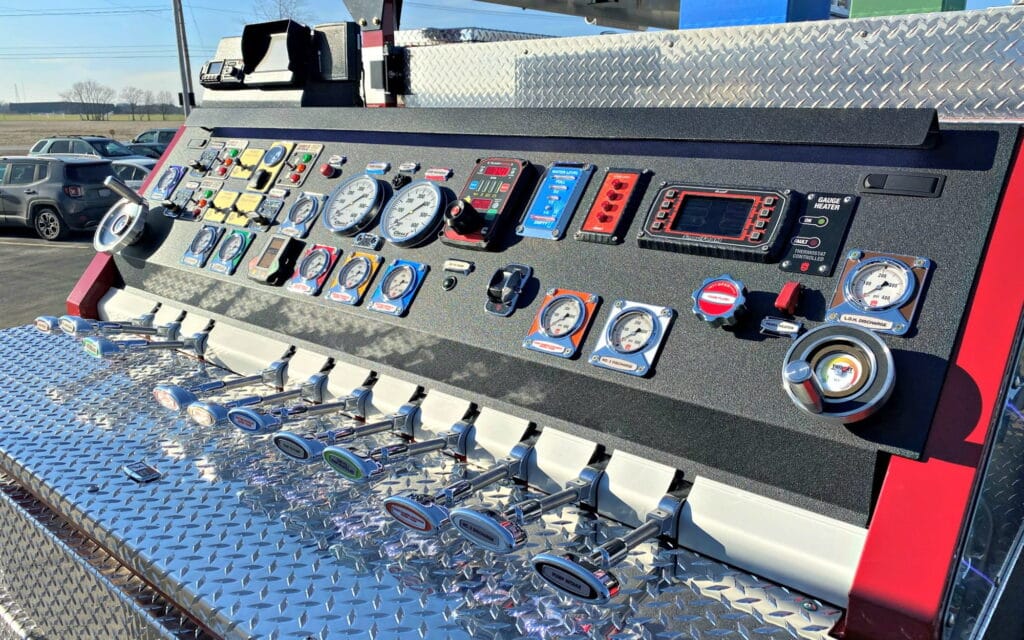

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 3” Left, (1) 2 ½” Left, 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” & (1) 2 ½” Speedlay
  • 1,000-Gallon Water Tank
  • 27-Gallon Foam Tank
  • Foam System: Hale Smartfoam 2.1 A

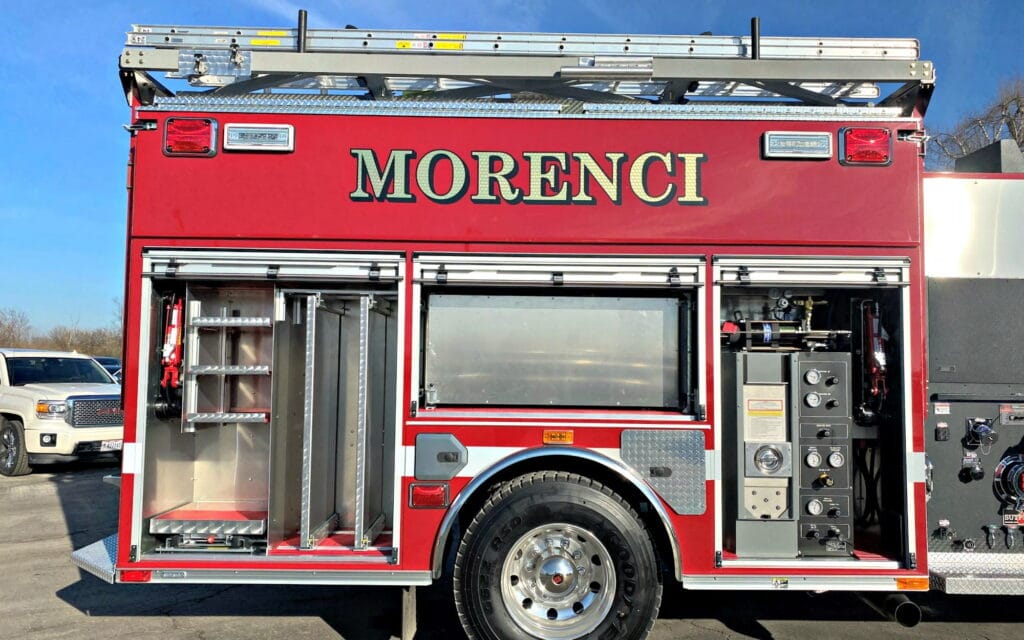

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors

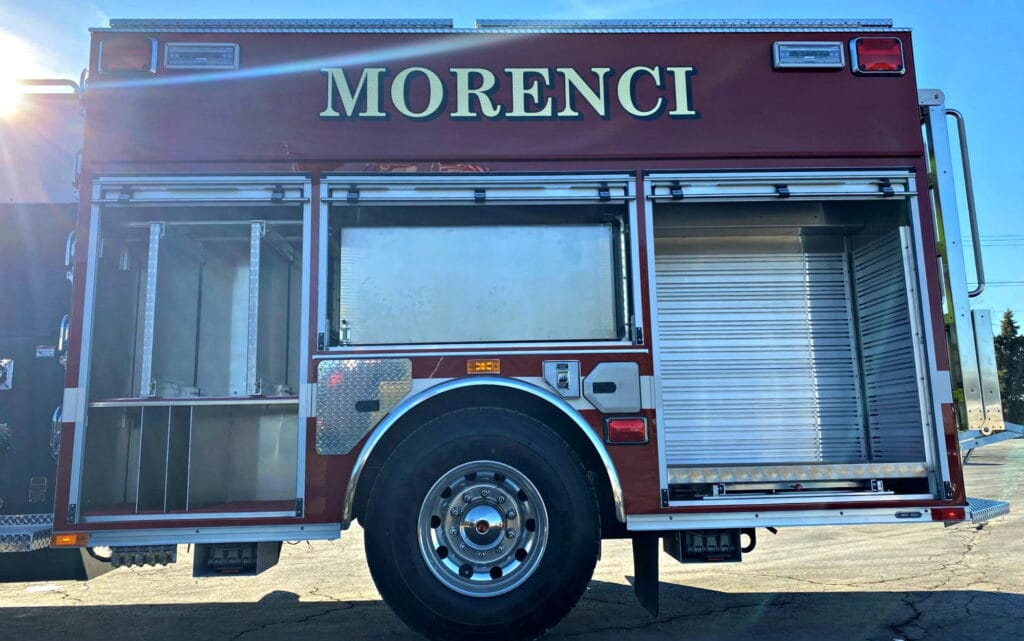

  • Over 385 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof)
  • Body: PA-17 – 43/53 Chute & Double Hatch

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • 6,000 PSI Air Bottle for Cascade System (2)
  • Zico Oals Dual Arm Hydraulic Ladder Rack
  • Duo-Safety 10’ Attic Ladder, Fresno 701
  • Whelen Freedom IV 72” LED Light Bar (14 Modules)
  • FR Spectra 12V Brow
  • FR Spectra 12V Scene
