Delivery Date:
12/20/2019
Department Name:
City of Mentor Fire Department
Department City / State:
Mentor, Ohio

Sutphen Corporation – HS #6411

Dealer – Herb Fire Equipment

WHEEL BASE: 173”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 30’ – 7”

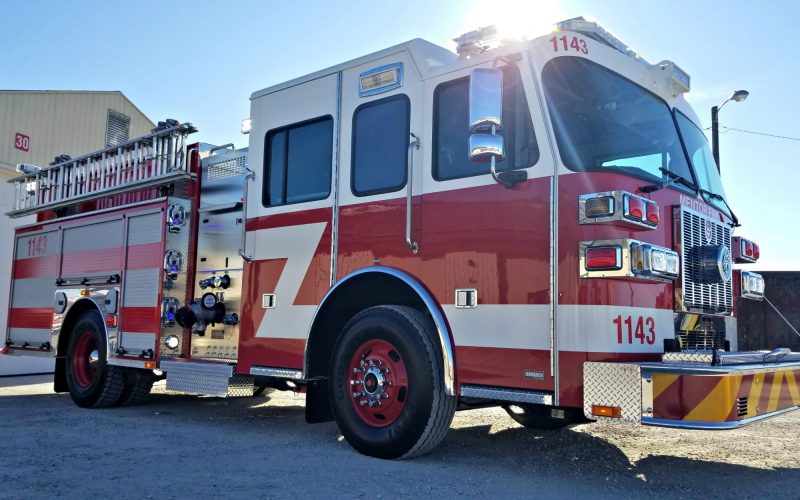

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

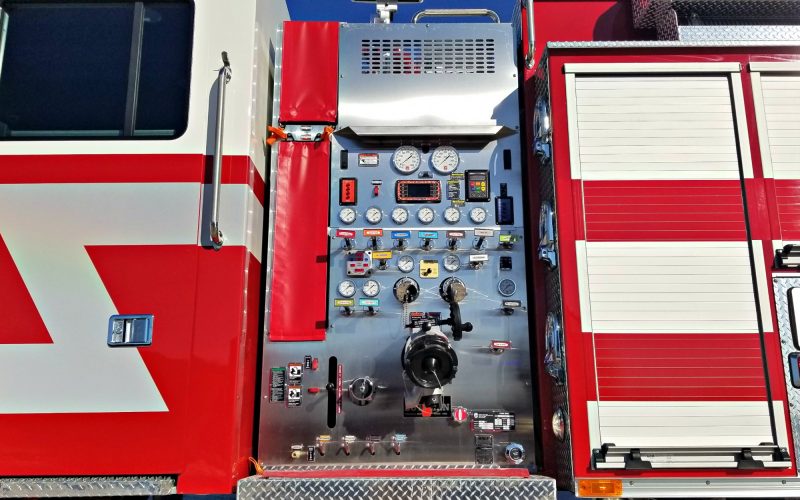

PUMP:                 Hale

  • XS QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed; (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • SmartFoam 2.1
  • Crosslay: (1) 2 ½” Crosslay & (2) 2” Speedlays w/ 1 ½” Swivel & Poly Lift-Out Tray

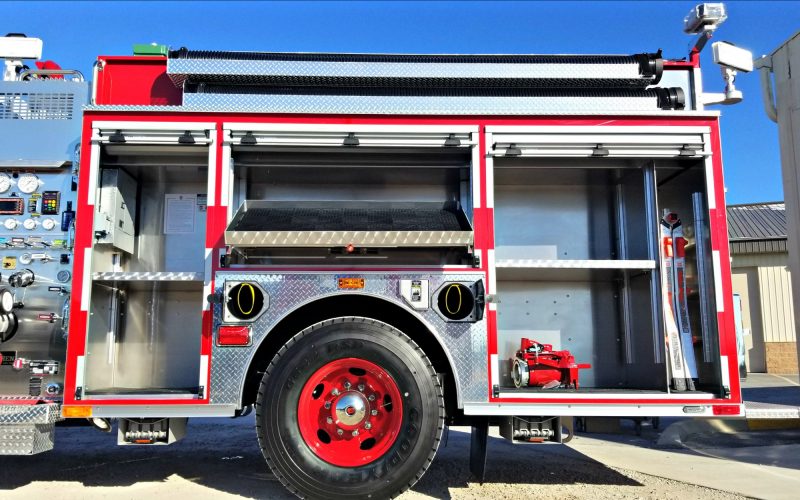

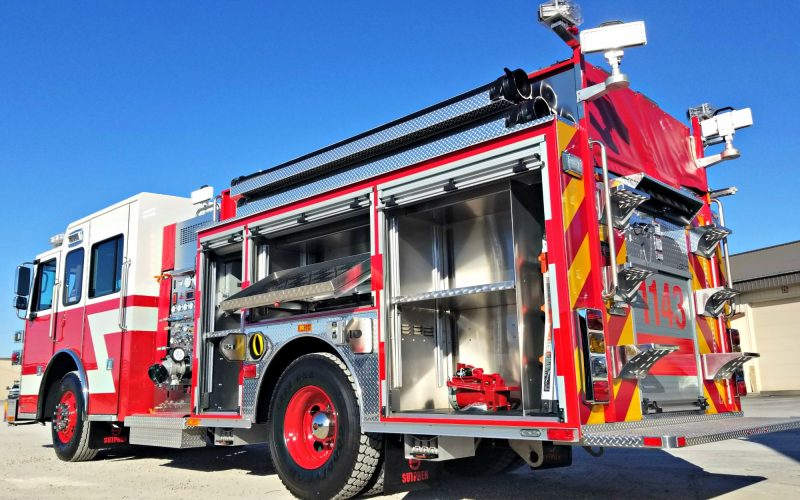

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 240 cu. ft. Total Compartment Space

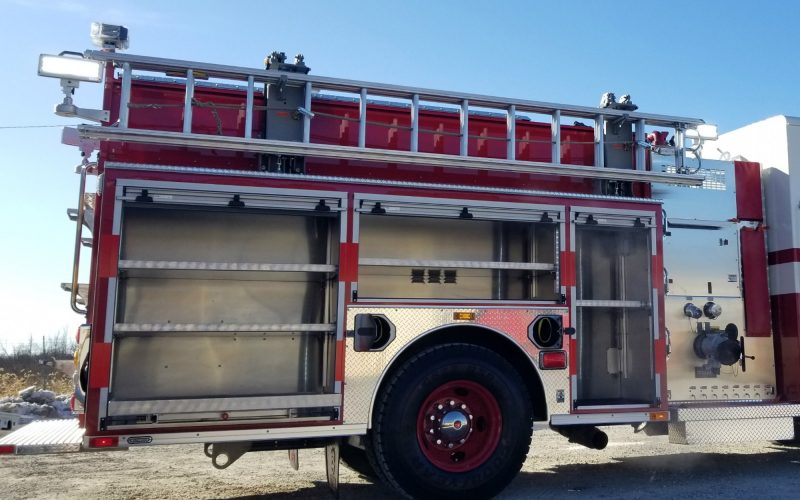

  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S4 – Alum 31/53 Elec Ladder Rack

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Backup Camera System
  • 10KW Smart Power Generator
  • Hannay Electric Cord Reel
  • Whelen PFH2 12V LED Brow
  • Whelen Freedom IV 72” (12) LED Lightbar
  • Whelen Freedom IV 21” (4) LED Lightbar
  • FRC Spectra 240V LED Tele
  • FRC Spectra 240V LED Scene
  • Whelen Traffic Advisor, TAL65 36”
