Delivery Date:
05/25/2019
Department Name:
Beverly Hills Public Safety
Department City / State:
Beverly Hills, MI

WHEEL BASE: 219”

TRAVEL HEIGHT: 10” – 2”

TRAVEL LENGTH: 34’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

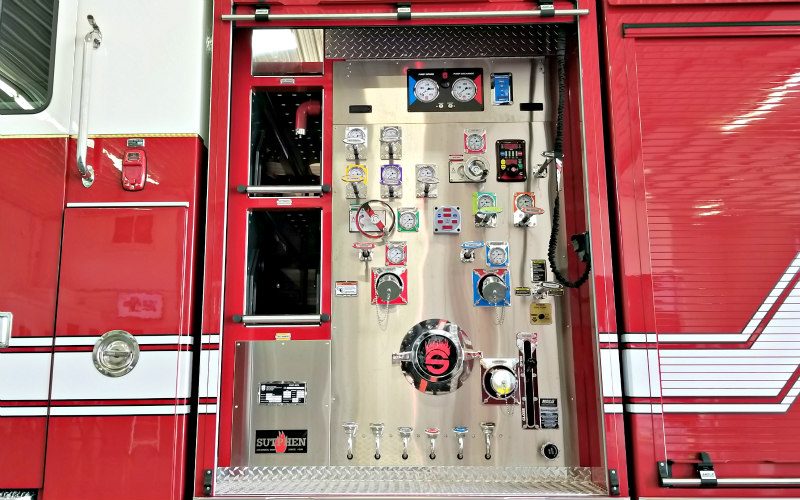

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (2) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 1 ½” Speedlays w/ Liftout Tray & (1) 2 ½” Crosslay
  • 1,000-Gallon Water Tank

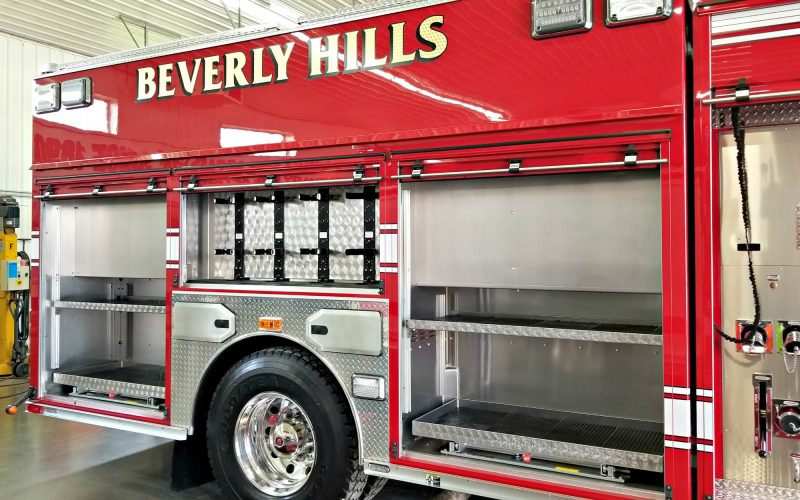

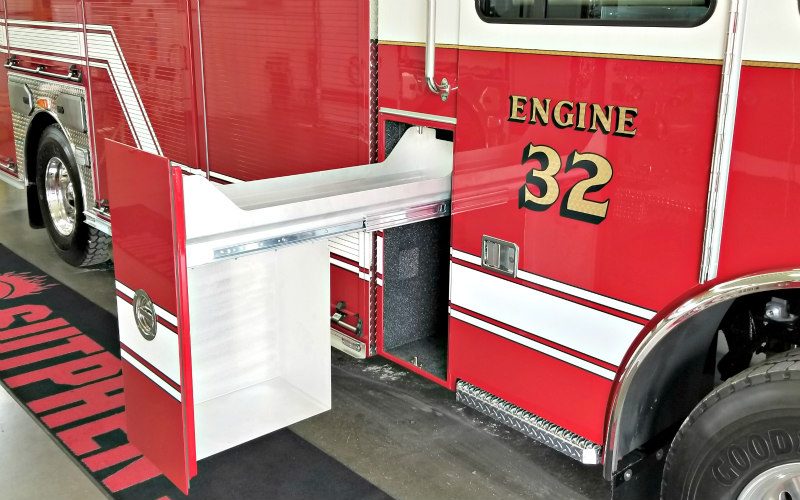

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 418 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 175’
  • Federal Q2B Siren, Pedestal Mount
  • Whelen Freedom (IV) LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen L31 LEDS
  • Interior Multispec Black Speckle Paint w/ Clean Cab FRB Board Black
