Delivery Date:
02/17/2020
Department Name:
Beaver Township Fire Department
Department City / State:
North Lima, OH

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smartfoam, Foam System

BODY:                  Sutphen

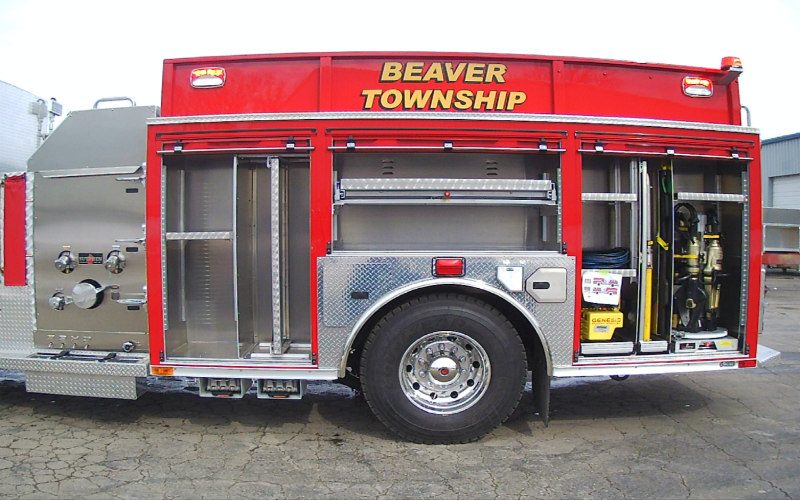

  • Amdor Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chutes
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Back-up Camera
  • Honda EB2000iA Portable Generator
  • Air Bottle Compartments (3)
  • FRC Spectra Brow Light
  • Whelen 600 Red LED Lights
  • Whelen Freedom LED Lightbar
  • Whelen M9V Red LED Warning/Scene Lights
