Department Name:
Barboursville Fire Department
Department City / State:
Barboursville, West Virginia



Sutphen Corporation

WHEEL BASE: 192”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 31’-4”

CHASSIS:

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails, (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

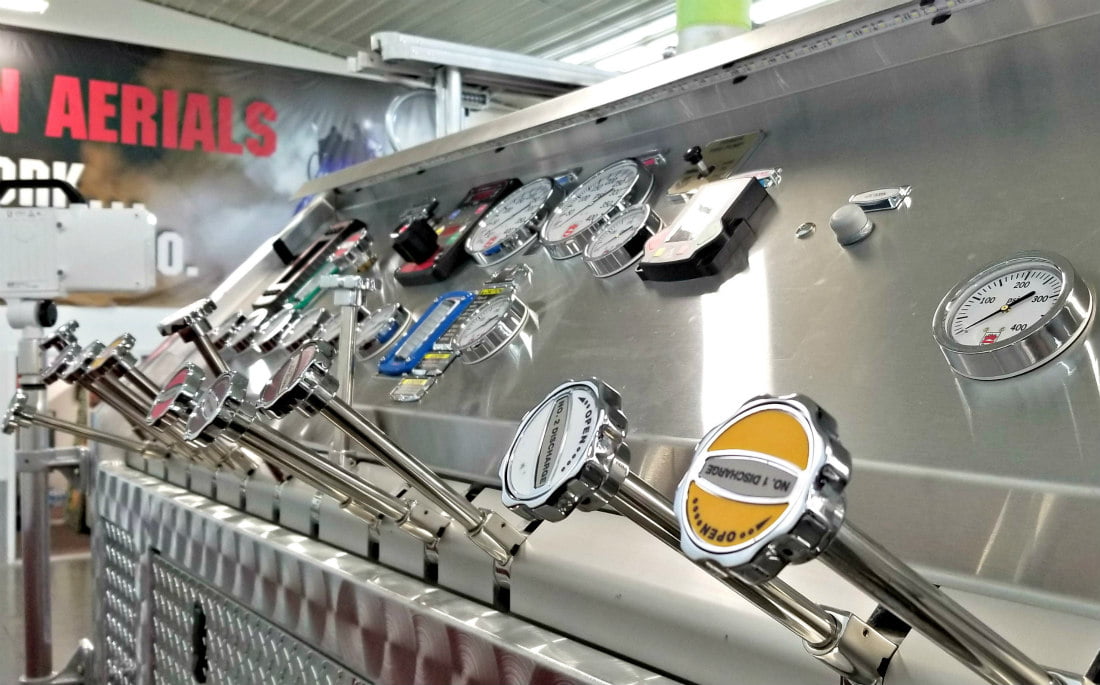

PUMP:                 Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Right of Main hosebed, 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2”, with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Door
  • 257 cu. ft. of Compartment Space
  • Duo-Safety 900A (24 2-Section & 775 DR-14 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • 18” Bumper Extension
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Roto-Ray Warning Light
  • Safety Vision SV-CLCD0-70, Camera System
  • Federal Q2B Siren
  • Whelen M9 LED Scene Lights
  • Traffic Advisor, Whelen LED, 36”
