Delivery Date:
11/24/2022
Department Name:

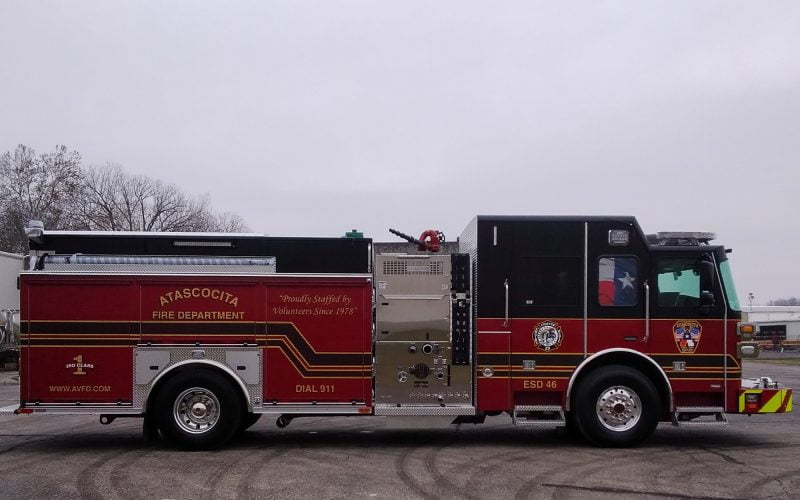

Atascocita Fire Department
Department City / State:
Humble, TX
Truck Type:
Sutphen Corporation – HS #7131-32
Dealer – Texas Fire Apparatus
WHEELBASE: 215”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 34′ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 15” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins X 12, 500HP
- Alternator: Delco-Remy 430 AMP
- Transmission: Allison Gen 5, EVS4000 w/ Retarder
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 5.0
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera System
- Deck Gun Monitor Akron 3423
- Hi-Viz 72” Brow Light
- Whelen Freedom LEDL Lightbar
- Whelen Traffic Advisor
- FireTech Guardian Elite Scene Light
- FireTech MB Double Stacked FT-MB 2.27-FT-B
- Whelen Freedom IV (2) 21” LED Light Bars
