Delivery Date:
09/26/2020
Department Name:
Ashland Fire Department
Department City / State:
Ashland, Ohio
Truck Type:
Sutphen Corporation – HS #6615
Dealer – Herb Fire
WHEELBASE: 197”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 33’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

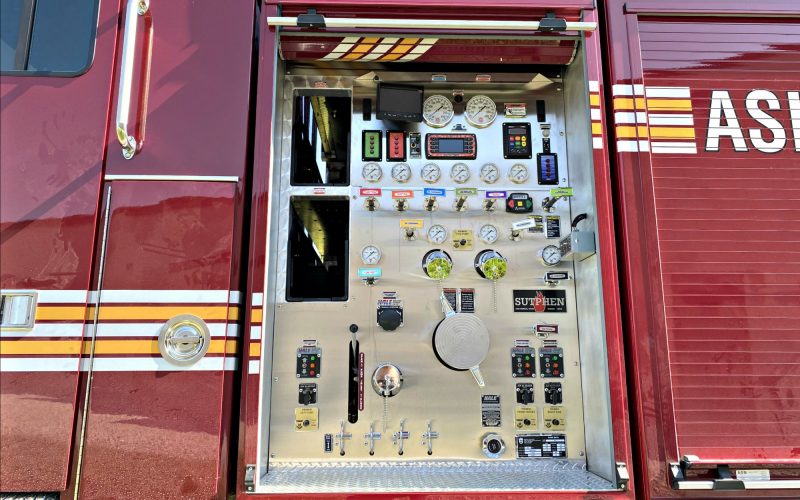

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
- Monitor, Akron Deckmaster 3440 Electric
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- 20-Gallon Foam Tank
- Hale Smartfoam 5.0 – Class A & B

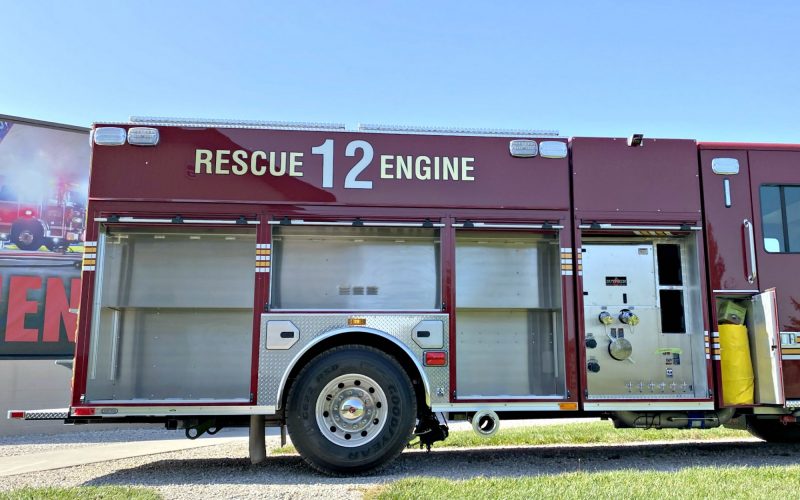

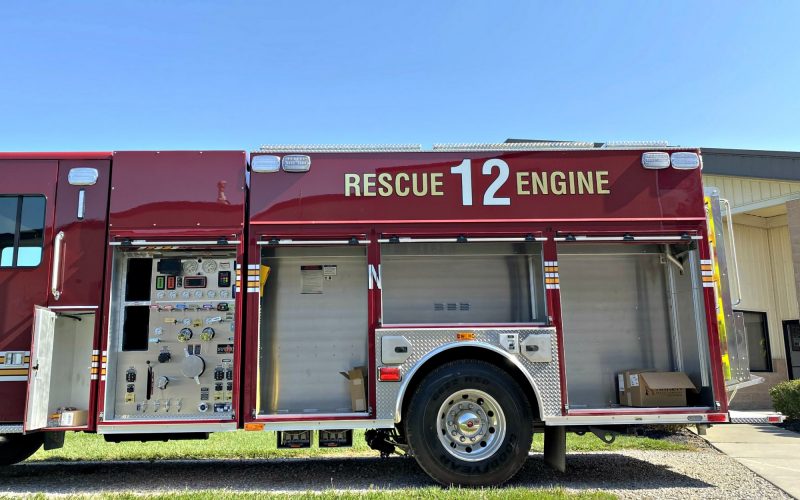

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Compartment Doors
- 349 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: S6 – Alum 43/53 Ladder Chute and Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Front Suction Pre-Connect
- Will-Burt Chief NS2.3-500 WB
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 12V LED Brow Light
- Whelen M9 Red LED
- Whelen M9 12V Scene Lights
- Roto-Ray Warning Light
