More Recent Deliveries

Delivery Date:
01/18/2019
Department Name:
Addison Fire Department
Department City / State:
Addison, TX

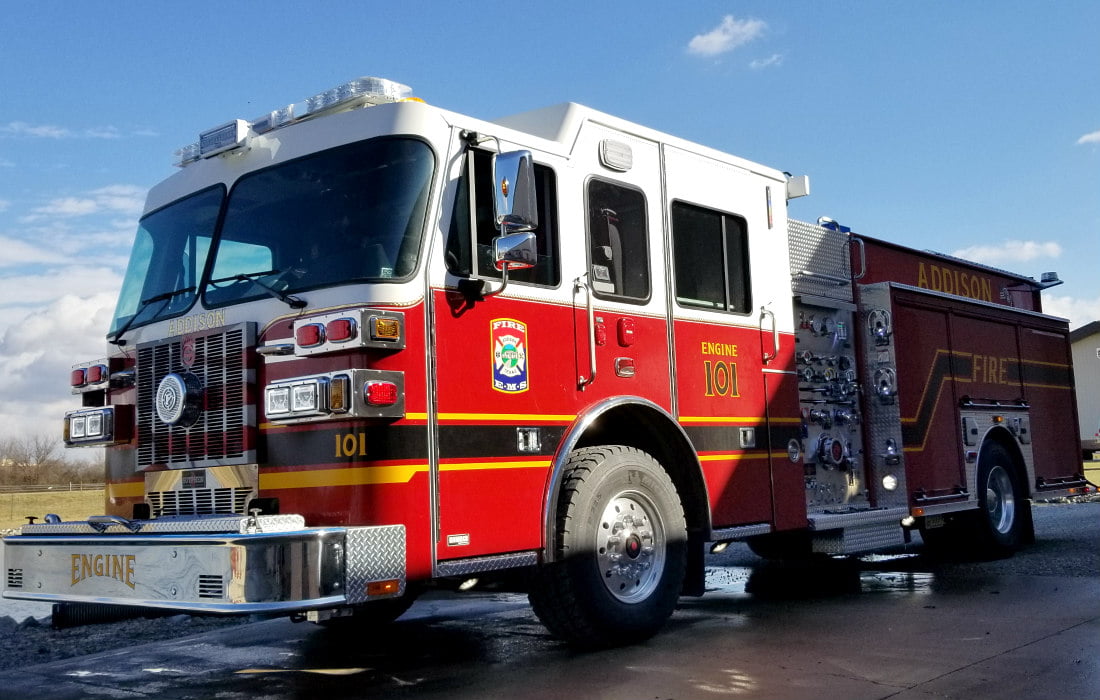

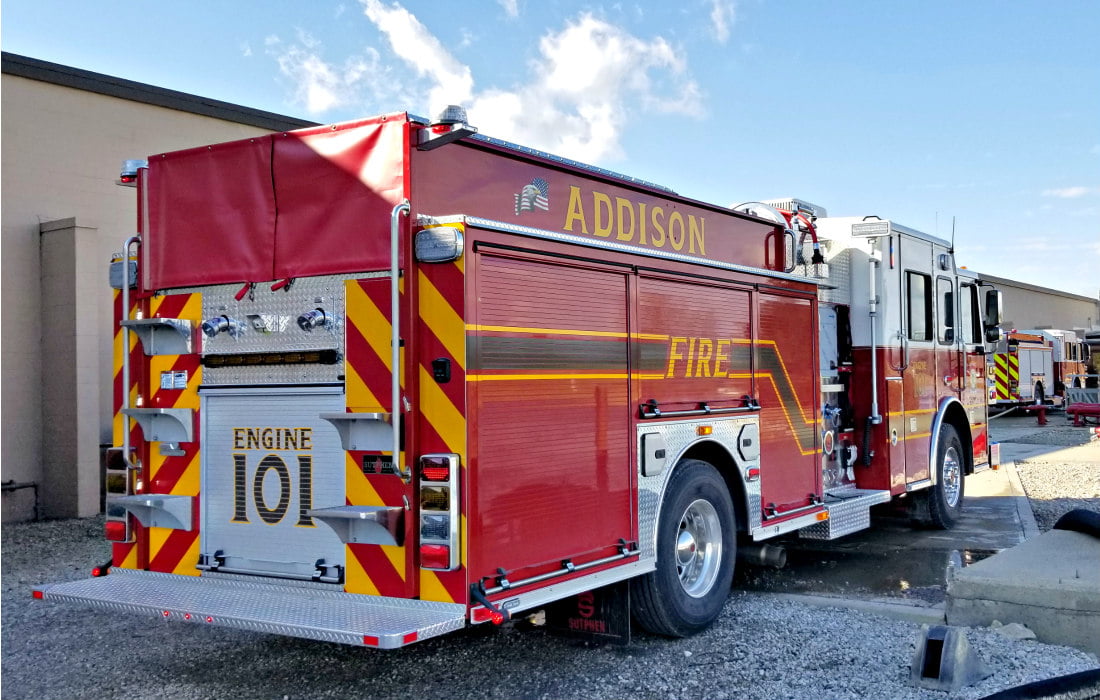

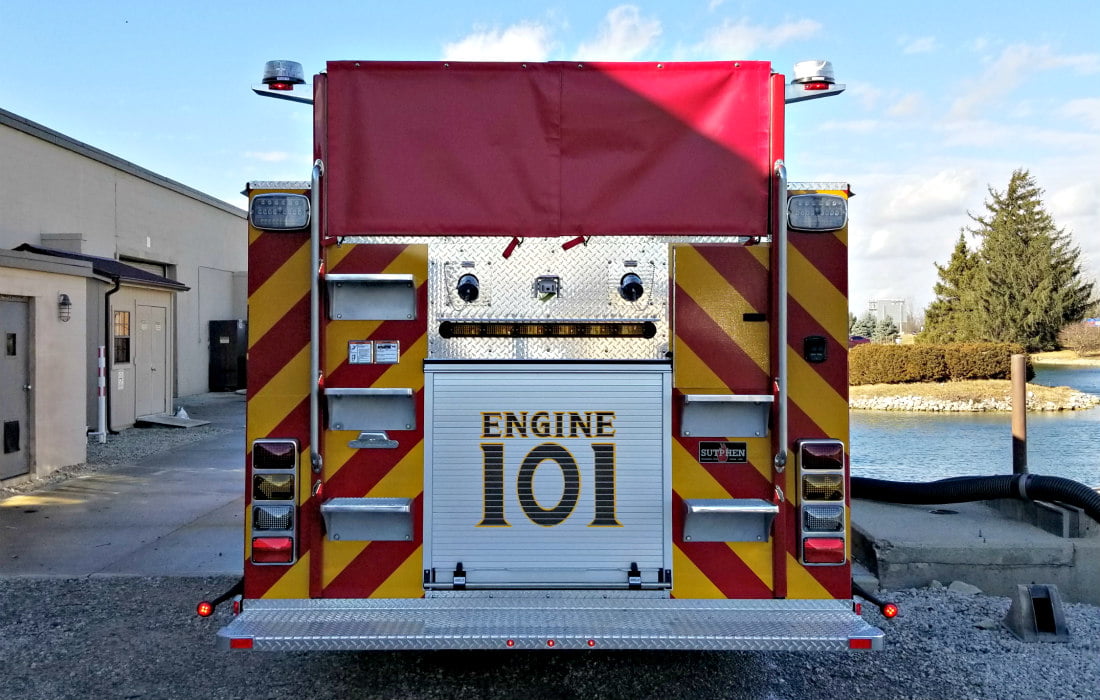

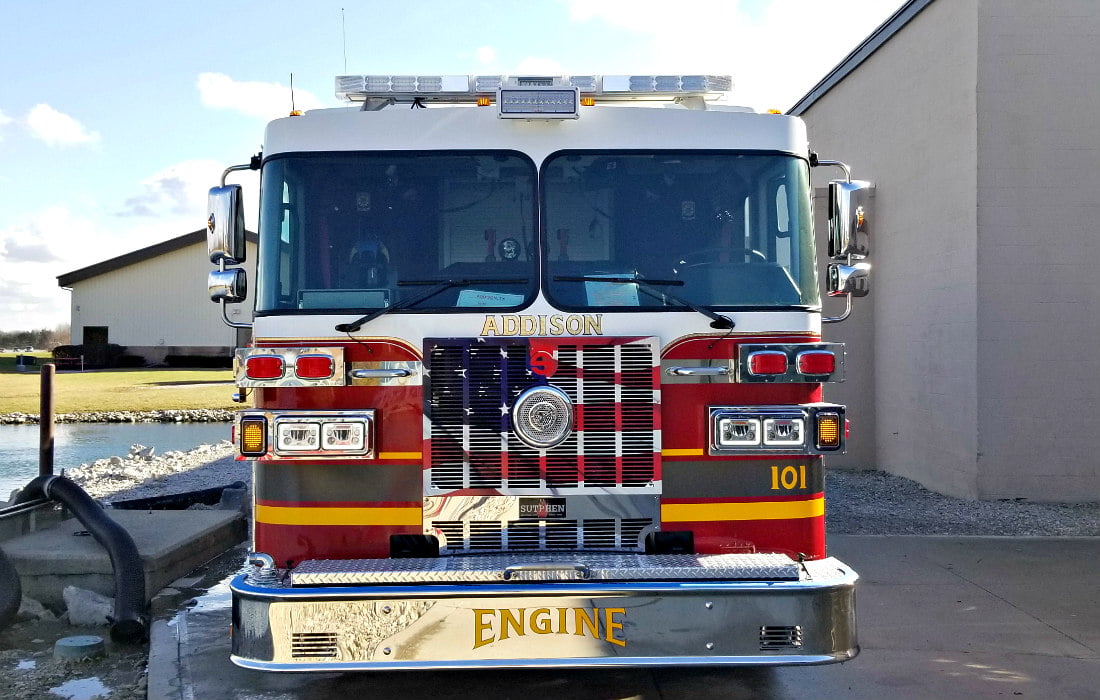

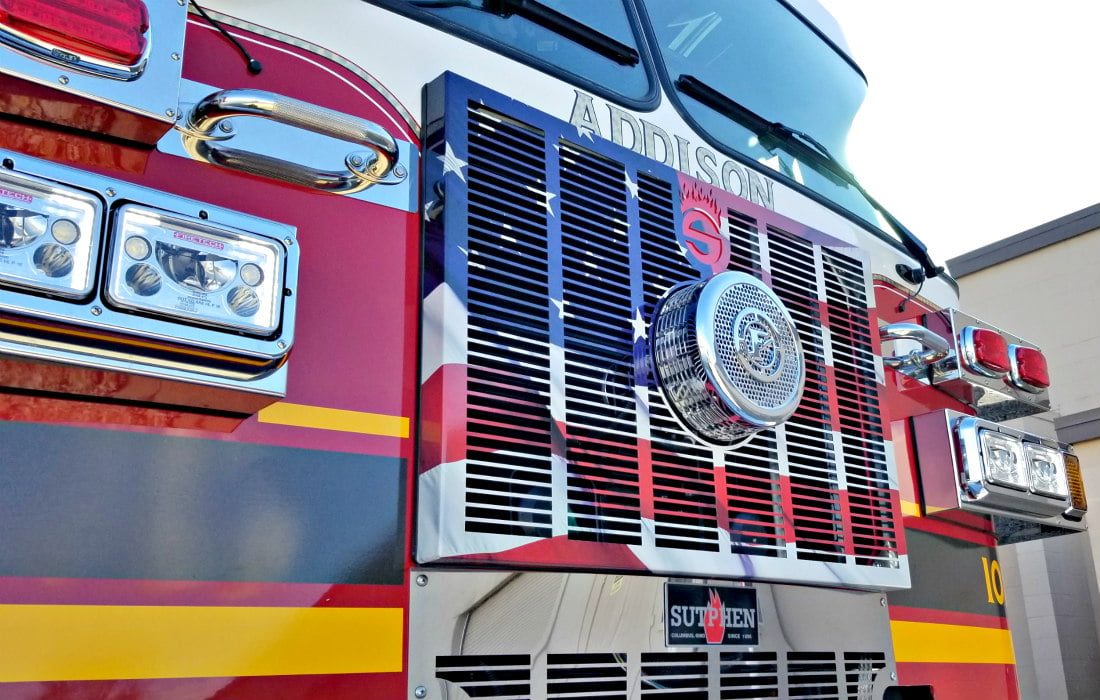

Sutphen Corporation – HS #6200

WHEEL BASE: 206”

TRAVEL HEIGHT: 10’-5”

TRAVEL LENGTH: 33’-4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX 1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Monitor: TFT Hurricane, Electric 1250 GPM
  • Speedlays: (2) 1 ½” with Lift Out Tray
  • 1,000-Gallon Water Tank
  • 50-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Ladder Chute
  • 3 cu. ft. of Total Compartment Space
  • Amdor Roll-Up Compartment Doors
  • Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof and 10’ Folding)

OPTIONAL EQUIPMENT:

  • 18” Extended Bumper
  • Camera System, Voyager 2
  • Hannay Booster Reel w/ 150’ of 1” Hose
  • Federal Q2B Siren
  • Whelen LED 36” Traffic Advisor
  • David Clark Intercom
