Delivery Date:
07/21/2022
Department Name:
Greenville Fire District
Department City / State:
Port Jervis, NY

Sutphen Corporation – HS #7041

Dealer – Myers Fire

WHEELBASE: 230”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 32’ – 4”

CHASSIS:             Kenworth T880 – 2DR

  • Two-Door, Two-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 15, 505HP
  • Alternator: For Commercial Chassis
  • Transmission: EVS4500

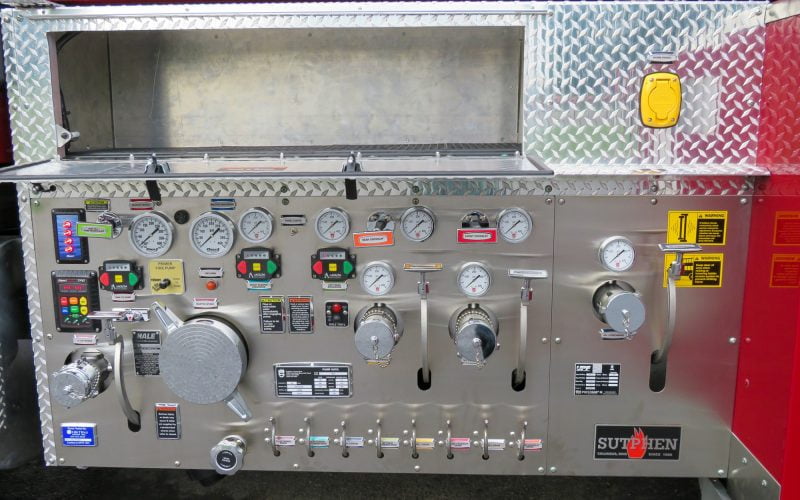

PUMP:                 Hale

  • Side Kick DSD – 1250 GPM, Single Stage Pump
  • Discharges: (3) 2 ½” Left, (1) 2 ½” Front Bumper, (1) 2 ½” Left Rear
  • Crosslays: (2) 2” Crosslays w/ 1 ½” Swivel
  • 3500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • Over 100 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: (1) 24’ 2-section, (1) 14’ Roof, (1) 10’ Folding
  • Body: SWT-05C STS Wet Side Tanker Tandem, Integrated Pump

ADDITIONAL EQUIPMENT:

  • Camera System: Brigade, Three Cameras (Wired)
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Portable Tank: 3000 Gallon, Aluminum Frame
  • Newton Kwik Dump
  • Whelen 60” Freedom Lightbar
  • Whelen M9 Scene Light
  • Whelen 36” Traffic Advisor
  • Whelen L31 Beacons
