Truck Type:

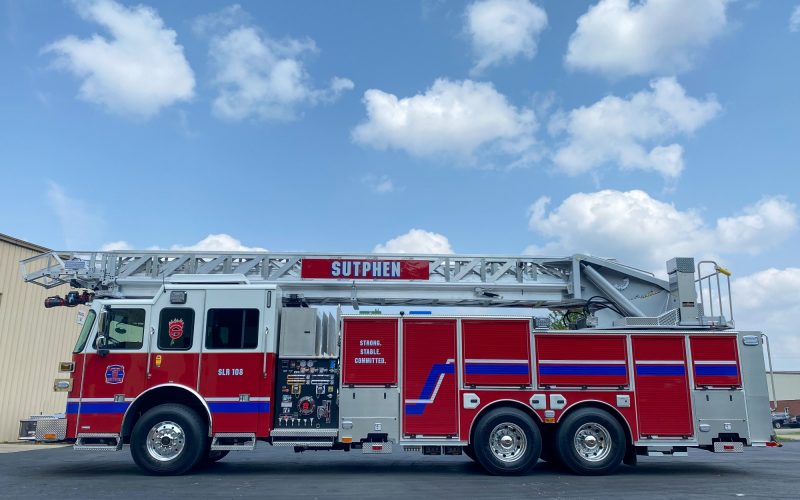

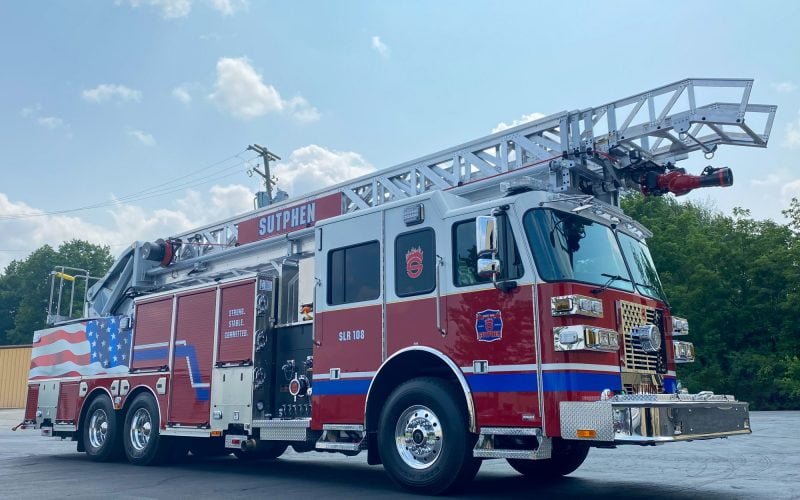

Sutphen SLR 108, Demo 496, HS #6924

WHEELBASE: 236”

TRAVEL HEIGHT: 12’ – 3”

TRAVEL LENGTH: 41’ – 1 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Split Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (1) 2 ½” Crosslay 2 ½” Swivel and (2) Crosslays, 2” Valve-Piping 1 ½” Swivel
  • 470-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • Stainless Steel Subframe
  • ROM Roll-Up Compartment Doors, Painted
  • Over 232 cu. ft. Total Compartment Space
  • Ladder Package Duo-Safety (2) 35’ 2-sec, (2) 28’ 2-Sec, (2) 16’ Roof, (1) 10’ Folding
  • Body: SLR108-2, Left Hight / Right High, Shallow Hosebed Right
  • Monitor: Akron 3480 Stream Master2 Elec RF w/ 5178 Nozzle

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Whelen FNMINI Lightbars
  • Firetech 3-Piece LED Brow Light
  • Firetech FT-SL-X-15 28K 120V Scene Light
  • Firetech 12V LED Boom Spotlights
  • Firetech BG2 Combo Scene Light/Traffic Advisor
  • Britax Marker Light LED
