Delivery Date:
02/12/2020
Department Name:
University Heights Fire Department
Department City / State:
University Heights, Ohio

WHEEL BASE: 236”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank

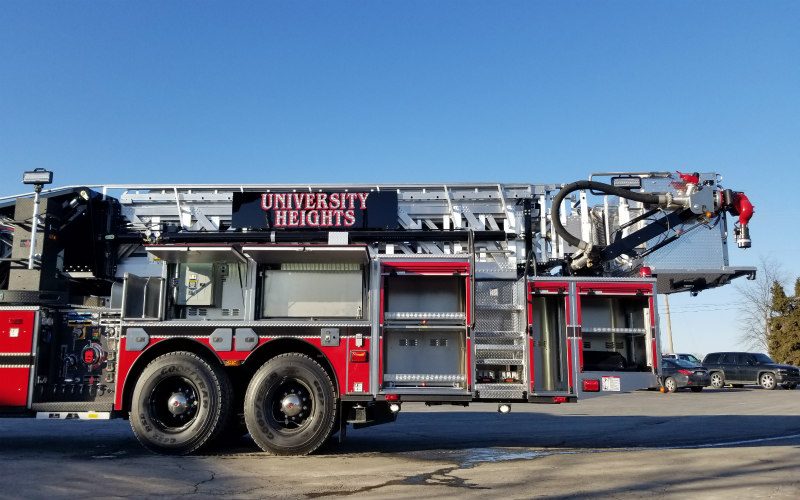

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 07 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (16’, 16’ – extra wide, 24’ – 2 sec, 24’ – 2 sec, 35’ – 2 sec & 10’ Folding)
  • Ladder Chutes
  • Body: SPH-7, Left 56”H/Right 48”H

ADDITIONAL EQUIPMENT:

  • 12” formed steel channel, bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System, FRC, Inview 360
  • Rigis 54” 12V LED Brow Light
  • Whelen Freedom LED Lightbar
  • FRC Spectra 12V LED Scene Lights
