Delivery Date:
02/23/2021
Department Name:
Westmere Fire Department
Department City / State:
Albany, NY

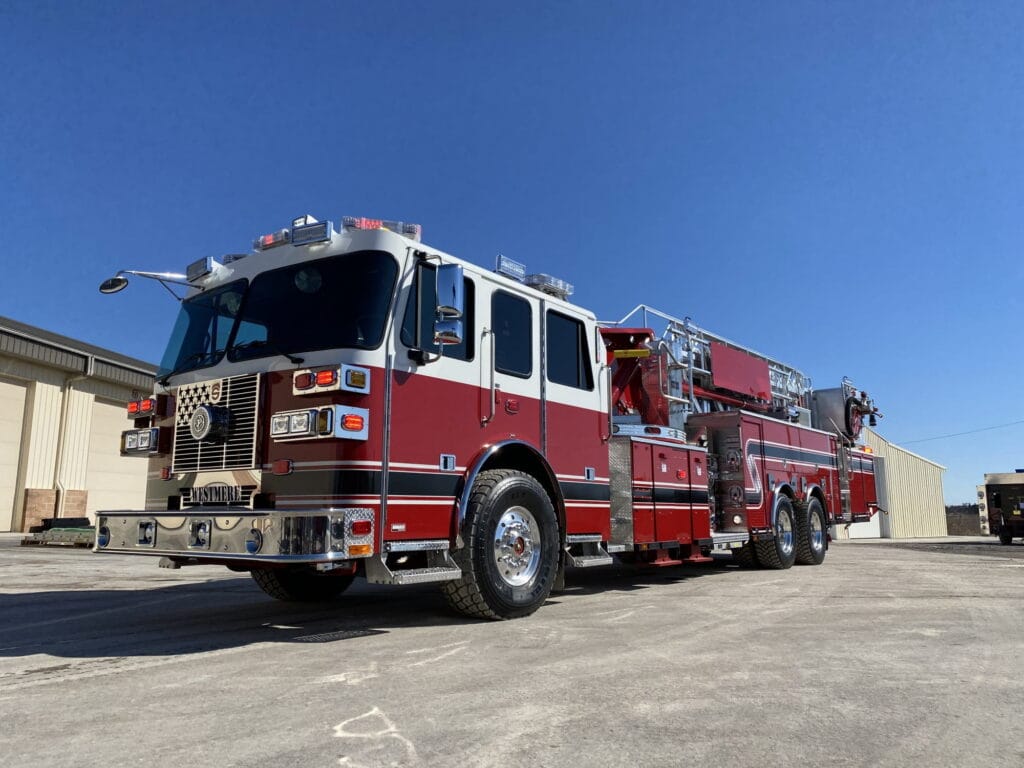

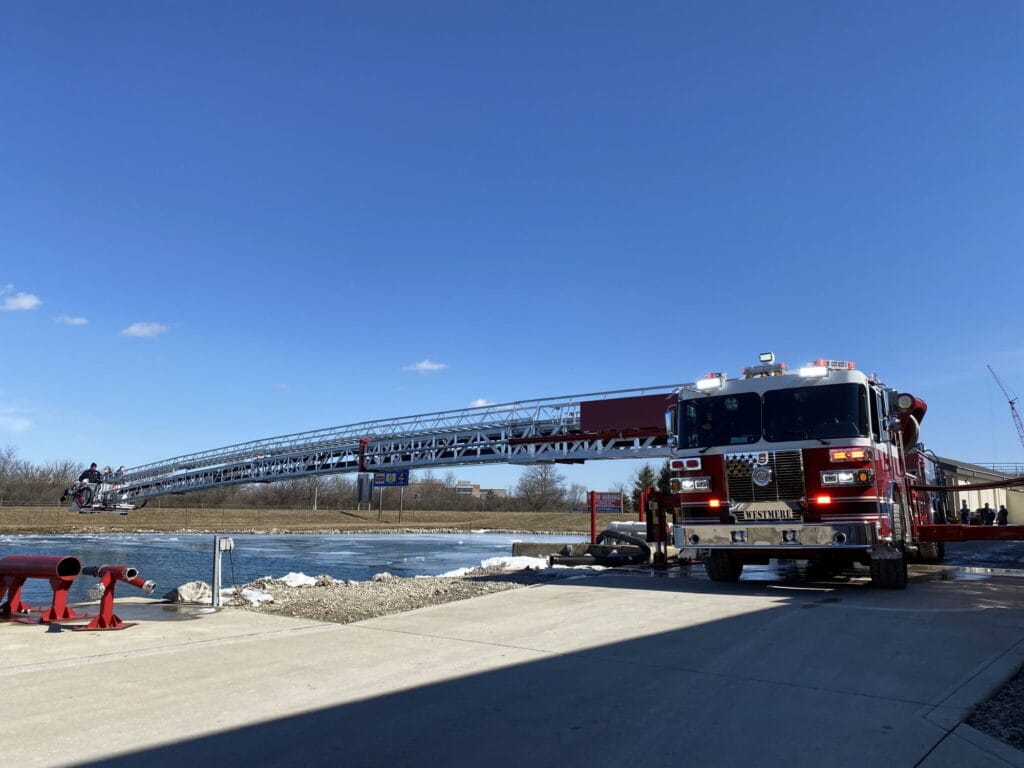

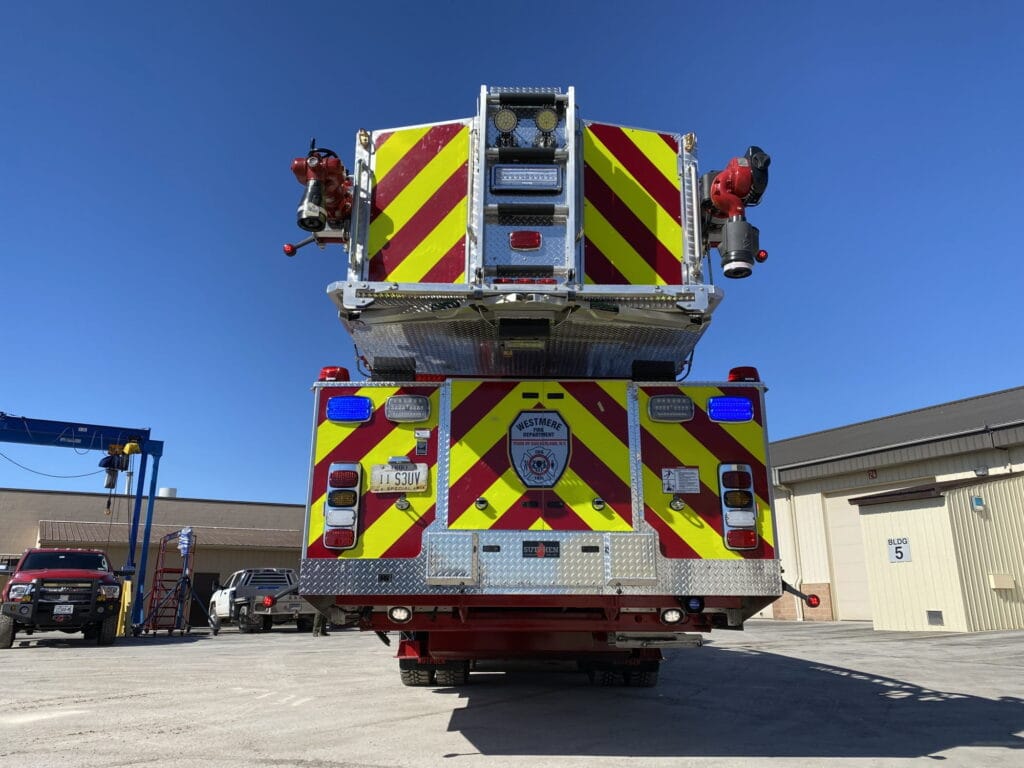

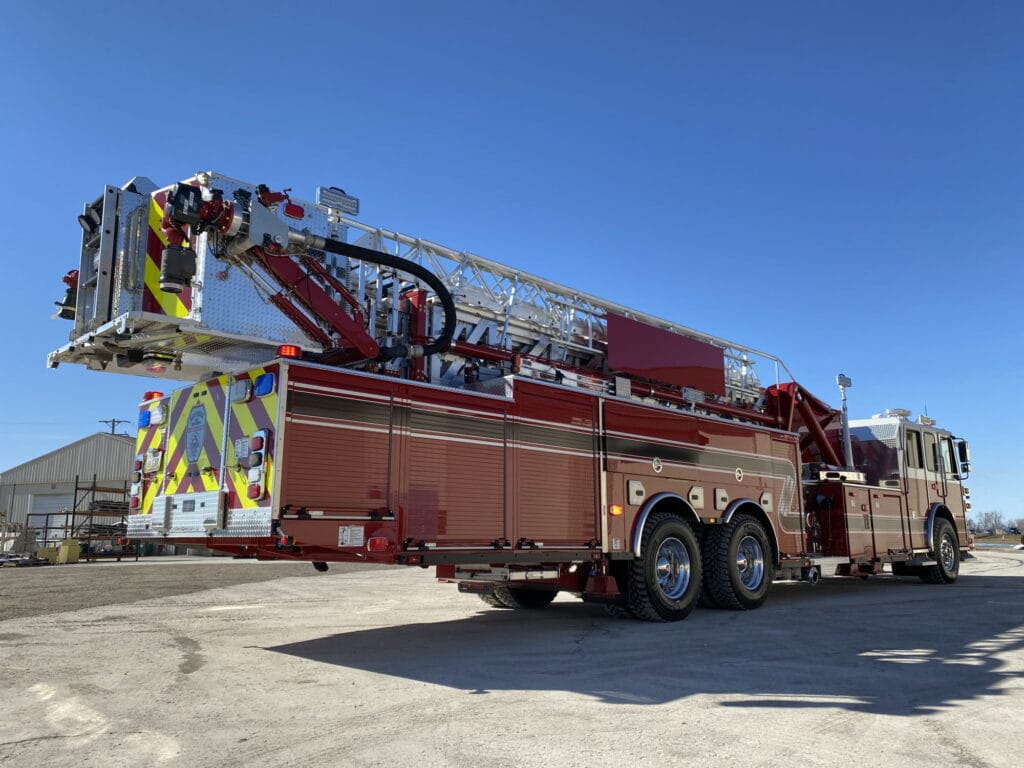

Sutphen Corporation – HS #6598

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 286”

TRAVEL HEIGHT: 11’ – 8”

TRAVEL LENGTH: 49’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 25,500 lbs
  • Rear Axle and Suspension 58,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Niehoff, 430 AMP
  • Transmission: Allison Gen 5, EVS4500

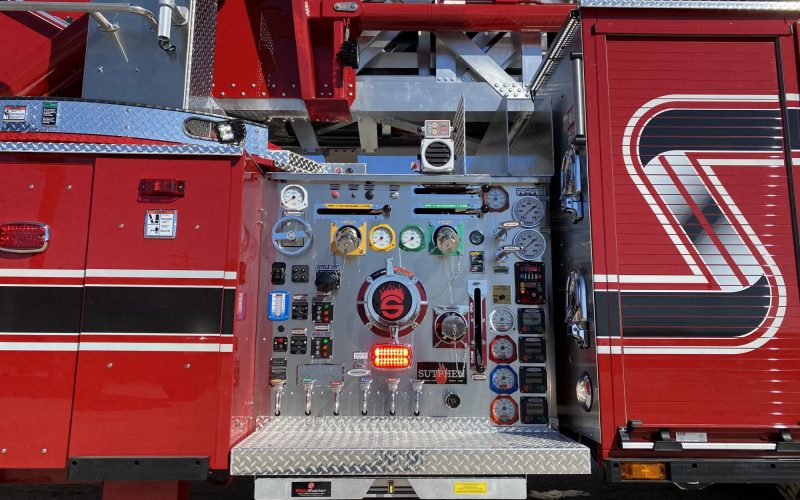

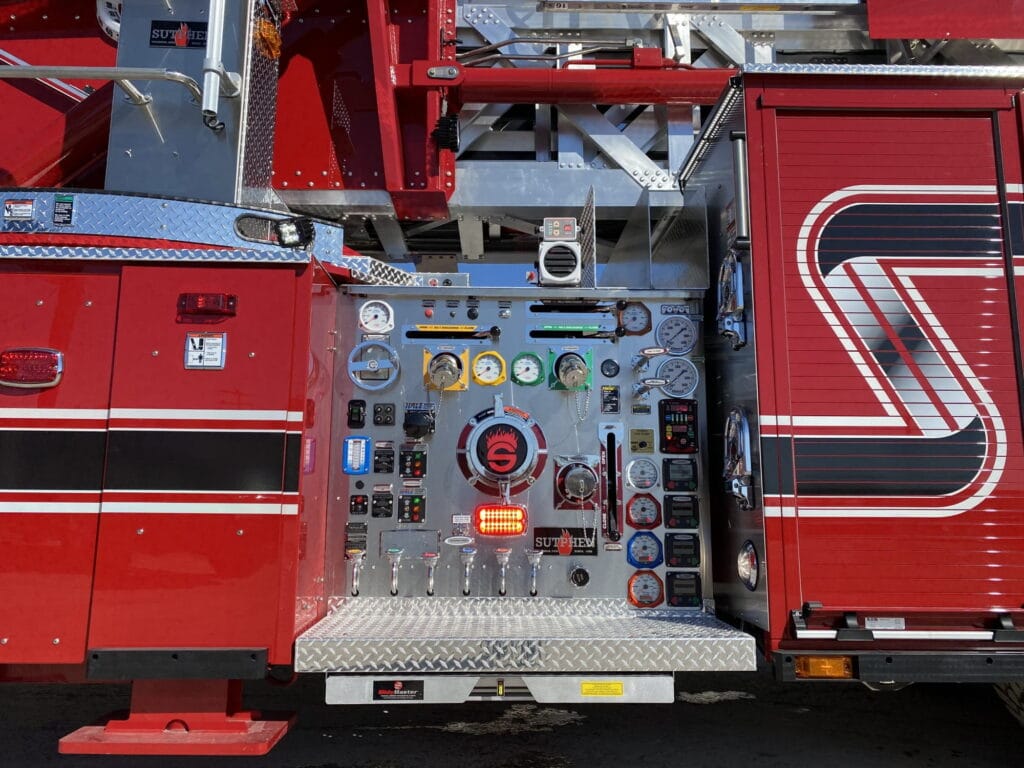

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 3” Right, (2) 2 ½” Rear
  • Crosslay: (2) 2” Crosslay, 1 ½” Swivel
  • 400-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Mixed ROM Roll-Up and Hinged Compartment Doors
  • Ladder Compliment: 10’ Folding, 14’ Roof, 16’ Roof, 10’ Folding, 14’ Roof, 16’ Roof, 20’ Roof, 24’ 2-Sect., 35’ 2-Sect.
  • Body: Modified SPH 112 – Left 56” / Right 56”

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Little Giant 22-Foot Ladder
  • Camera System: Brigade Two Cameras
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 200’ (2)
  • Generator: Harrison 10KW
  • (3) Whelen Rotabeam LED Light Bars
  • FRC Spectra 12V LED Brow Light
  • LED Go-Light
  • FRC Spectra Fixed 240V Scene Light
  • FRC 240V LED Telelights

MONITORS:

  • Driver Side Monitor: Akron 3473 Gemini Manual 1000 GPM.
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: (1) Akron 3482 Stream Master2, Electric, 1250 GPM with Akron 5177 Electric Nozzle
