Delivery Date:
05/07/2024
Department Name:

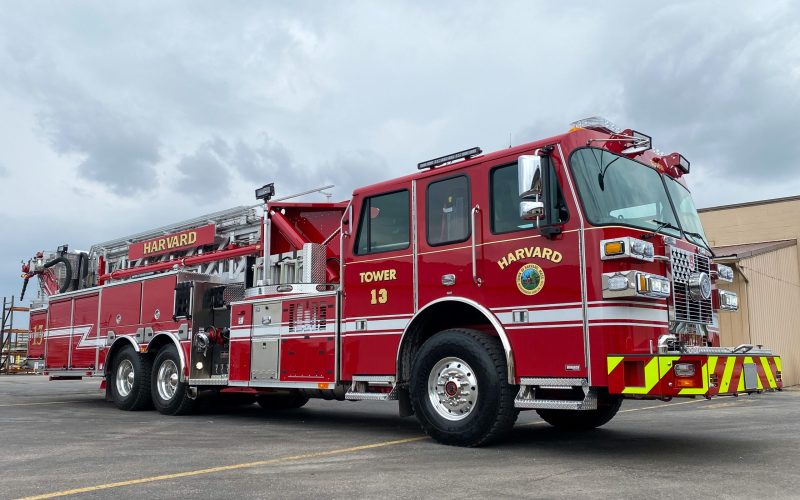

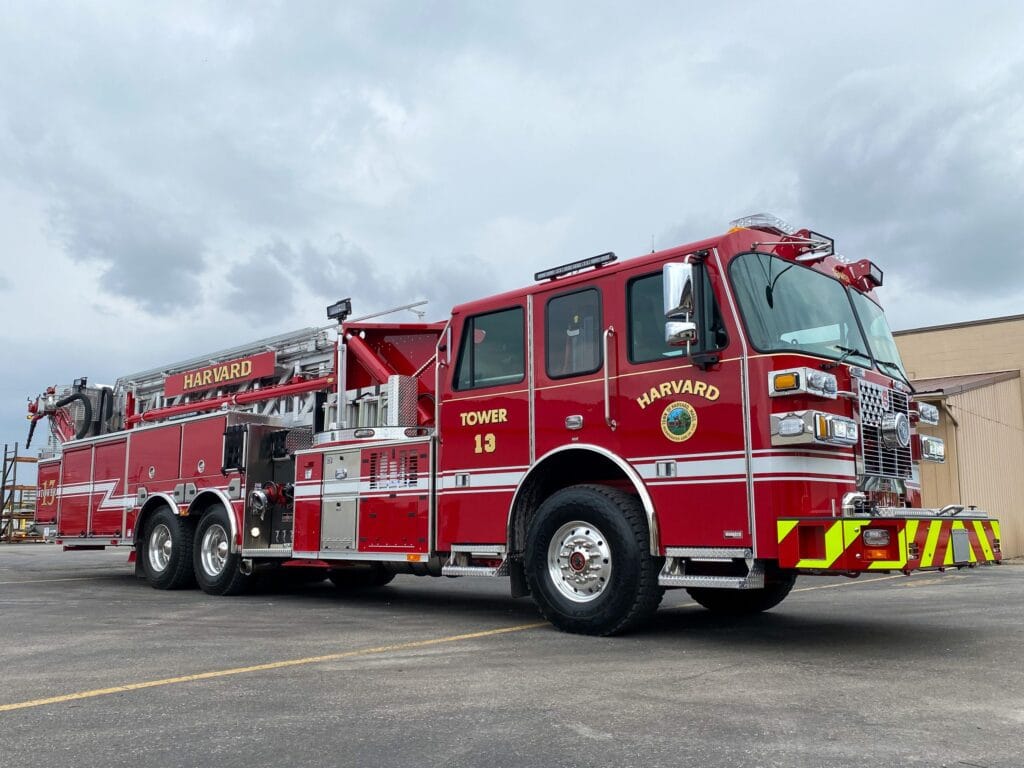

Harvard Fire Department
Department City / State:
Harvard, MA

Dealer: MES-Shipman’s Fire

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 4”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 62” Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 525HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4500

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC, Act 3-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power, 8KW
  • Camera System: Brigade, Backeye 360
  • Whelen Freedom IV 72” WeCanx Light Bar
  • 12V Whelen Pioneer Brow Light
  • Whelen M6V2 Scene/Warning Light
  • 120V Whelen Pioneer Tele Light
  • Whelen M9V2 Warning/Scene Light

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
