Delivery Date:
04/14/2019
Department Name:
The City of Columbus Division of Fire
Department City / State:
Columbus, OH

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 4”

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Niehoff, 430 AMP
  • Transmission: Allison Gen 5, EVS4000

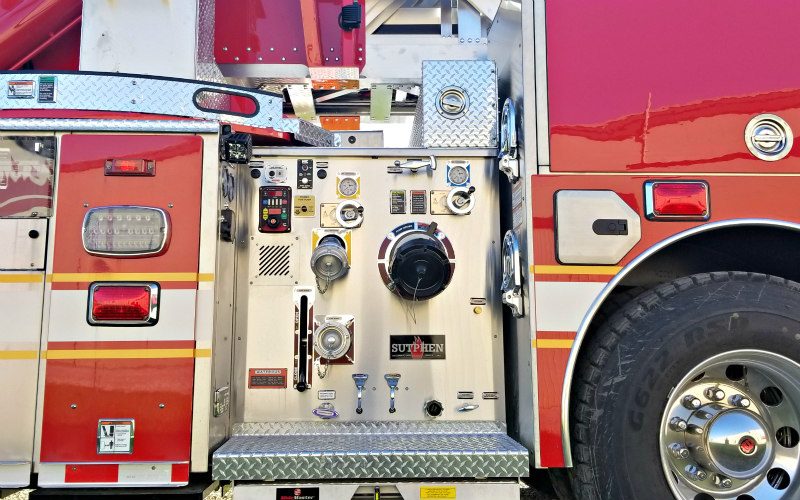

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (2) 2 ½” Right
  • No Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Mixed Compartment Doors – Hinged and Amdor Roll-Up Compartment Doors
  • Over 290 cu. ft. of Compartment Space
  • Duo-Safety Ladder Package, 209’
  • Ladder Chute
  • SPH-3, Left 56” High, Right 56” High

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Recessed in Driver’s Side Bumper
  • 30KW Harrison MPC Generator
  • (6) Pike Pole Storage Tubes
  • Whelen Freedom IV 24” LED Lightbars
  • Whelen M9 LED Scenes
  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Scene
  • FRC Spectra 240V LED Scene Mounted Under Platform
  • 17’ Little Giant
