Delivery Date:
06/05/2020
Department Name:
Brainerd Fire Department
Department City / State:
Brainerd, MN

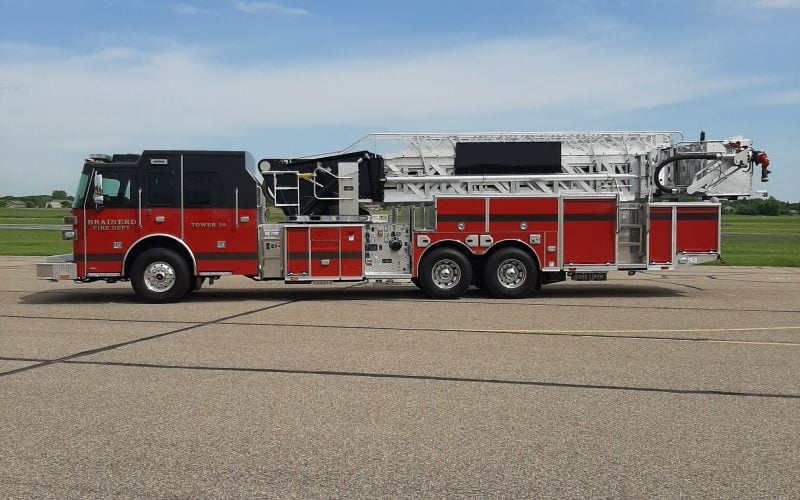

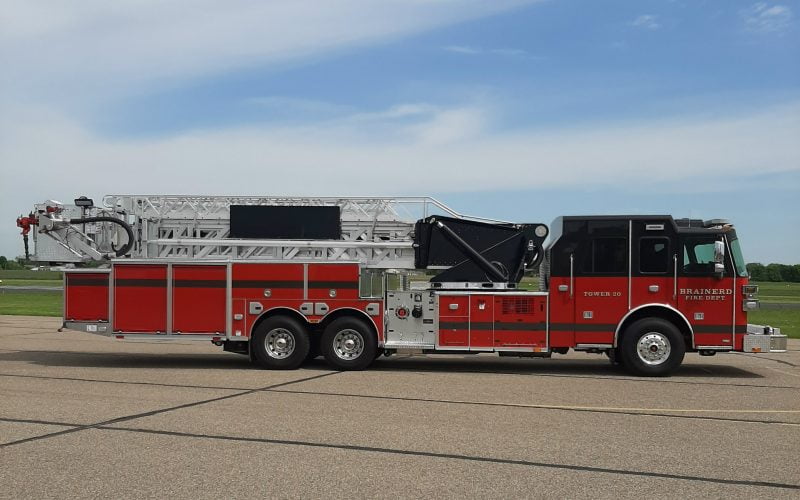

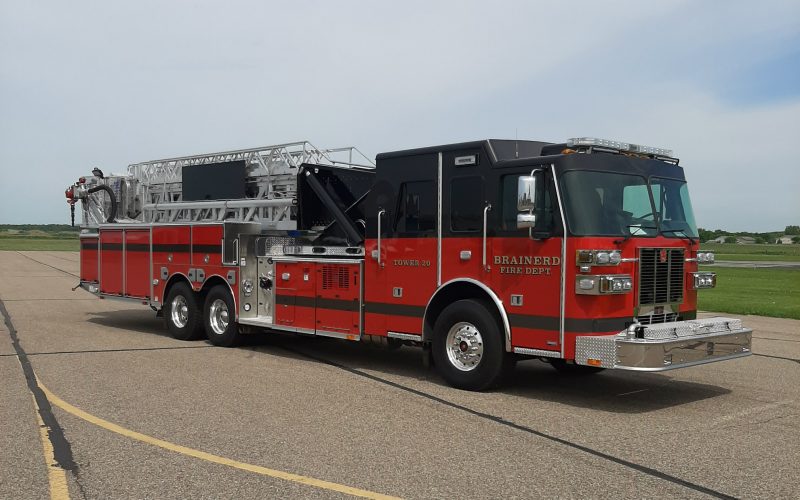

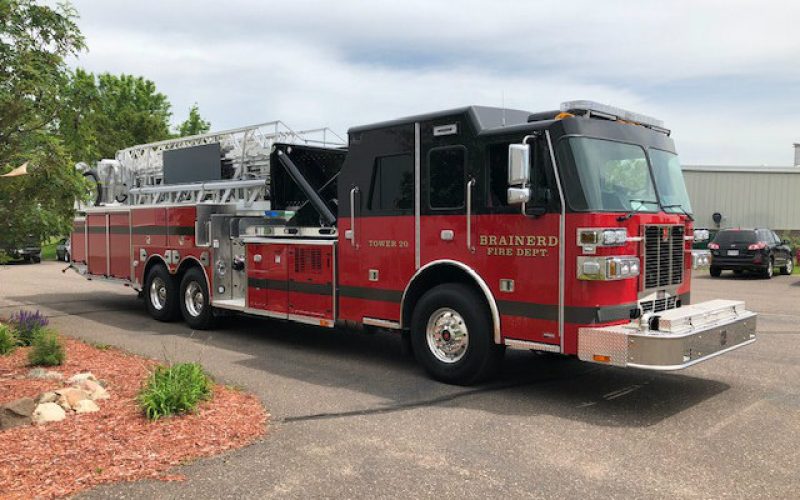

Sutphen Corporation – HS #6562

Dealer – Custom Fire

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
  • 400-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Waterous Aquis 3.0 Foam System

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • AMDOR Roll-Up and Lift-up Compartment Doors
  • 293 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & REL-35 35’ 2-Section & 14’ Combo & PRL-16 16’ Roof)
  • Fully Enclosed Ladder Chute
  • Body: SPH-3 left 56” High/ right 56” High

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Voyager 2 Camera System
  • Harrison 6KW Generator
  • 7 Bottle Compartments
  • Whelen M9 Scene Lights
  • Whelen Freedom IV Lightbar
  • FR Spectra 12V LED Scene Lights
  • Whelen M6 Blue LED Warning Lights
  • FR Spectra 240V LED Scene Light
  • Whelen M6 Red LED Warning Light
