Delivery Date:
06/28/2022
Department Name:
Seminole County Fire Rescue
Department City / State:
Sanford, FL

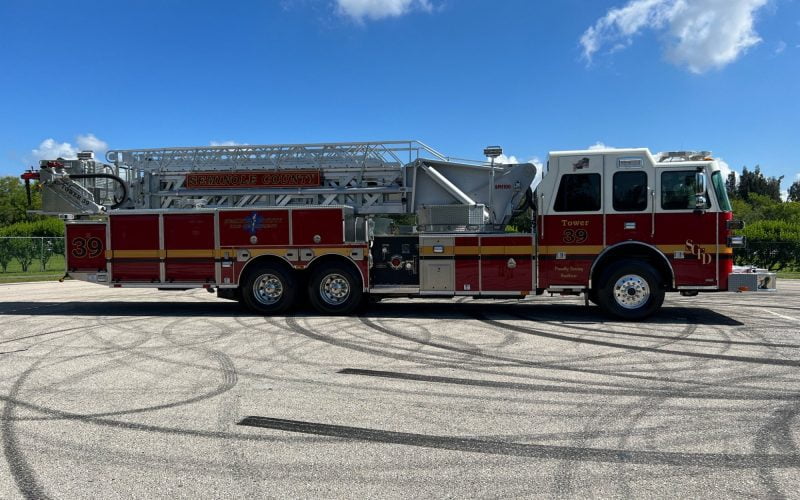

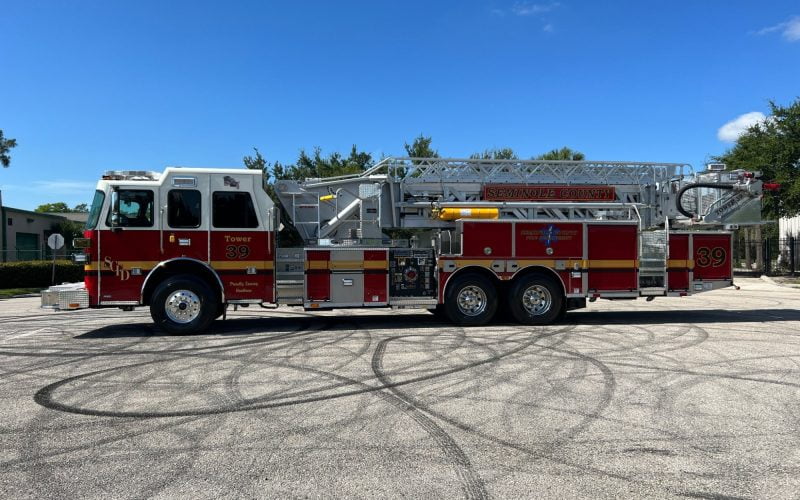

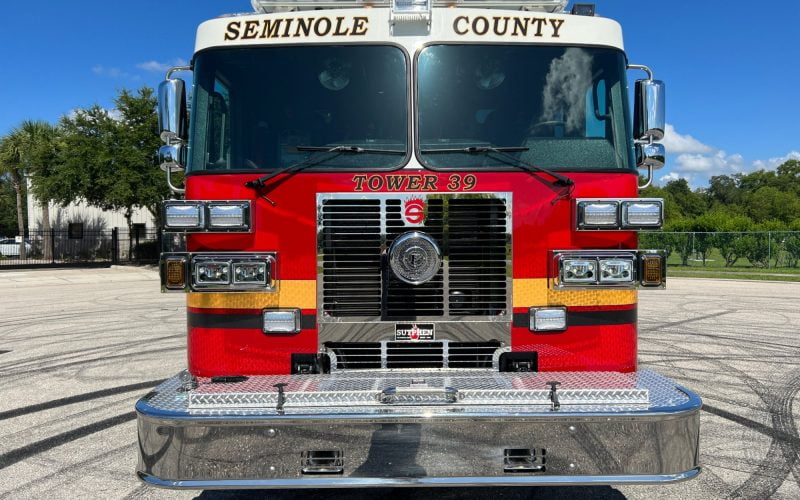

Sutphen Corporation – HS #7036

Dealer – South Florida Emergency Vehicles

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                  Hale

  • QMAX – 1500 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Crosslays Valve-Piping w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                   Sutphen

  • Huckbolted #304 Stainless Steel
  • SPH Mixed Amdor Roll-Up and Hinged Compartment Doors
  • Over 293 cu ft. Total Compartment Space
  • Alco-Lite Ladders: (1) 14’, (2) 16’, (1) 24’ 2-section, (1) 35’ 2-section & (1) 10’ Folding
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 72” Lightbar
  • Whelen Pioneer 12V Brow Light
  • Whelen Pioneer 120V Tele Light
  • Whelen Pioneer 12V Scene Light
  • Intercom System: FRC ACT 2-Station
  • Hannay Reel w/ 150’ 10/3 (2)
