Delivery Date:
02/21/2020
Department Name:
Independence Township
Department City / State:
Clarkston, MI

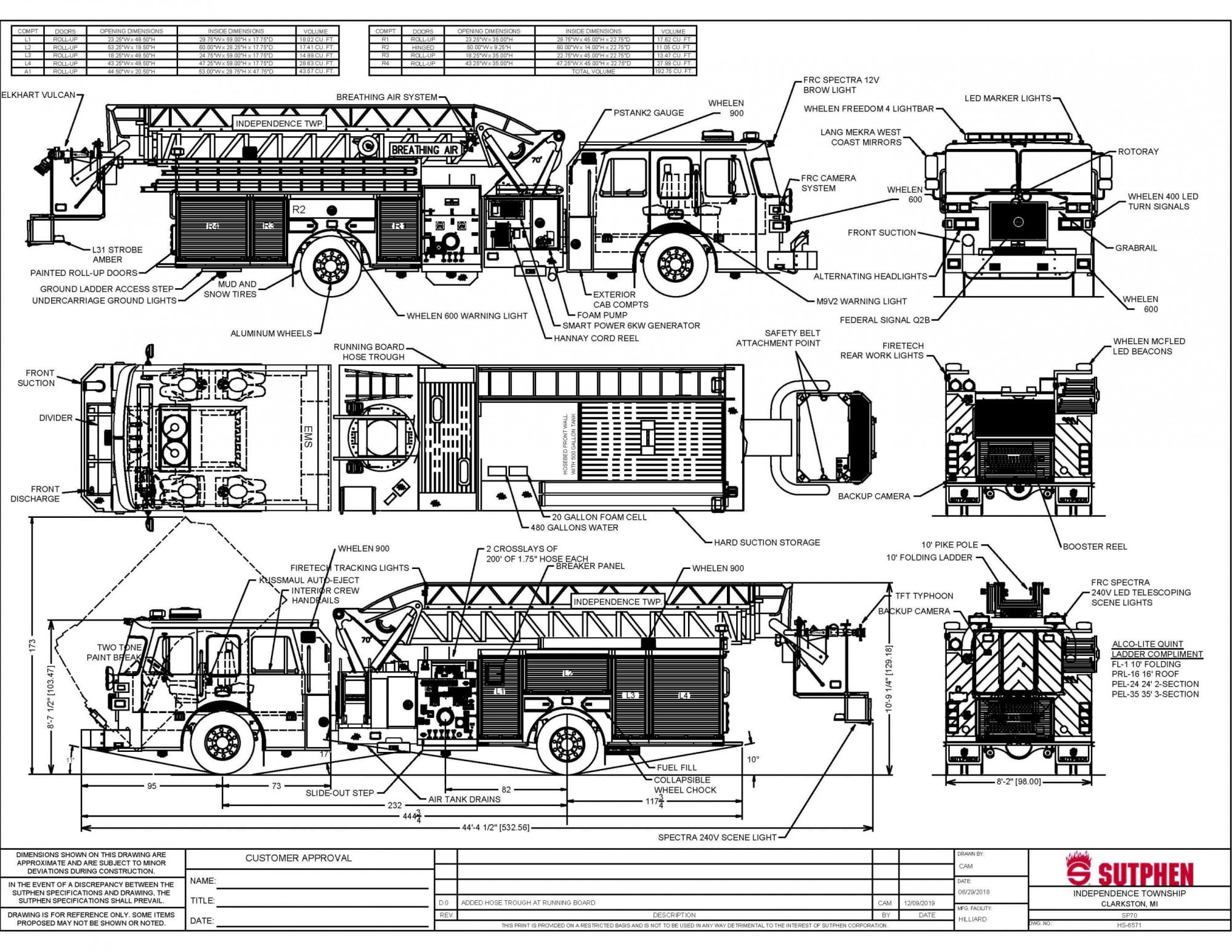

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 44’ – 4 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 480-Gallon Water Tank
  • 20-Gallon Foam Tank
  • FoamPro 2001, 2.6 GPM

BODY:                  Sutphen

  • Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 75 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PEL-35 35” 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: SAA 4, Left High/ Right Intermed/ Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Back-up Camera
  • Smart Power 6KW Generator
  • FRC Spectra 12V Brow Light
  • FRC Spectra 240V Telescoping Scene Lights
  • Whelen Freedom 4 LED Lightbar
  • Whelen 600 Warning Lights
