Delivery Date:
07/19/2021
Department Name:
Syracuse Fire Department
Department City / State:
Syracuse, NY

Sutphen Corporation – HS #6768-69

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 252”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 48’ – 0”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails Tandem axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4500

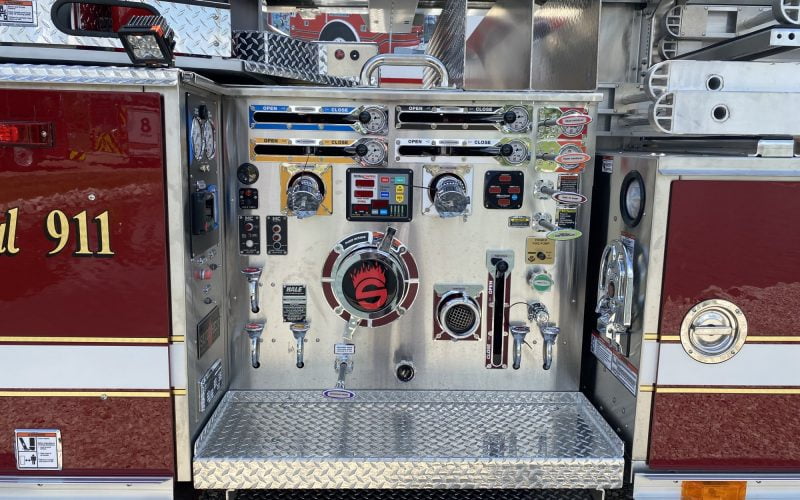

PUMP:                  Hale

  • QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 3” Right
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 400-Gallon Water Tank

BODY:                   Sutphen

  • Mixed Compartment doors
  • Ladders: Duo Safety Syracuse Ladder Package. (1) 12’, (1) 16’, (1) 18’, (2) 20’ Extra Wide, (2) 30’ 2-Section, (2) 35’ 2-Section

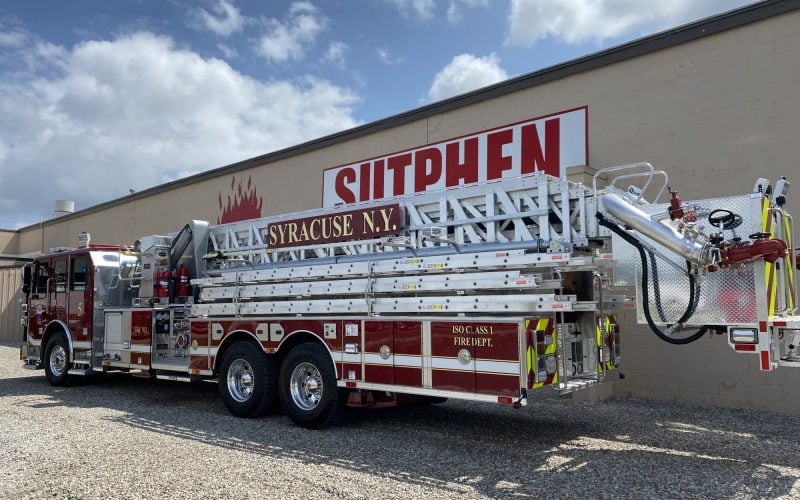

  • 95’ Low Rail Ladder Cable Track
  • Body: SP1 – Left Low / Right Low

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Whelen Freedom IV Lightbar w/ Opticom
  • FRC Spectra LED Fixed/Pedestal Lights
  • MCFLED LED Beacons
  • Whelen 600 Red LEDs



MONITORS:

  • Driver Side Monitor: (1) Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Monitor: (1) Akron 3473 Gemini Manual 1000 GPM
