Delivery Date:
11/06/2019
Department Name:

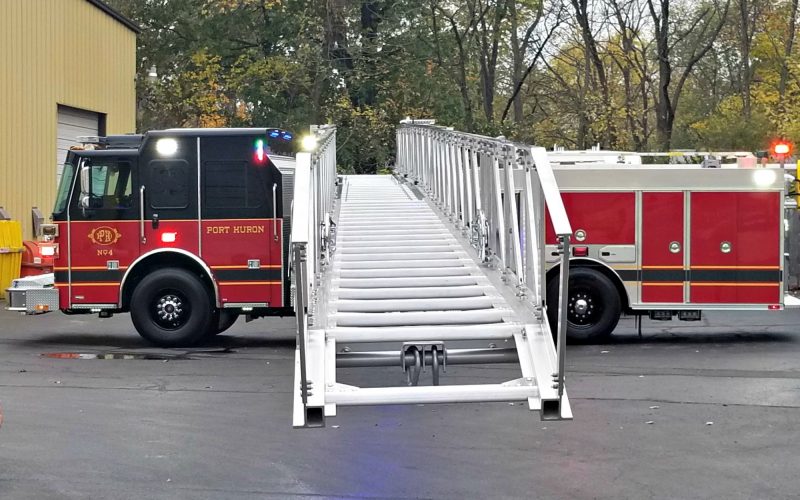

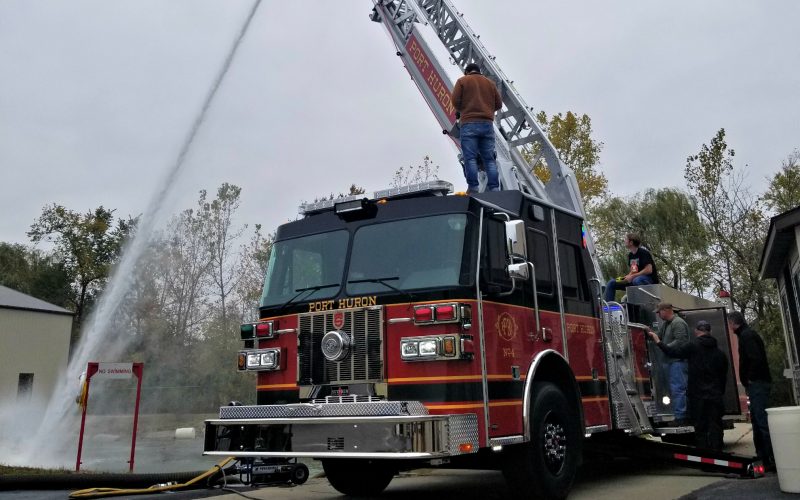

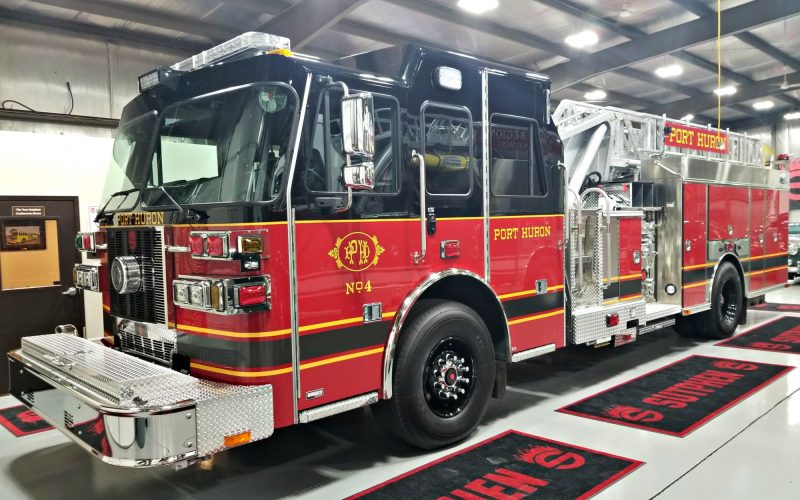

Port Huron Fire Rescue
Department City / State:
Port Huron, MI
Truck Type:

Sutphen Corporation – HS #6470

Dealer – Apollo Fire Equipment and Apparatus Repair

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 41’-0 ¼”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper,
  • Crosslays: (2) 2” Valve-Piping with 1 ½” Swivel
  • Monitor: TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
  • Hale SmartFoam 2.1A w/ Flush
  • 20-Gallon Foam Tank
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16R’, 24’ 2-Section, 35’ 3-Section & 10’F)
  • Body: SAA-4 Left High / Right Intermed / Trans

OPTIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Voyager 3, Camera System
  • Whelen PFH2 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen M9 Scene
  • FireTech Aerial Spotlights

Techniq E10 Undercarriage Ground Lights
