Delivery Date:
08/26/2021
Department Name:

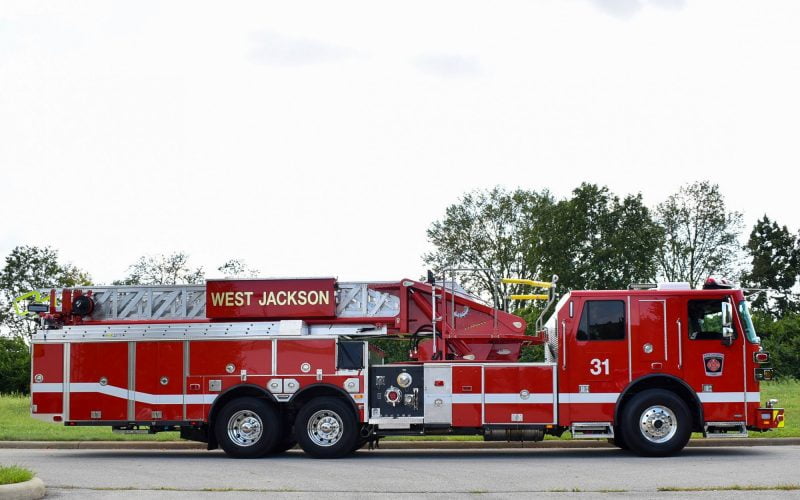

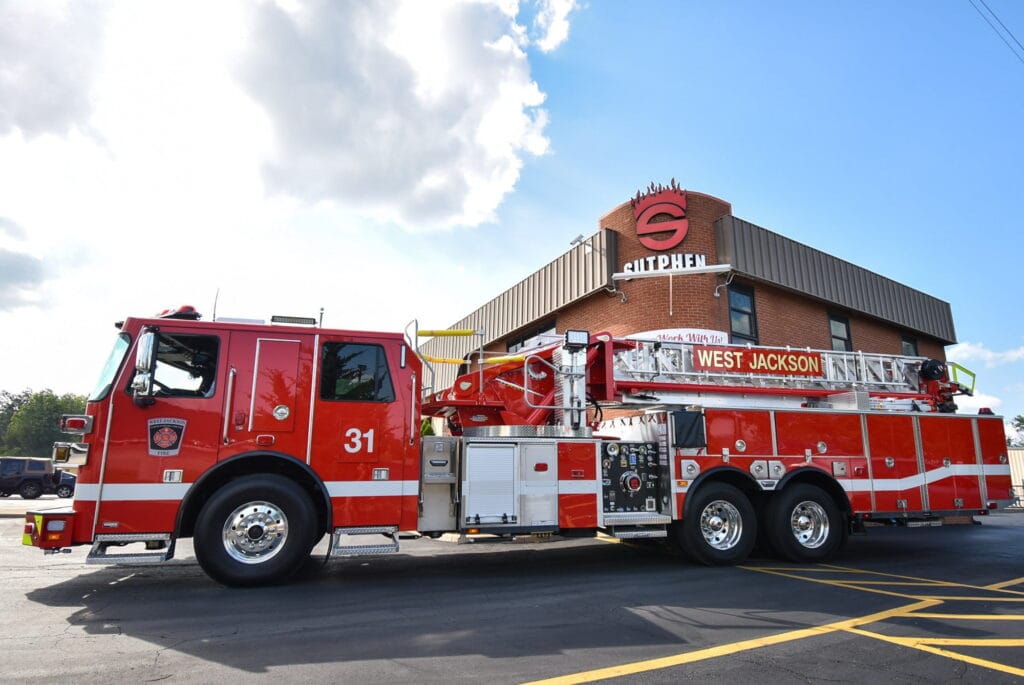

West Jackson Fire Department
Department City / State:
West Jackson, GA
Truck Type:

Sutphen Corporation – HS #6945

Dealer – Williams Fire Apparatus

WHEELBASE: 236”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 44’ – 2”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs.
  • Rear Axle and Suspension 48,000 lbs.
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (1) 4” Right, (1) 2 ½” Right, (1) Rear Driver Side 2 ½”, (1) 2 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 300-Gallon Water Tank
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle

BODY:                  Sutphen

  • #304 HuckBolted Stainless Steel
  • Hinged Compartment Doors
  • 202 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: (1) 35’ 3-Section, (2) 28’ 2-Section, (2) 16’ Roof Ladder, (2) 10’ Folding Ladder
  • Body: SL100-2 – Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Intec, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 10KW
  • Federal Signal VSLR Light Bars
  • FireTech 72” 1-Piece Brow Light
  • FireTech 12V Scene Light
  • FireTech 12V Telescoping Scene Light
  • FireTech Boom Spotlights
  • Whelen M2WG, Tip of Aerial
  • FRC Spectra 28K VAD LED Scene Light
