Delivery Date:
11/15/2023
Department Name:

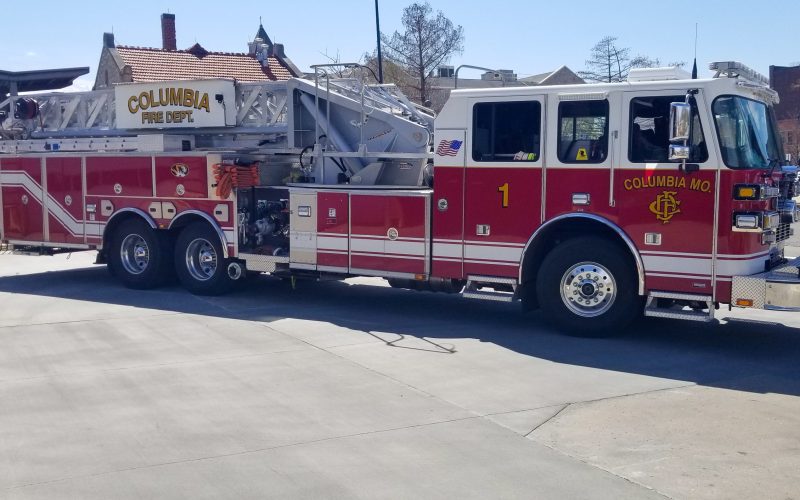

Columbia Fire Department
Department City / State:
Columbia, MO
Truck Type:

Dealer – Cashion Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 45’ – 10”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                 Sutphen

  • Huckbolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 240 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 35’ 3-Section; 28’ 2-Section; 14’ Roof; 16’ Roof; 10’ Folding
  • Body: SL 100 – Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview
  • Intercom System: Firecom 5100D, Single Radio
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: Smart Power, 6KW HYD
  • Roto-Ray Warning Light
  • Whelen Freedom IV 72” RotaBeam LED Light Bar
  • FireTech 3-Piece 72” LED Brow Light
  • FireTech FT-MB-2.18 20.6” 12V LED Scene Light

MONITOR:

  • Monitor: Elkhart 7250 Cobra EXM w/ Streamshaper & Stacked Tips
