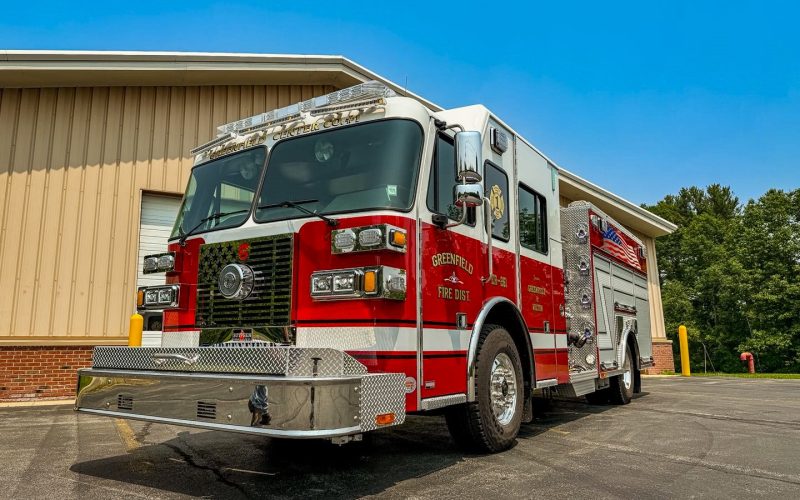

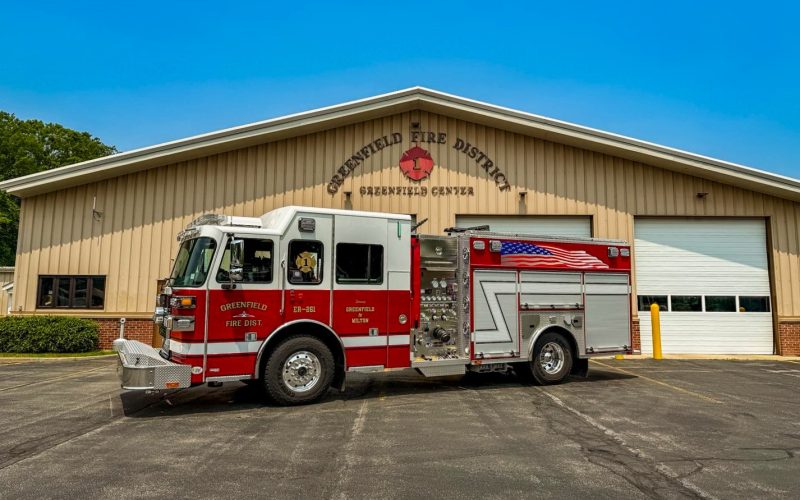

Custom Pumper – Greenfield Fire District, NY

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 32’ – 5”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Domex Frame Rails (110K PSI)
• Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
• Rear Axle and Suspension 27,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 420 AMP
• Transmission: Allison Gen 6, EVS3000

PUMP:                 Hale

• QMAX XS 1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” w/ 4” Outlet, Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/ Right of Main Hosebed, (1) 1 ½” Front Bumper, 2“ Plumbing, (1) 3” Deck Gun
• Crosslay: (1) 2 ½”
• Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
• 1000-Gallon Water Tank

BODY:                 Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-Up Compartment Doors
• Nearly 300 cu. ft. of Compartment Space
• Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
• Body: S9 – Alum 43/53 Lad Thru Tank

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: FRC, Inview Trueview, Single Camera (Wired)
• FireTech 3-Piece 72” LED Brow Light
• Whelen Freedom IV 72” LED Lightbar
• 12V Command Light Knight Series Light Tower (4 Head)
• FireTech Guardian Scene Light
