Delivery Date:
11/01/2017
Department Name:
Painesville Fire Department
Department City / State:
Painesville, OH

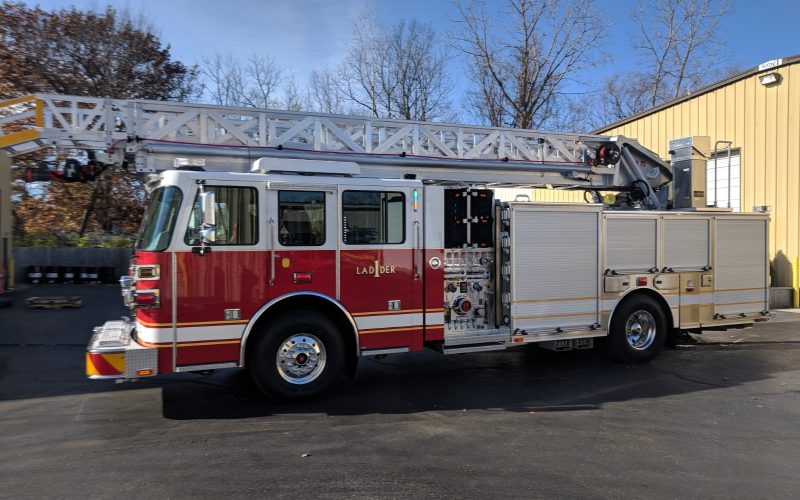

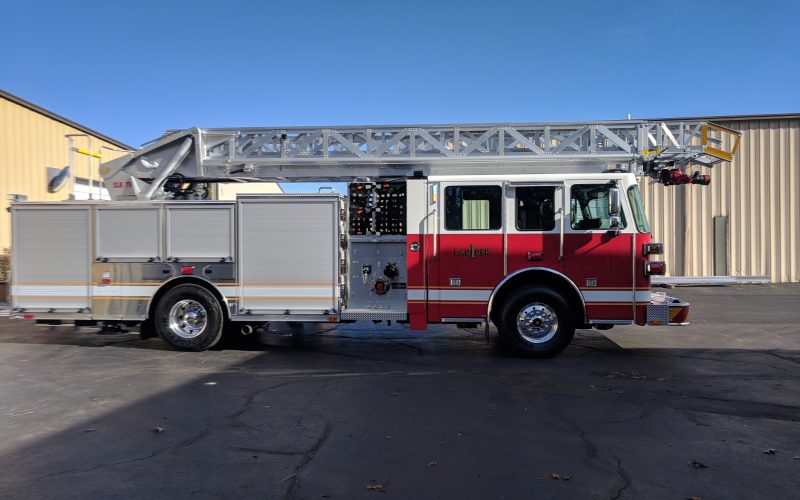

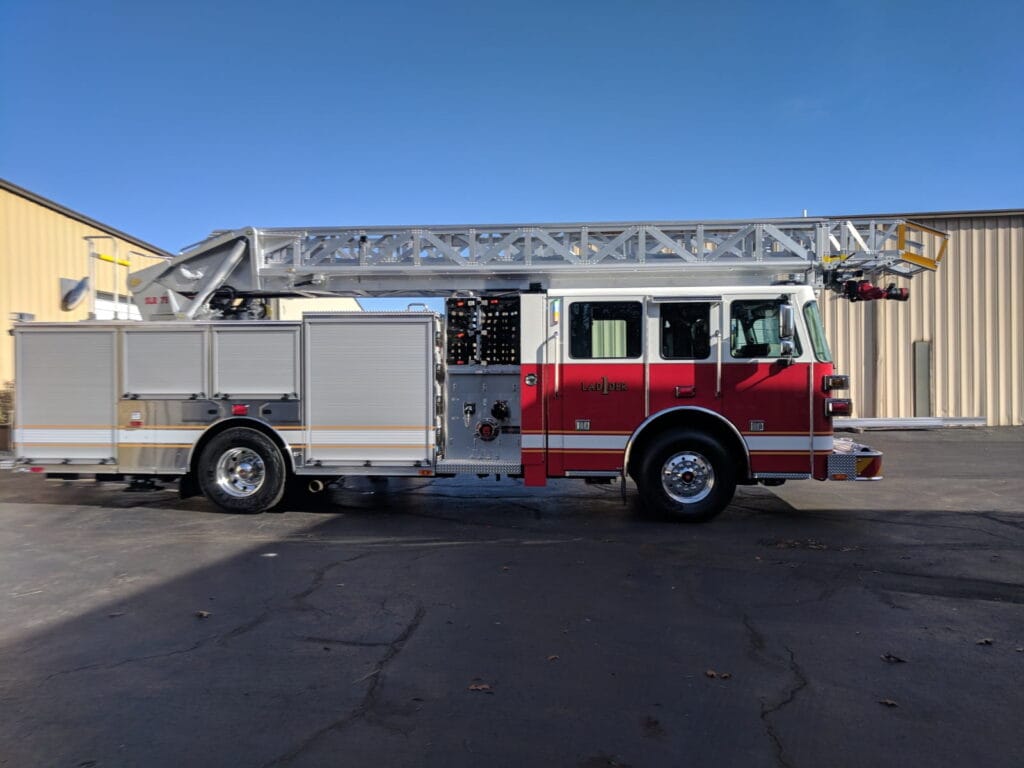

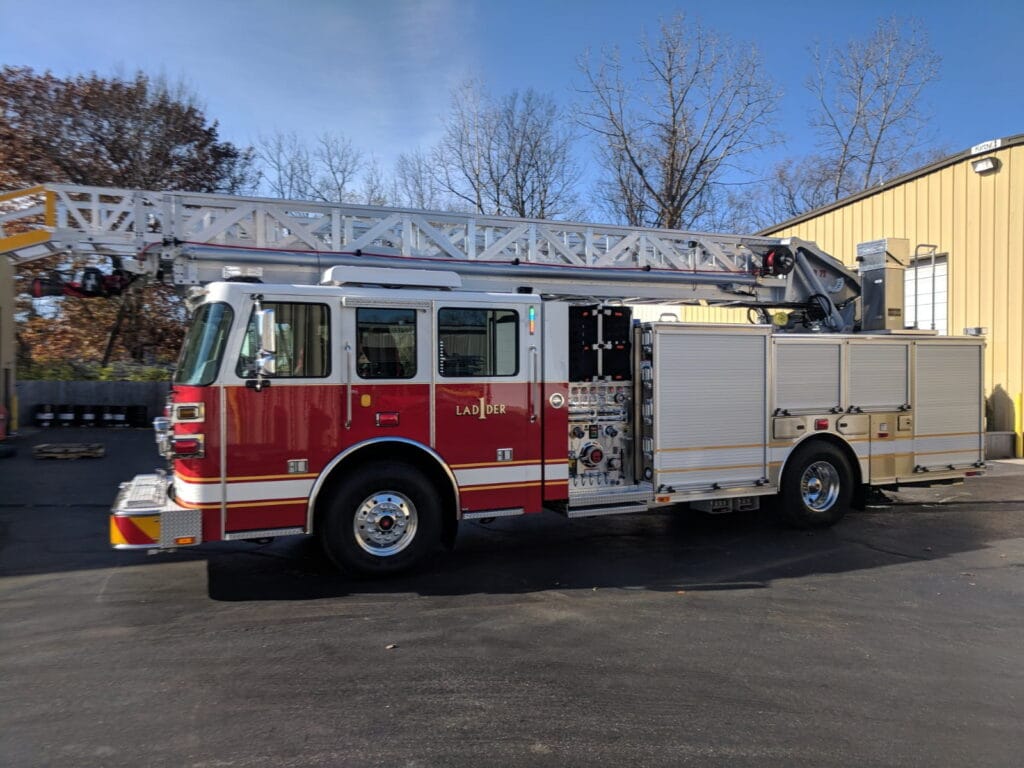

Truck Type:

WHEEL BASE: 206”

TRAVEL HEIGHT: 11′-9 1/2″

TRAVEL LENGTH: 37′-11″

CHASSIS:              Sutphen 62” Flat Cab

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 23,000
  • Rear Axle and Suspension: 35,000
  • Engine: Cummins ISL 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:

  • QMAX-1500 GPM 6″ Suction Single Stage
  • Discharge: (2) 2.5″ Left, 3″ Right, 5″ Right, 2.5″ valve, 2.5″ pipe to left rear, 1.5″ Front Bumper, 2″ Plumbing
  • 500 Gallon Water Tank

BODY:                   Sutphen

  • Stainless Steel
  • 74 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • 18” Bumper Extension
  • 1200 W Inverter
  • Rear Suspension Back Pressure Relief Valve
  • Countersink Rear leveling valve bolts
  • Dead Load Hose and apartment pack storage in dunnage compartment
