Delivery Date:
09/17/2020
Department Name:
Northern Union Join Fire District
Department City / State:
Richwood, OH

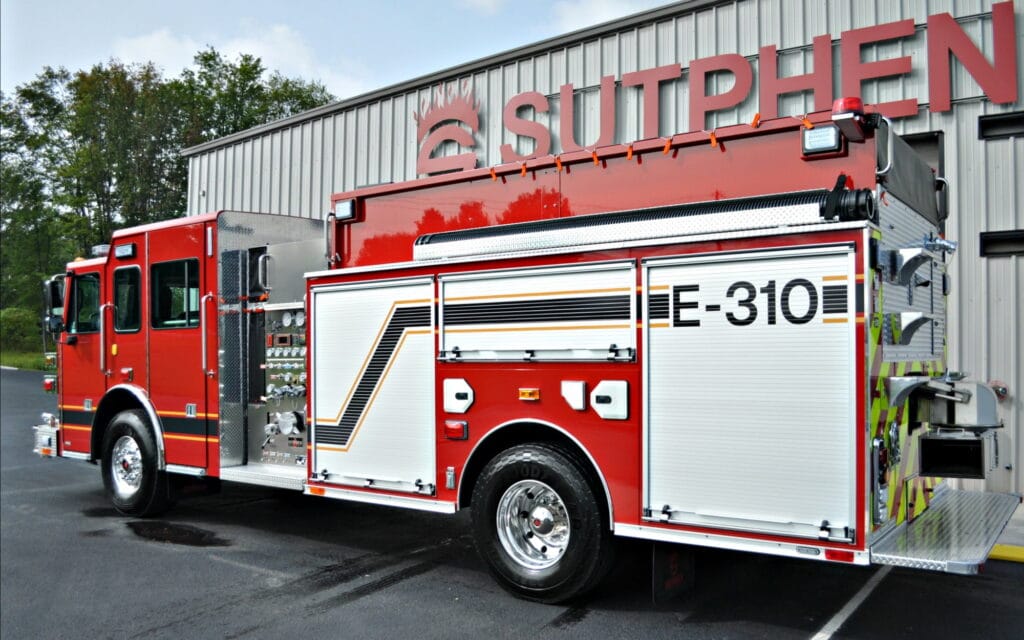

Sutphen Corporation – HS #6637

Dealer – Herb Fire

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 1 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Single Rails, Domex, Single Axle (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-XS 2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Pipe to Right Rear, (1) 2 ½” Front Bumper Discharge
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 1 ½” w/ Lift-Out Trays
  • Crosslay: (1) 2 ½”
  • 2,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System, Hale Smartfoam 2.1A

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 170 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute Through Tank
  • Body: TA-01 Tanker 56/53 High/Low Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Hannay Electric Cord Reel, 200’ (1)
  • Generator: 6KW Smart Power
  • Newton Swivel Dump with Electric Dump
  • Whelen Freedom IV 72” Lightbar
  • Whelen L31 Beacons
  • FR Spectra Brow Light
  • FR Spectra Scene Lights (2)
