Delivery Date:
05/15/2025
Department Name:

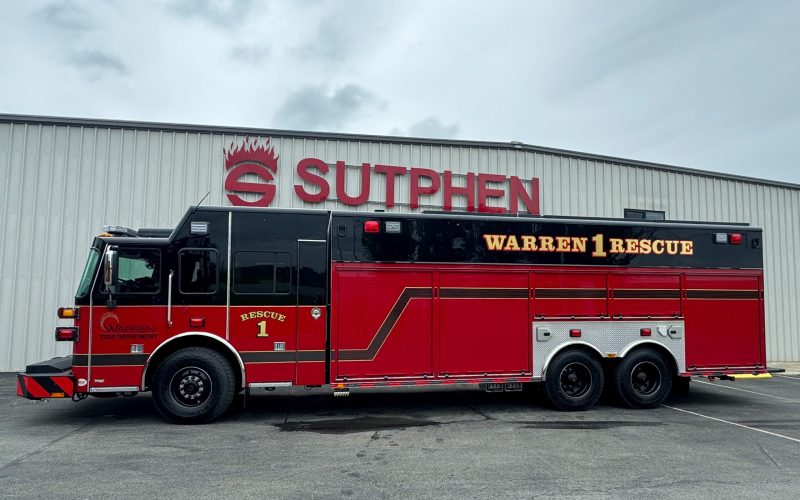

City of Warren Fire Department
Department City / State:
City of Warren, MI
Truck Type:

Dealer – Apollo Fire Apparatus Sales and Service

WHEELBASE: 262 ½”

TRAVEL HEIGHT: 10’ – 8”

TRAVEL LENGTH: 41’ – 9”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 20” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 6, EVS4000

PUMP:

  • 100-Gallon Water Tank

BODY:                 Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 1,175 cu ft. Total Compartment Space
  • Body: RA-26 26’ Aluminum, Walk Around w/ Double Hatch Compartments

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • Generator: Harrison Direct Drive PTO 10KW
  • Hannay Reel, 175’ (2)
  • Compressor, Champion BR5 Baseplate HP w/ 30 Gallon Tank
  • Booster Reel, 200’ of ¾”
  • FRC Spectra LED Brow Light
  • Whelen Freedom IV 72” LED Light Bar
  • Willburt NS Vertical w/ 6 FRC Spectra Max Lightheads
