Delivery Date:
12/17/2020
Department Name:
Whitehall Fire Department
Department City / State:
Pittsburgh, PA

Sutphen Corporation – HS #6617

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 205”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 32’ – 6 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ Flat Roof

  • Four-Door, Seven-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

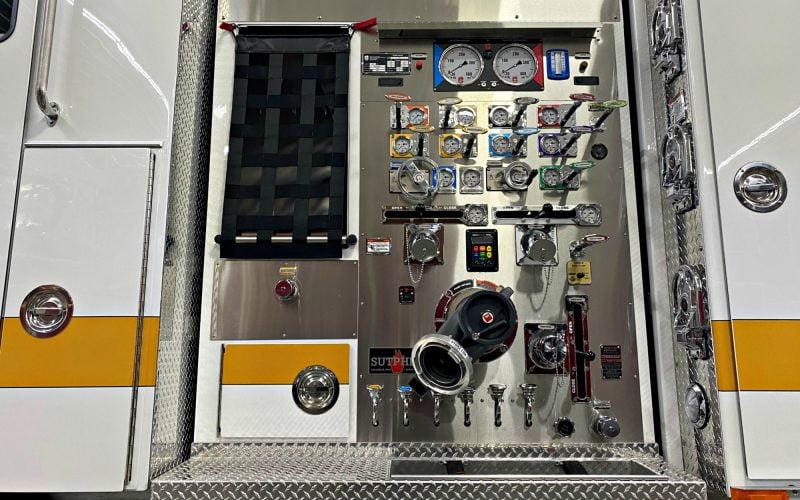

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, 4” Right, (2) 3” Right, (1) 1 ½” Left, (1) 1 ½” Right, (1) 3” Front/Right of Main Hosebed, (1) 3” Right Rear, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” w/ Lift Out Tray & (1) 2 ½” Speedlay w/ Lift Out Tray
  • 750-Gallon Water Tank

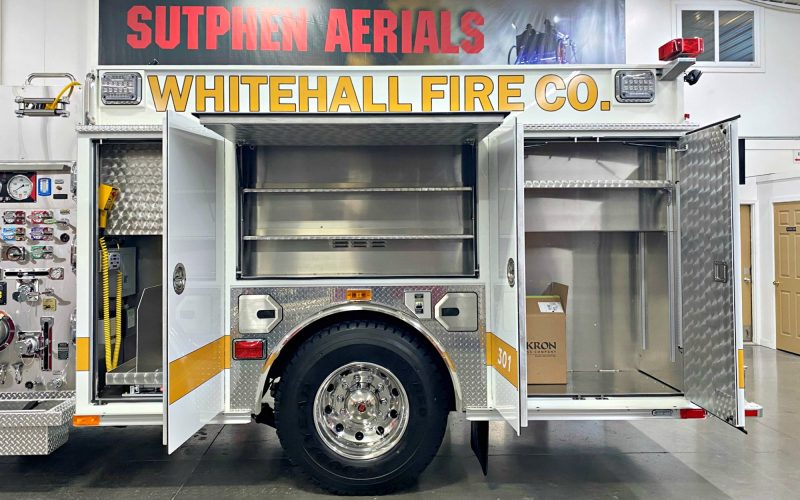

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • Over 215 cu. ft. Total Compartment Space

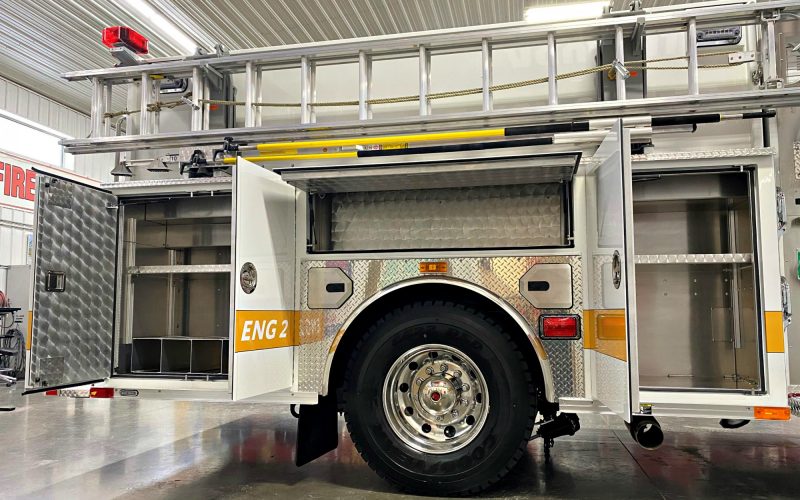

  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof &10’ Folding)
  • Body: PA-08 – 35/48 MID RGT (Elec Rack/BRKT)

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (2)
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Generator: Smart Power 10KW
  • Light Tower: Will Burt NS2.3-6000 w/ 4 FRC 1500-Watt Optimum Lamps
  • Whelen Freedom 81” Light Bar
  • Whelen McFled Beacons
  • FR Spectra Brow Lights
  • HiViz GESM Scene Lights
