Delivery Date:
05/24/2022
Department Name:
Travis County ESD #6
Department City / State:
Austin, TX

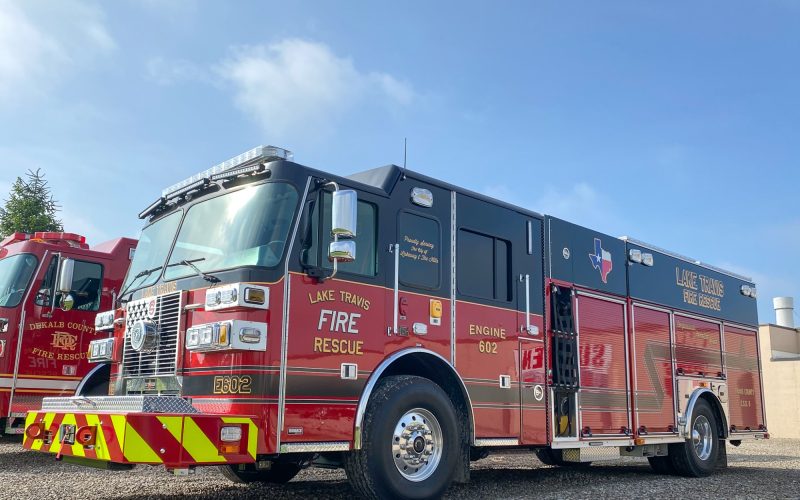

Sutphen Corporation – HS #6926

WHEELBASE: 216”

TRAVEL HEIGHT: 10’ – 4 ½”

TRAVEL LENGTH: 35’ – 3”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

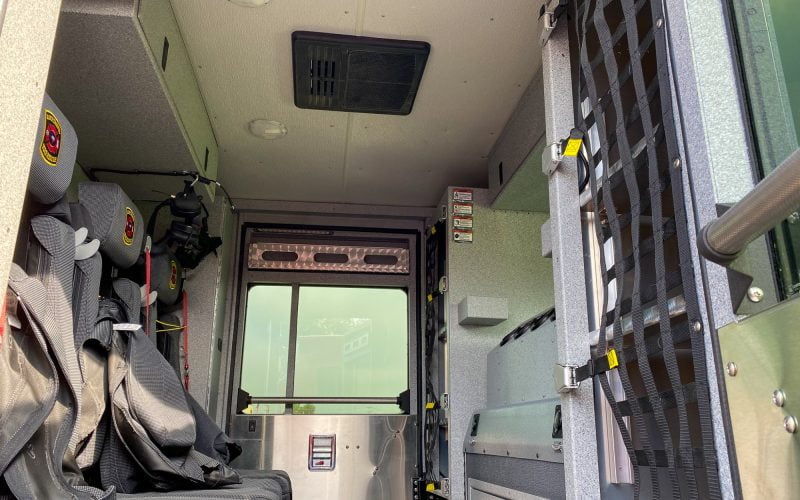

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails, Domex (110K PSI)
  • Front Axle and Suspension 21,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: C.E. Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS4000

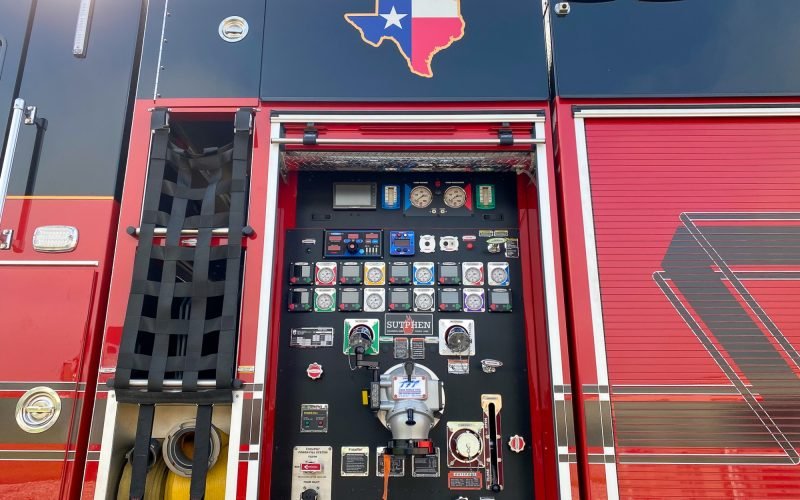

PUMP:                  Waterous

  • CSU-1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½ ” w/ Liftout Tray & (1) 2 ½” w/ Liftout Tray (SM)
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: Foampro 2002, 5.0 GPM

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Compartment Doors, Painted Finish
  • Over 295 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: Pel-24 24’ 2-Section & DRL-14 14’ Roof & 10’ Folding
  • Body: PA-19 Res 43/53 Ladder Chute Through Tank, Upper Hatch Body Compts

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360, Wired
  • Intercom System: Wireless, Setcom, 5 Position
  • Whelen Freedom IV (16) 72” LED Lightbar
  • Whelen Ion Trio Traffic Advisor
  • Firetech 72” 3-piece 12V Brow
  • Whelen M9V2 12V LED Scene
