Delivery Date:
03/09/2022
Department Name:
Taylorsville Spencer County Fire District
Department City / State:
Taylorsville, KY

Sutphen Corporation – HS #7008

Dealer –  Heritage Fire Equipment

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

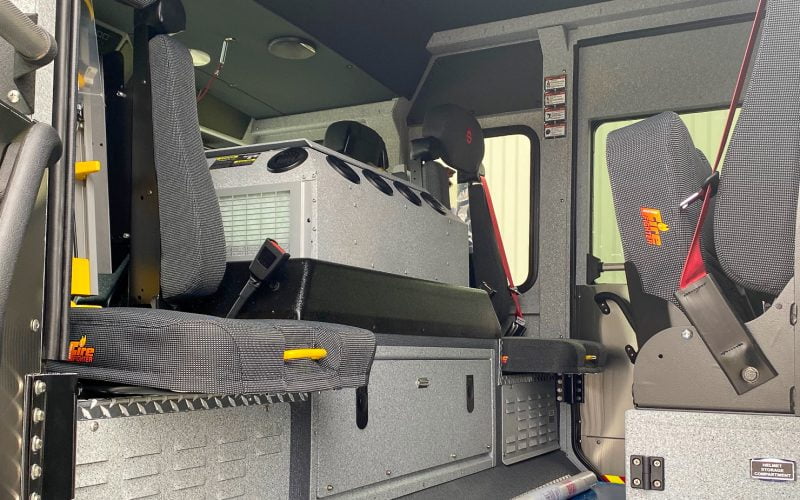

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QFLO-1250 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: FoamPro 2001, 2.6 GPM

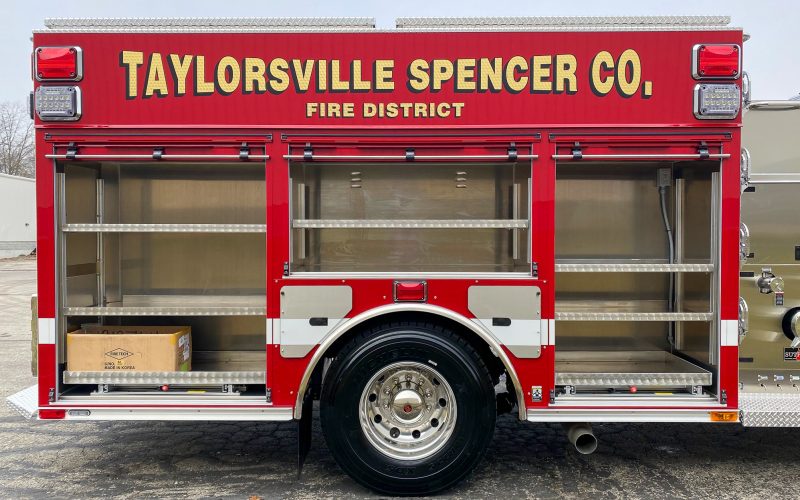

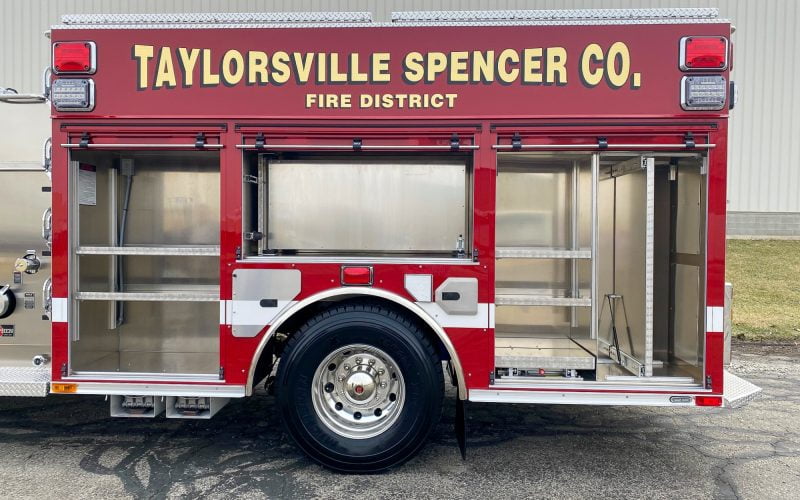

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Ladder Chute w/ Suction Hose Storage
  • Body: G9 – Aluminum 40/51 Ladders through the Tank

ADDITIONAL EQUIPMENT:

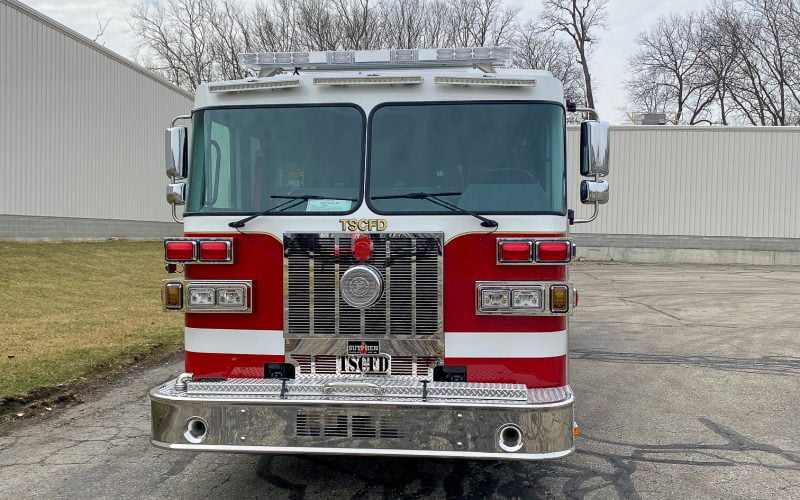

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Hi-Viz 72” Brow Light
  • Whelen Freedom LED Lightbar
  • FRC Spectra Telescopic Lights
  • FireTech Guardian Scene Lights
  • Whelen LED Traffic Advisor
