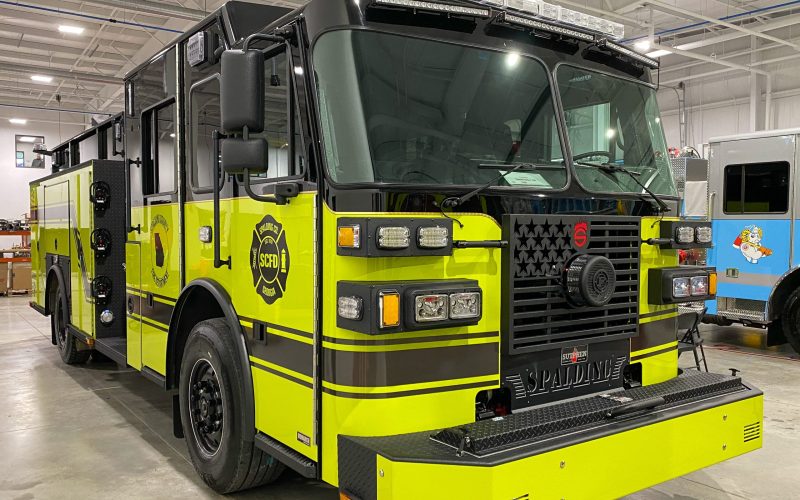

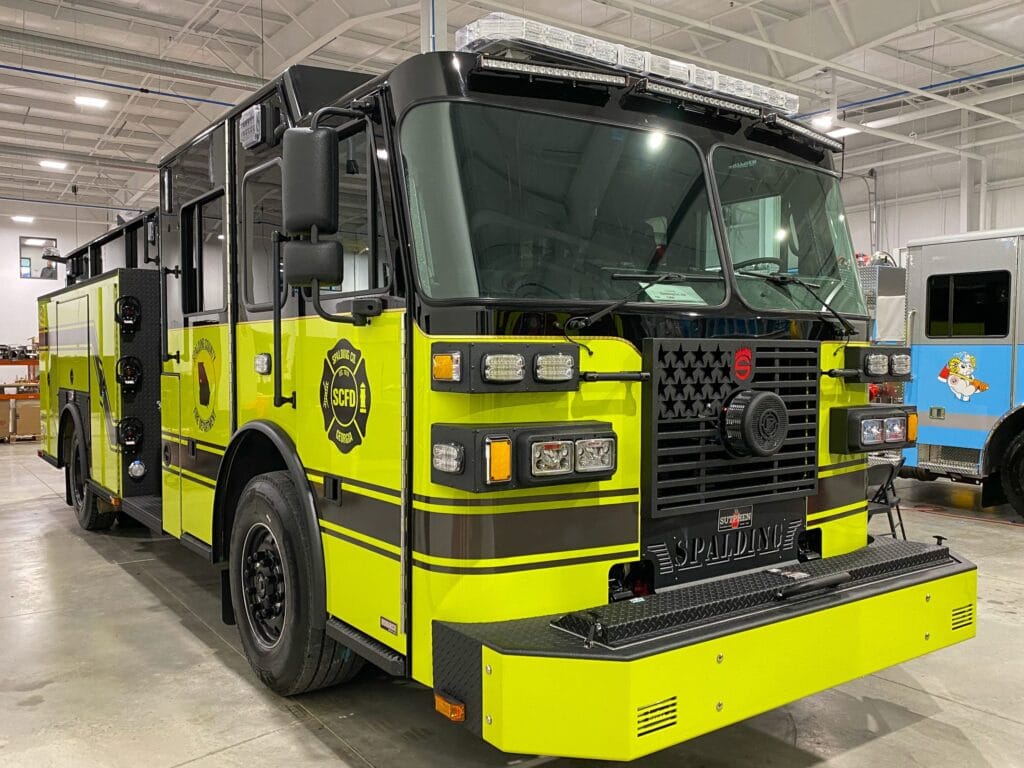

Delivery Date:
03/20/2024
Department Name:
Spalding County Fire Department
Department City / State:
Griffin, GA

Dealer – Williams Fire Apparatus

WHEELBASE: 208”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raise Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 27,000 lbs Leaf
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper w/ 2” Plumbing & (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Door
  • Over 220 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14′ Roof & 10′ Folding
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera (Wired)
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • FRC Spectra Telescopic Lights
  • Whelen L31 Red LED Beacons
  • FRC 900 LED Scene Lights
