Delivery Date:
07/15/2020
Department Name:
Remington Fire Department
Department City / State:
Remington, IN

Sutphen Corporation – HS #6566

Dealer – Herb Fire

WHEELBASE: 226”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 35’ – 2”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Waterous

  • CSU-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 294 Cu. Ft. Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
  • Body: G9-Alum 40/51

ADDITIONAL EQUIPMENT:

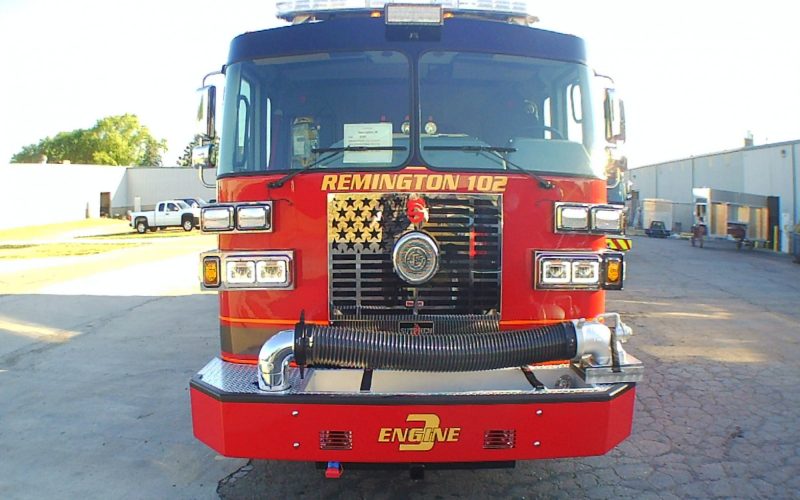

  • 24” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview 360
  • 10KW Smart Power Generator
  • 3 Bottle Compartments
  • FRC Spectra Brow Light
  • Whelen Freedom IV Lightbar
  • FR Spectra SPA260 Scene Lights
  • Whelen M9 Warning Lights
  • Whelen Ion LED Red Lights
