Delivery Date:
08/30/2019
Department Name:
Plain Township Fire Rescue
Department City / State:
Canton, OH

Sutphen Corporation – HS #6344

WHEEL BASE: 226”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 35’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

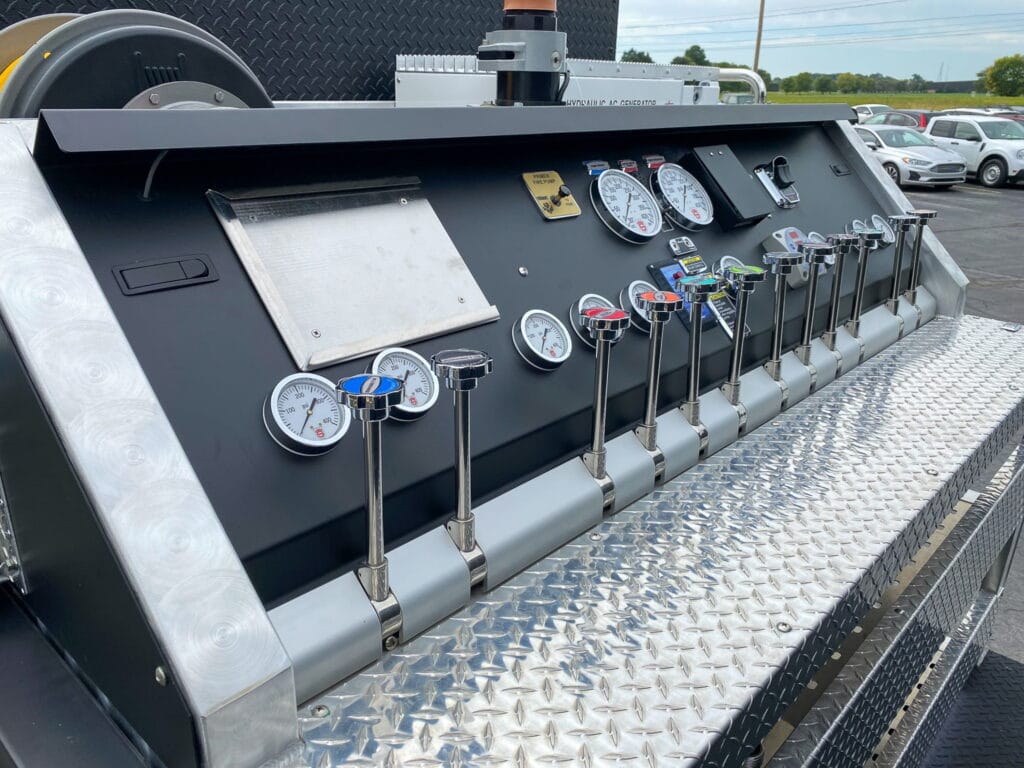

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (1) 3” Left, (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 1000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 266 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Back-Up Camera
  • Federal Q2B Siren, Grille Mount
  • Whelen PFH1 Brow Light, 12V
  • Whelen Freedom Mini LED Lightbar (3)
  • Whelen M9 Scene Light, LED
  • FRC Spectra LED Tele Lights
  • 6KW Smart Power Generator
