Delivery Date:
03/04/2020
Department Name:

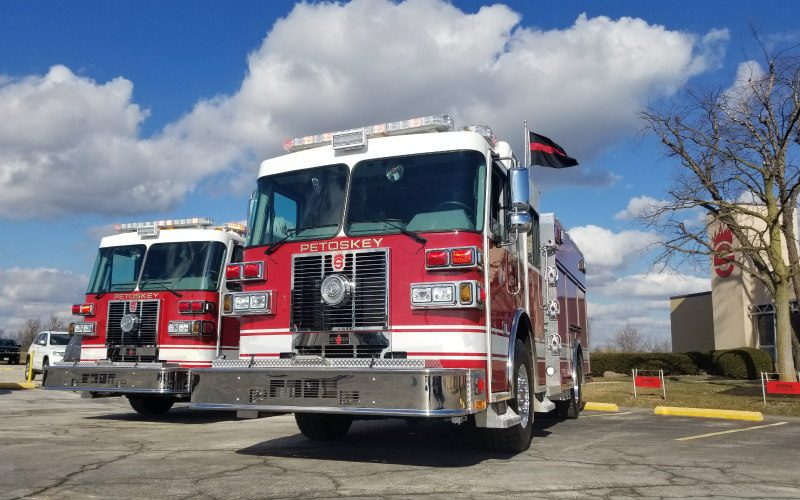

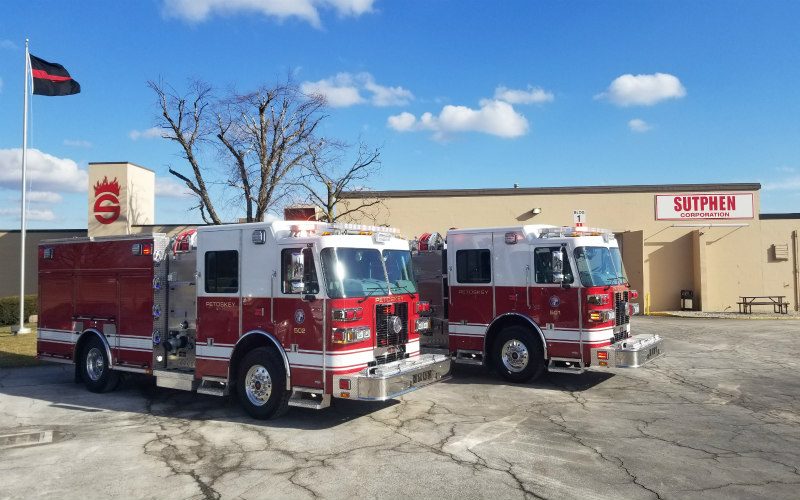

City of Petoskey
Department City / State:
Petoskey, MI

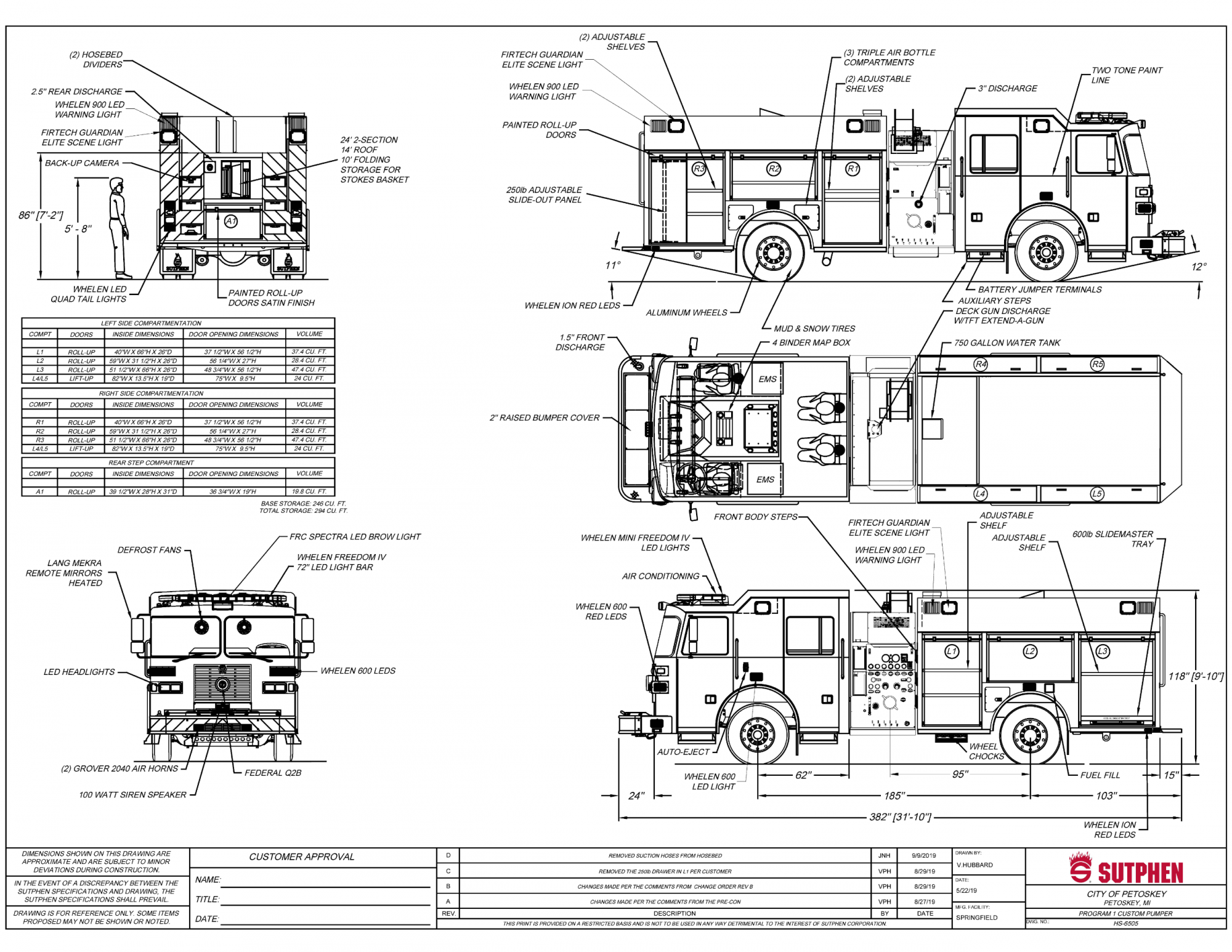

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Single Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” w/ Swivel
  • Speedlay: (2) 2” W/ Swivel and Poly lift-out trays
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chutes
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Back-up camera
  • Air Bottle Compartments (3)
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen 900 & 600 LED Warning Lights
  • Whelen Ion Red LED Lights
  • Firetech Guardian Elite Scene Light
