Delivery Date:
11/08/2023
Department Name:
Pedernales Fire Department
Department City / State:
Briarcliff, TX
Truck Type:
WHEELBASE: 196”
TRAVEL HEIGHT: 10’ – 8”
TRAVEL LENGTH: 32′ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: C.E. Niehoff 415 AMP
- Transmission: Allison Gen 5, EVS3000

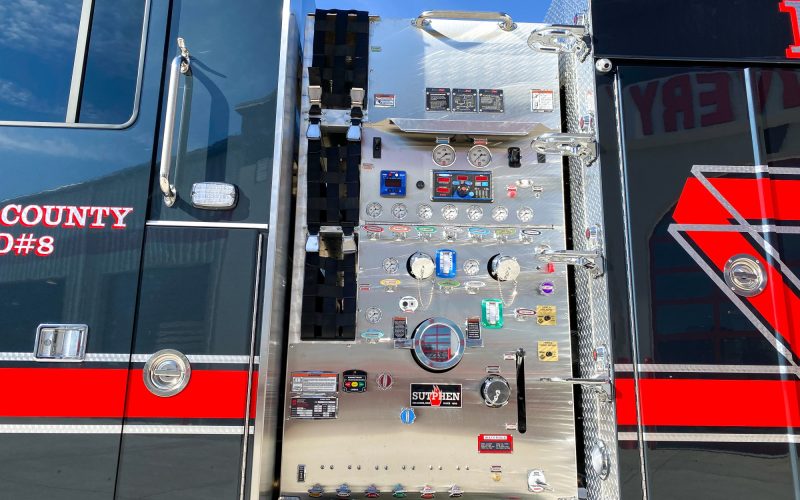

PUMP: Waterous
- S101 1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: FoamPro 2001, 2.6 GPM

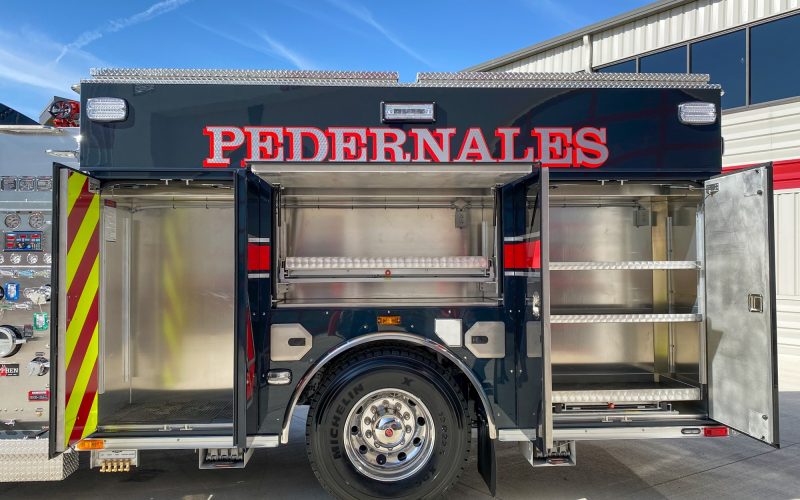

BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Sec & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera
- Intercom System: Wireless Setcom Single Radio
- Whelen Freedom LED Lightbar
- Whelen M9 Scene Lights
- Whelen LED Traffic Advisor
- Hi-Viz 72” Brow Light
- FRC Spectra LED Scene Light
