Delivery Date:
07/14/2025
Department Name:

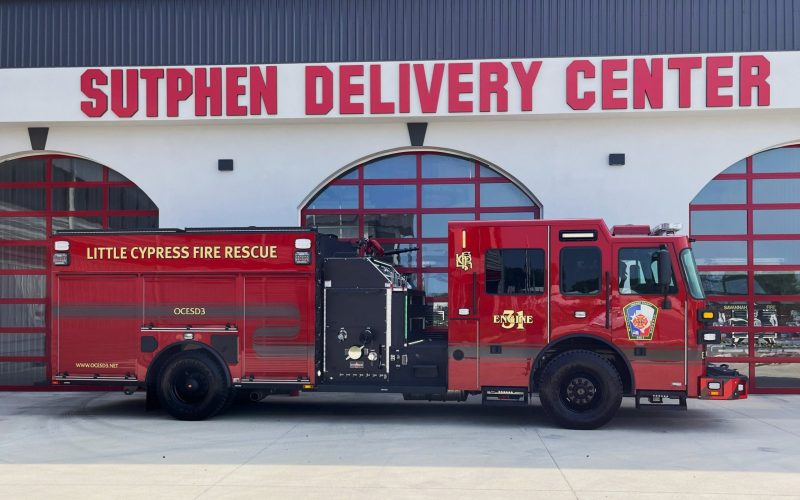

Orange County ESD #3
Department City / State:
Orange, TX
Truck Type:
Dealer – Texas Fire Apparatus
WHEELBASE: 227”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34’ – 6”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails, Single Axle (110K PSI)
- Front Axle and Suspension 21,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 27,000 lbs Leaf
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/ Right of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 1000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Mixed AMDOR Roll-Up and Hinged Compartment Doors
- Nearly 300 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladders Thru Tank
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Three Camera (Wired)
- Intercom System: FireCom 5100D, Single Radio, 4 Position
- Warning Light, Roto-Ray, LED
- FireTech 3-Piece 72” LED Brow Light
- Whelen Freedom IV 72” LED Light Bar
- FireTech FT-MB2.15 CPREC LED Scene Lights
- Whelen M6V2 Warning Lights
- FireTech Guardian FT-GSMJR LED Scene Lights
MONITOR:
- TFT XFC-42 Crossfire w/ Safety Flow w/ Quad Stack Tips & Stream Shaper
