Delivery Date:
11/12/2020
Department Name:
Oconee County Fire Rescue
Department City / State:
Watkinsville, GA

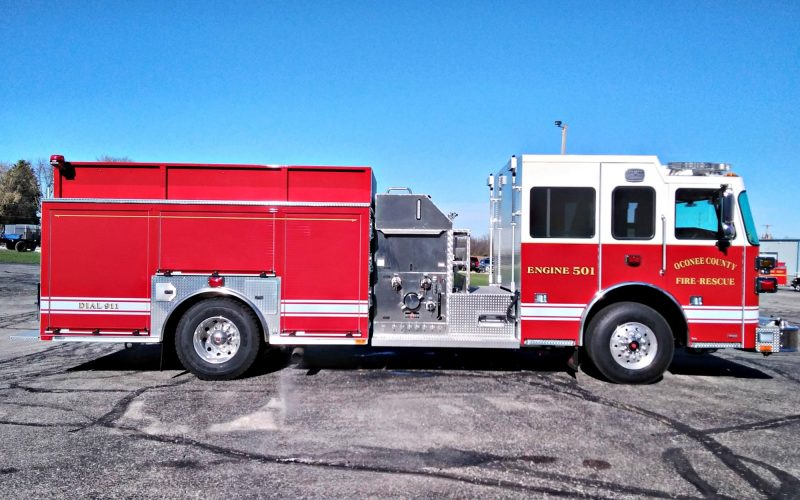

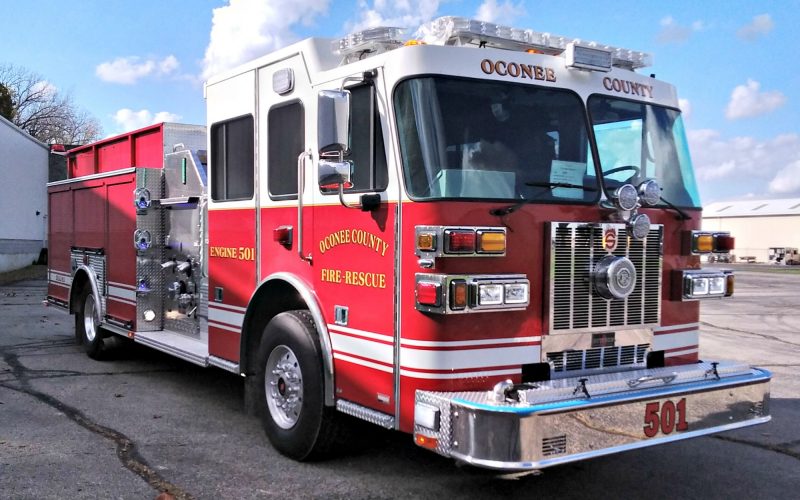

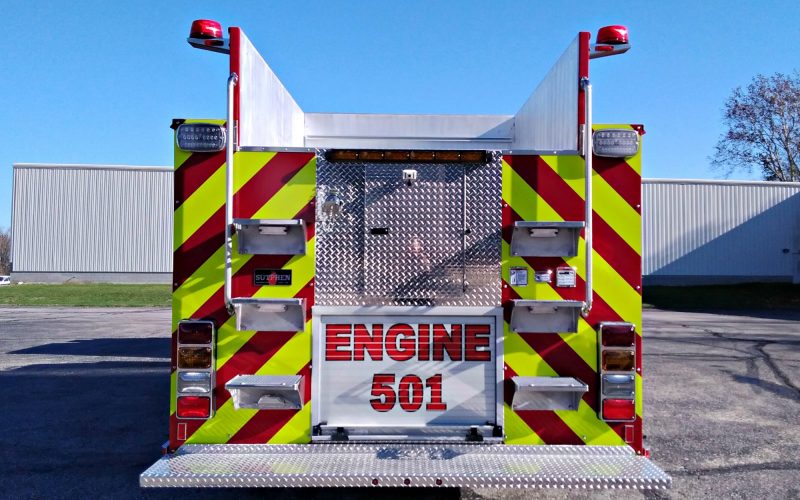

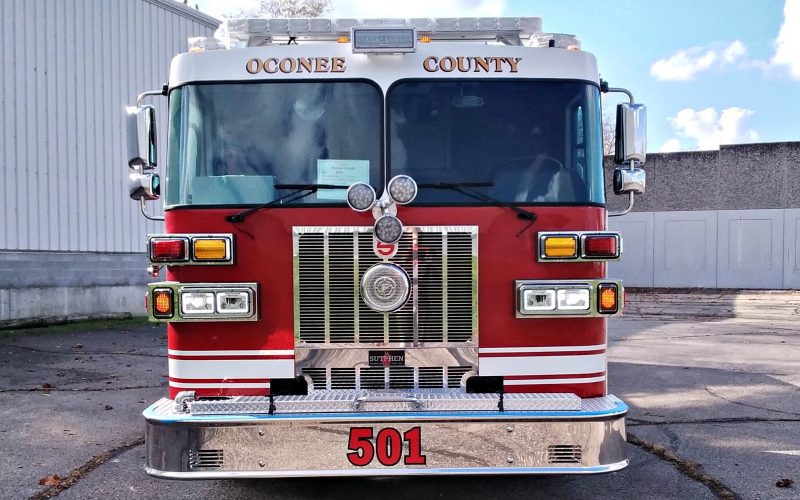

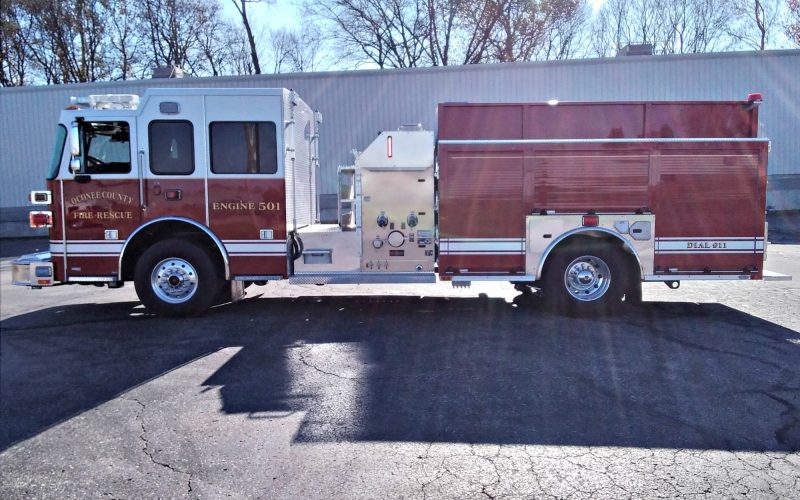

Sutphen Corporation – HS #6696

Dealer – Williams Fire Apparatus

WHEELBASE: 209”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

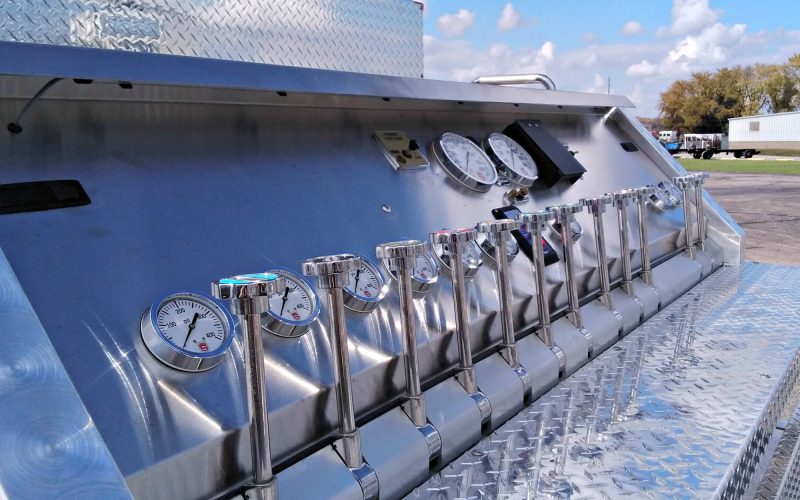

PUMP:                 Hale

  • QMAX-1500, Single Stage Pump Module
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Monitor: Akron 3423 Apollo
  • 1000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute
  • Body: G9-Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 2
  • (2) Triple Air Bottle Compartments
  • Roto-Ray Warning Light
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen Mini Freedom IV 21” LED
  • Whelen M9 Scene Light
  • Whelen LED Traffic Advisor
