Delivery Date:
06/16/2021
Department Name:
North Greenbush Fire District No. 1, NY
Department City / State:
Troy, NY

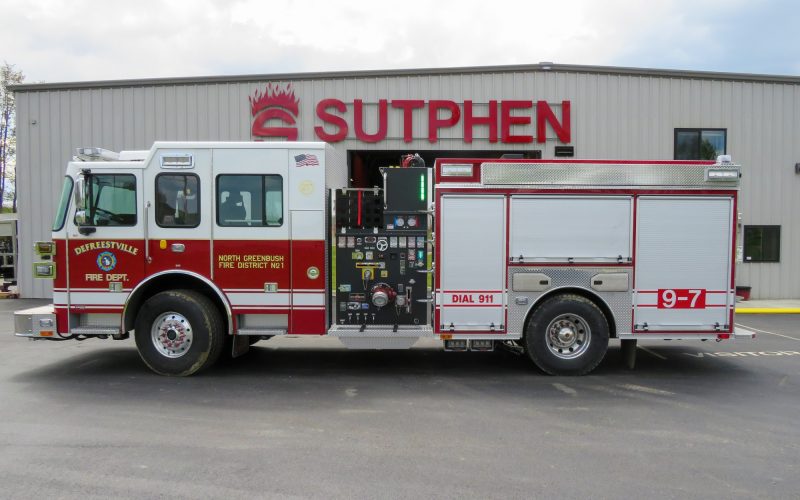

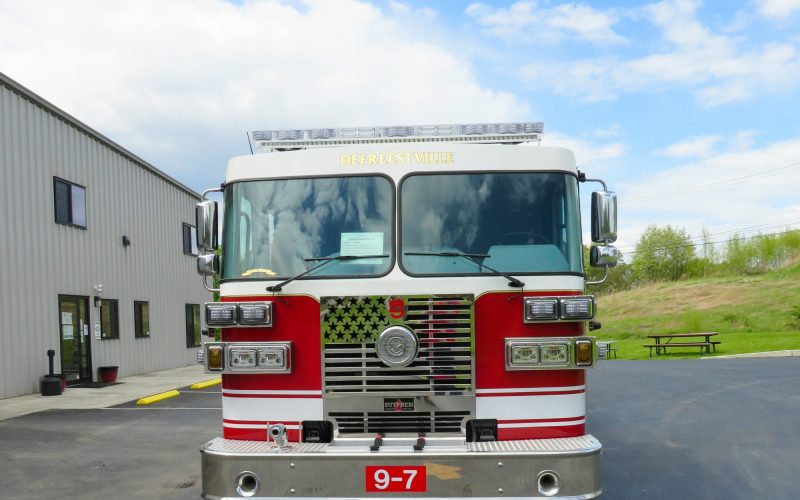

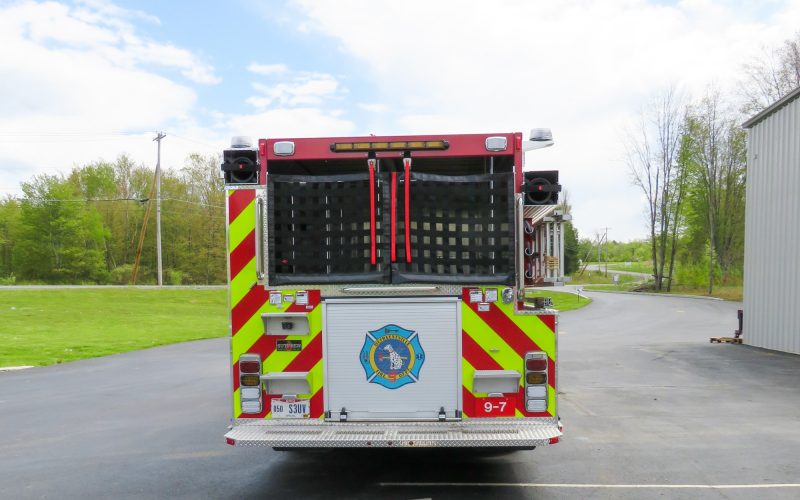

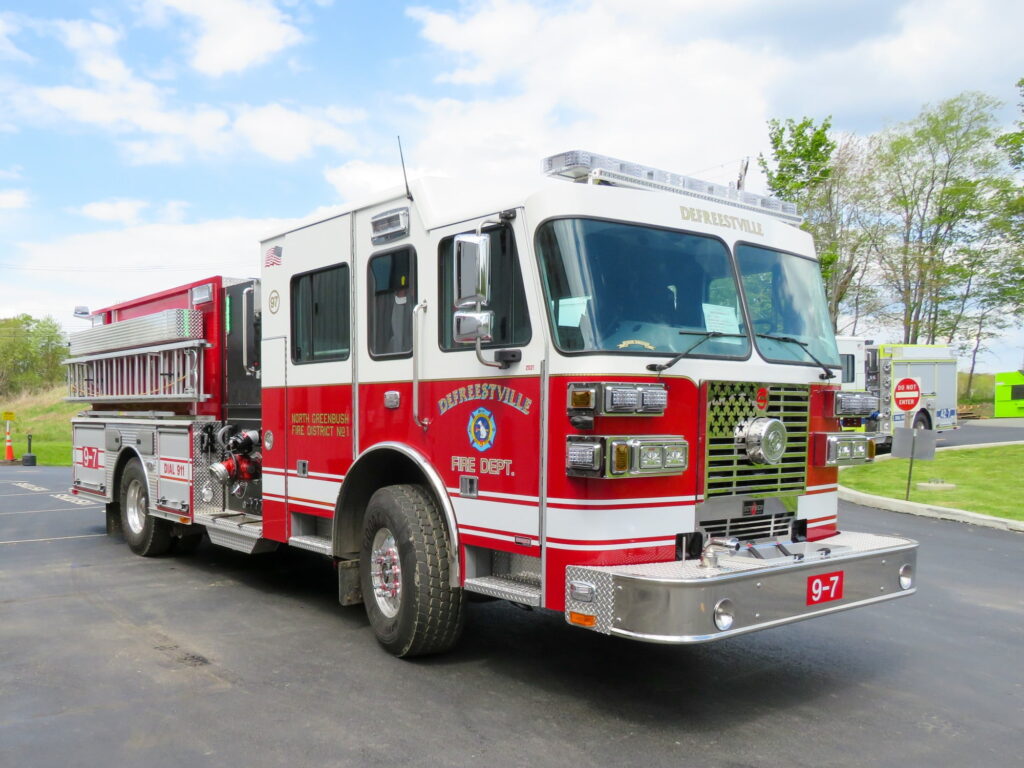

Sutphen Corporation – HS #6754

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 195”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” Vale-Piping 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 154 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Body: PA-11 RED 30/53 Low Right, Electric Rack

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Three Camera
  • Pike Pole Storage Tubes, Officer Side (3)
  • Whelen 81” Rota-Beam Lightbar
  • Whelen PFH2 Recessed Scene Lights (2)
  • Whelen PFP2 Scene Lights (4)
  • Whelen 36” Traffice Advisor
  • Fire Tech 72” Brow Light
