Delivery Date:
08/17/2022
Department Name:
Nichols Hills Fire Department
Department City / State:
Nichols Hills, OK
Truck Type:
Sutphen Corporation – HS #7098
Dealer – Heartland Fire Trucks
WHEELBASE: 208”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

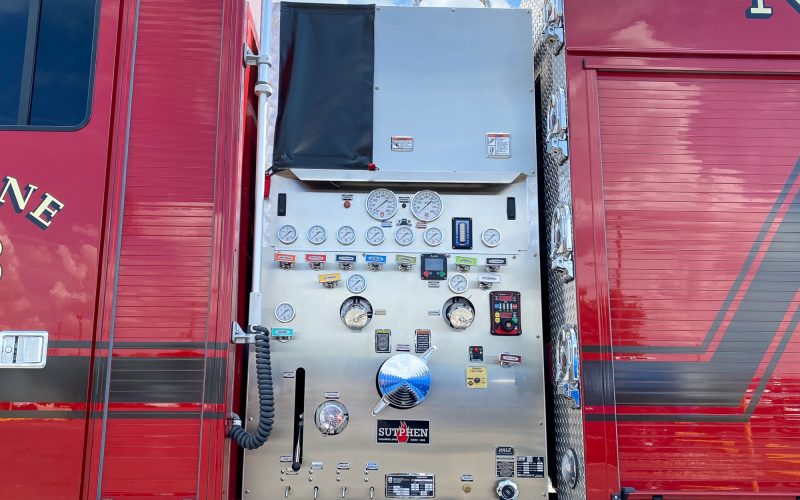

PUMP: Hale
- QMAX – 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 1000-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors, Painted

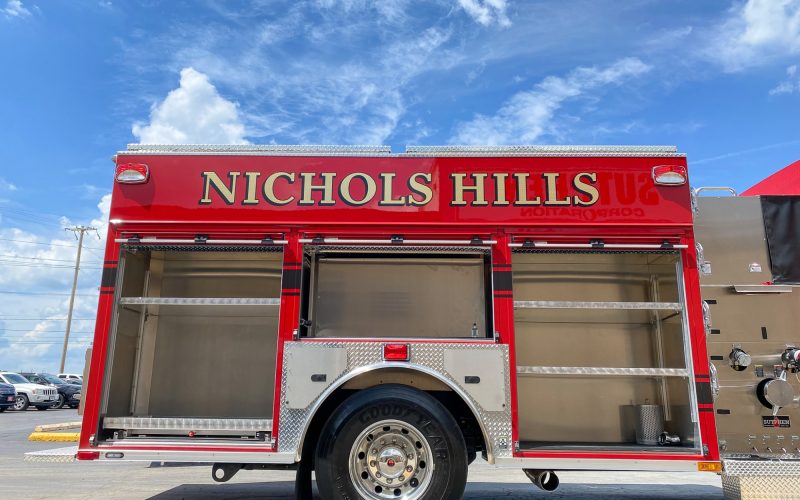

- Over 314 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: (1) PEL-24 24’ 2-section & (1) PRL-14 14’ Roof & (1) 10’ Folding
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Two Camera (Wired)
- FRC Spectra Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9V Red/Scene
- FRC Spectra Telescopic Lights
