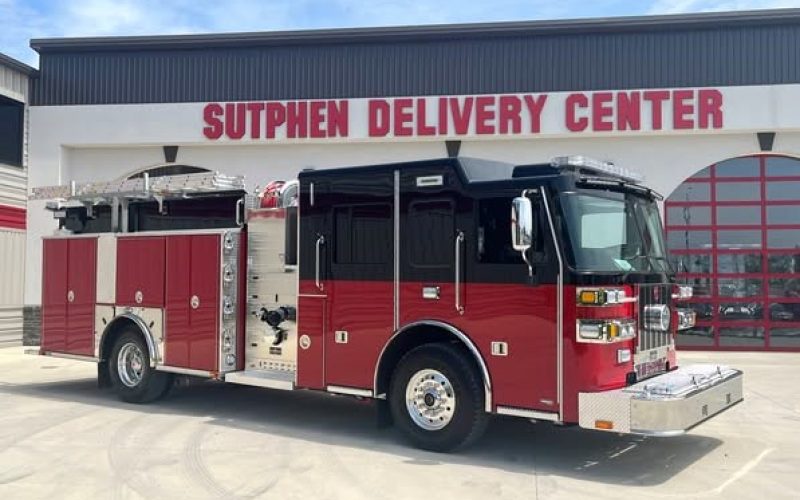

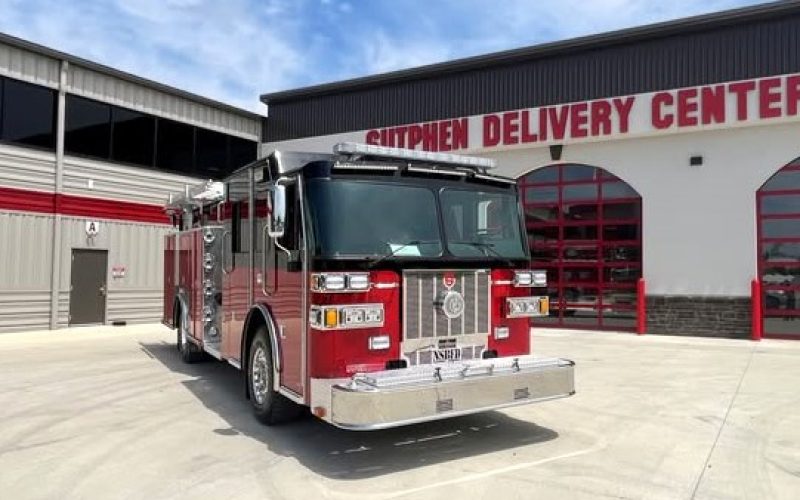

Custom Pumper – New Smyrna Beach Fire Department, FL

Dealer – South Florida Emergency Vehicles

WHEELBASE: 197”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33’ – 1”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
• Rear Axle and Suspension 24,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 420 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/ Right of Main Hosebed, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
• Crosslays: (2) 2” w/ 1 ½” Swivel
• 750-Gallon Water Tank
• 30-Gallon Foam Tank

BODY:                 Sutphen

• 3/16” Extruded Aluminum
• Mixed Hinged and AMDOR Roll-Up Compartment Doors
• Over 260 cu ft. Total Compartment Space
• Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
• Body: S3 – Alum 43/53 Hyd Lad Rack

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Whelen Freedom IV 72” LED Light Bar
• FireTech 3-Piece 72” 12V LED Brow Light
• FRC Spectra 12V LED Scene Lights
• Whelen L31 Rear Beacons
