Delivery Date:
09/12/2019
Department Name:
New Haven Fire Department
Department City / State:
New Haven, IN

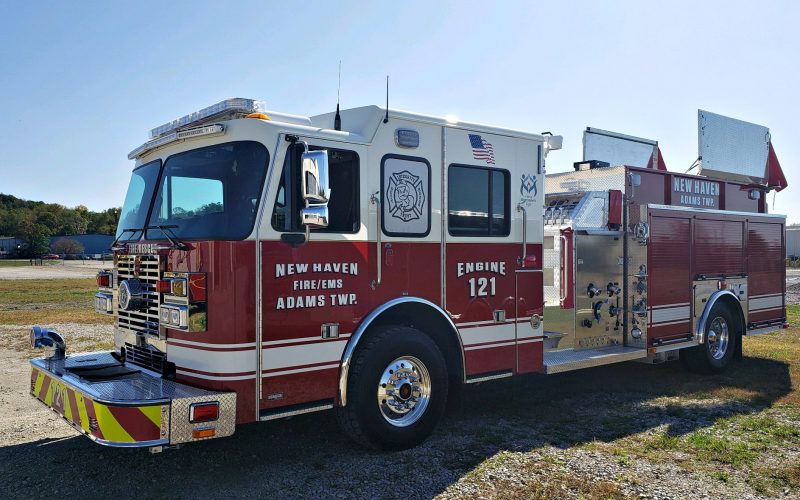

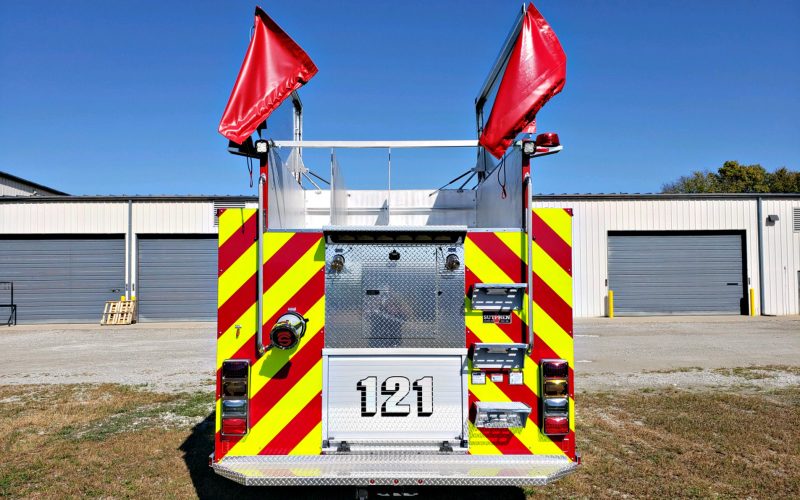

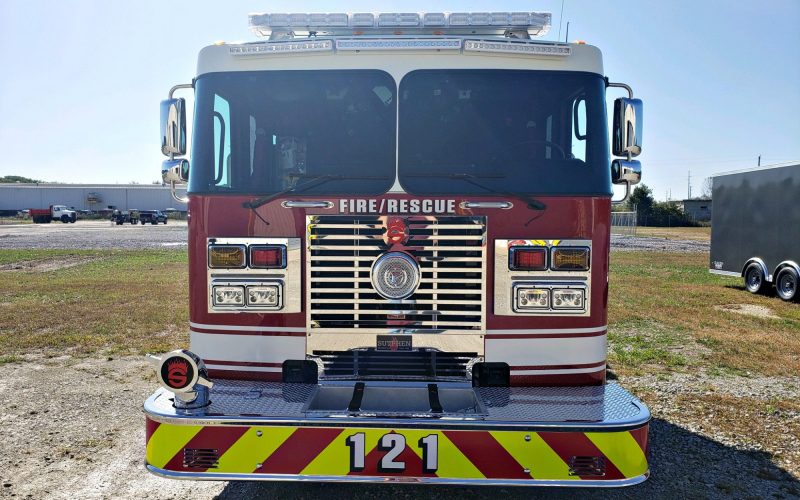

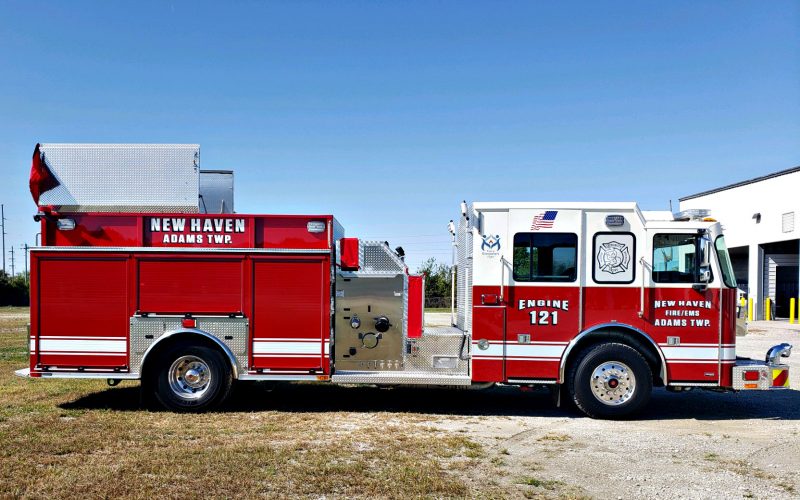

Sutphen Corporation – HS #6467

Dealer – Herb Fire Equipment

WHEEL BASE: 226”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 35’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

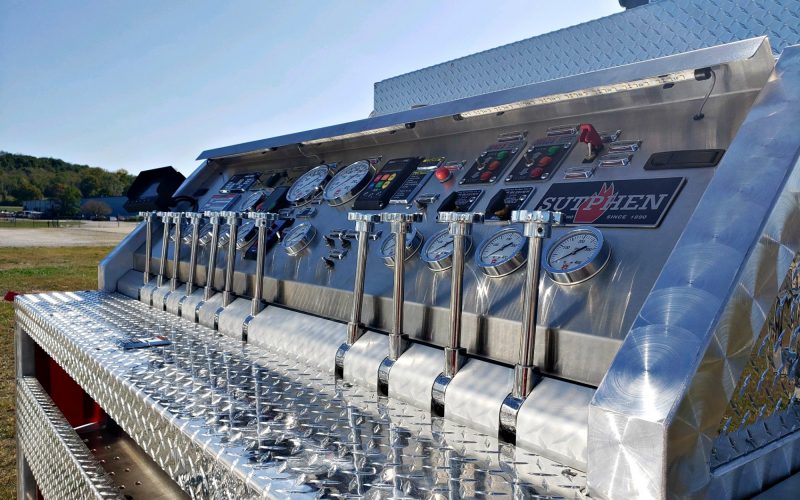

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Electric, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 1,000-Gallon Water Tank
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ 1 ½” Swivel

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene Lights
  • Whelen LED Traffic Advisor
  • Triple Air Bottle Compartments (3)
  • FRC Spectra Telescopic Lights
  • FireTech WL-200 LED Work Lights
  • 3-Piece Hi-Viz LED Brow Light
