Delivery Date:
06/25/2019
Department Name:
Milton Fire Department
Department City / State:
Milton, VT

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’ – 4”

TRAVEL LENGTH: 31’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

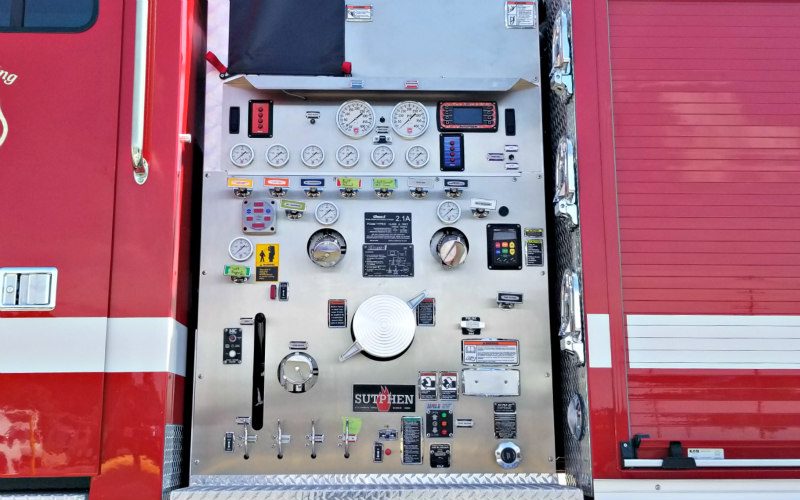

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1,500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 193 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Safety Vision SV-CLCD0-70, Camera System
  • Federal Q2B Siren, Frille Mount
  • 6KW Smart Power Generator
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen LED Traffic Advisor
  • Light Tower, Command Light Knight KL450, 3000W
