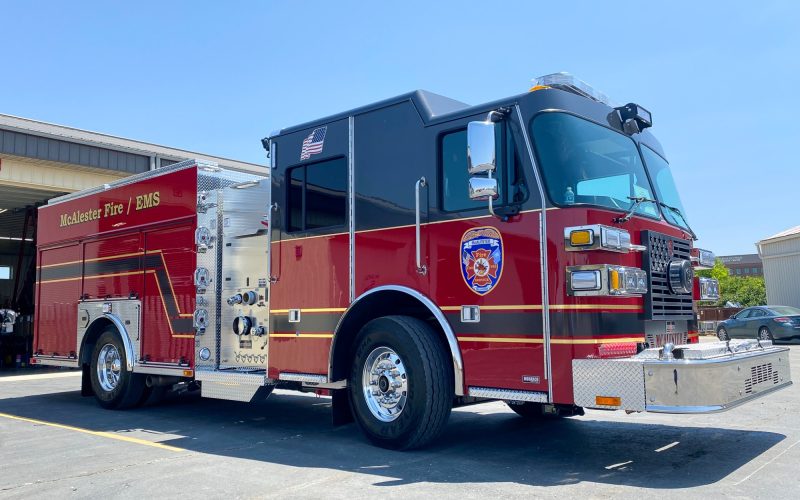

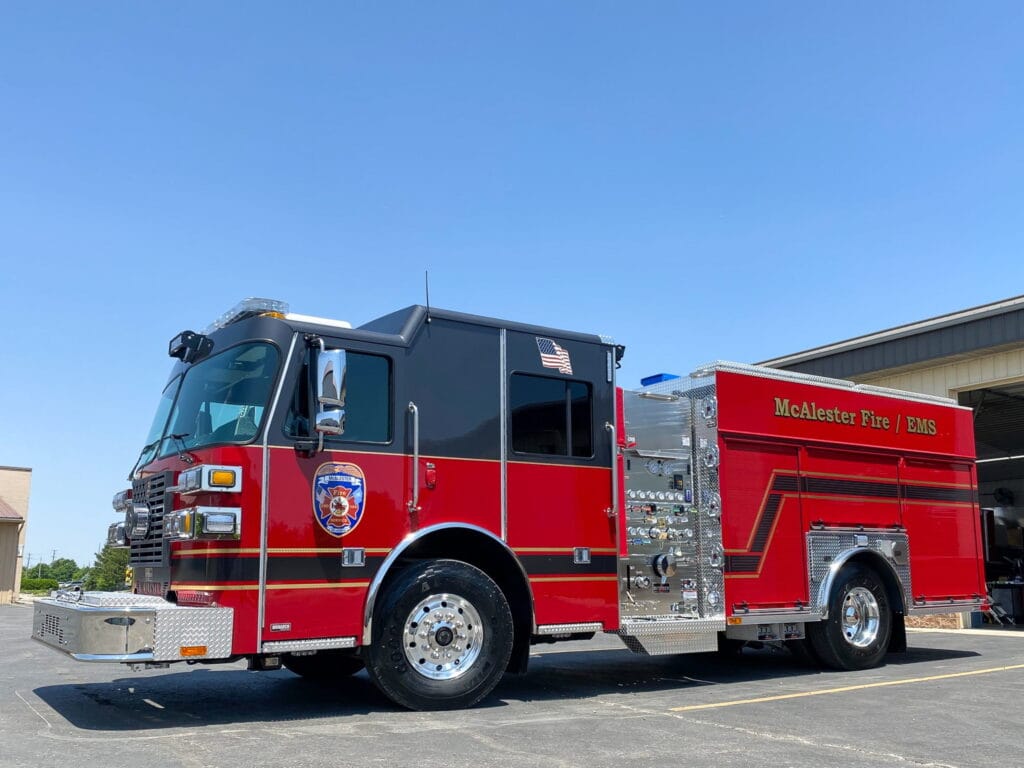

Delivery Date:
05/24/2023
Department Name:
McAlester Fire Department
Department City / State:
McAlester, OK

Sutphen Corporation – HS #7222

Dealer –  Heartland Fire Trucks

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31′ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 19,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-XS-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • 1,000-Gallon Water Tank

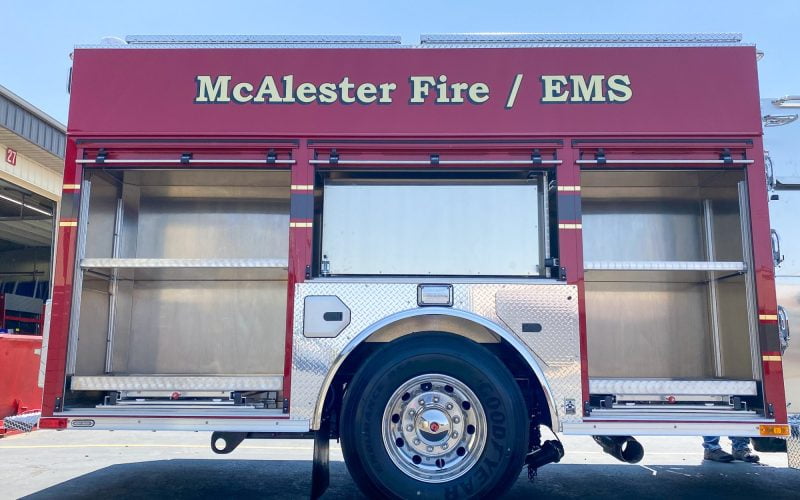

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • AMDOR Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: G9 – Alum 40/51 Ladder Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Safety Vision SV-CLCD0-70
  • Whelen PFH2 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen PFH2 12V Telescopic Lights
